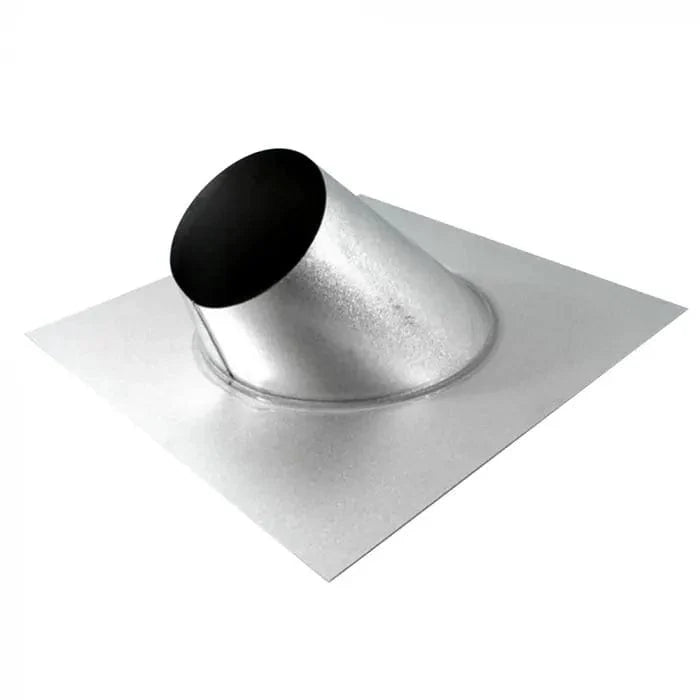

Astria 6/12-10/12 Pitch Roof for Wood-Burning Chimney System 6SPF10

Astria 6/12-10/12 Pitch Roof for Wood-Burning Chimney System 6SPF10 Product Details

What is the function of the Astria 6/12-10/12 Pitch Roof component in a wood-burning chimney system, and how does it ensure proper installation and performance on roofs with varying pitches?

The Astria 6/12-10/12 Pitch Roof component is designed to accommodate roofs with pitches between 6/12 and 10/12 in a wood-burning chimney system. It ensures proper installation by providing a compatible and secure connection between the chimney pipe and the roof. This component helps maintain a watertight seal and correct alignment, preventing leaks and ensuring the chimney system performs efficiently regardless of the roof’s pitch. It adapts to different angles, ensuring a stable and safe installation.

Notes:

• The pipe overlaps 1-1/2" when joined together; therefore, the Assembled length is 1-1/2" less than the listed length.

Astria Pitch Roof Key Features

• 6" diameter chimney system components and accessories
• Snap-Lock tab connection design for easy and secure connections
• UL 103HT / ULC-S629 listed-2100° intermittent, 1000° continuous use
• 430 stainless steel inner flue and outer casing
• Continuous laser welded flue and casing
• 1-1/2" ceramic fiber blanketed insulation
• 2" clearance to combustibles
• Limited lifetime warranty

Specifications for Astria 6/12-10/12 Pitch Roof for Wood-Burning Chimney System

• Model: 6SPF10
• Inner Diameter: 6-inches
• Outer Diameter: 9-inches
