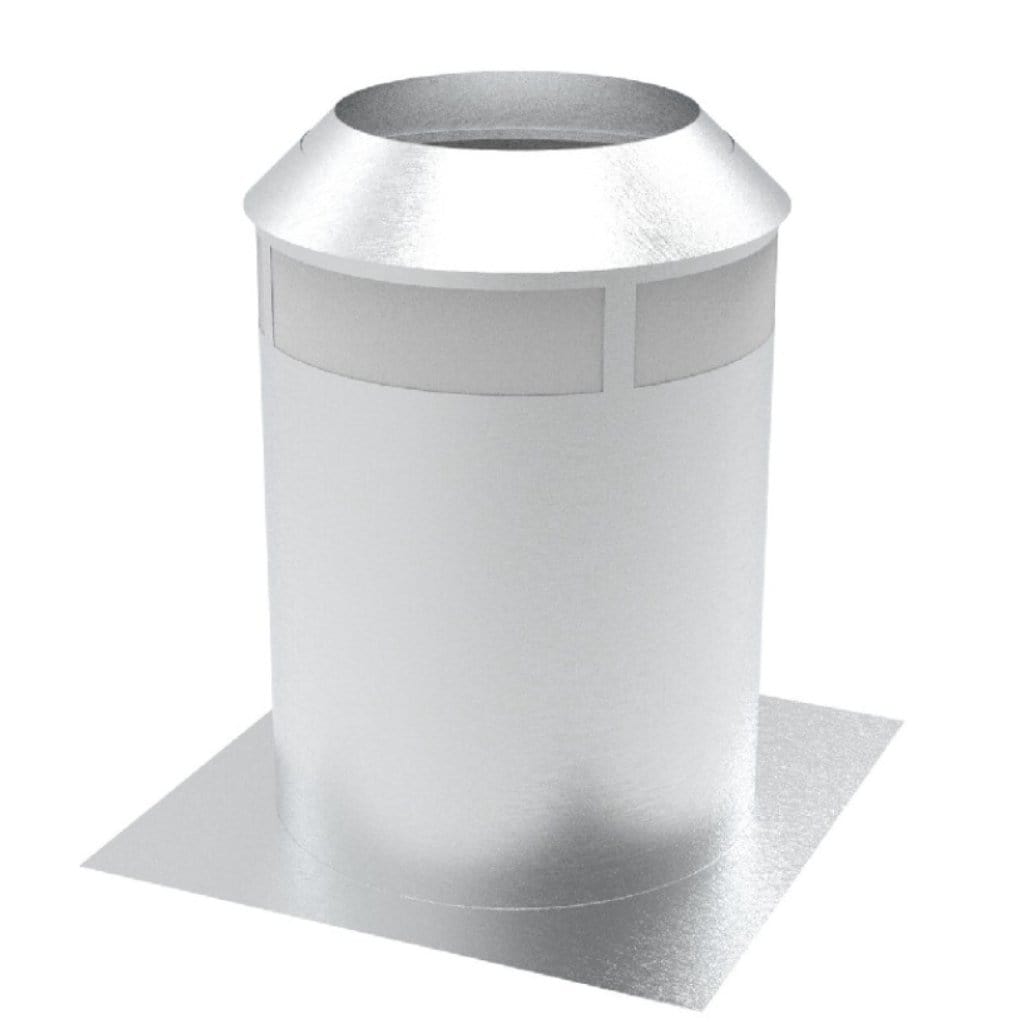

Astria 6-Inch Diameter Wood Burning Insulation Shield 6SPIS

Astria 6-Inch Diameter Wood Burning Insulation Shield 6SPIS Product Details

What are the key benefits of the Astria 6-Inch Diameter Wood Burning Insulation Shield for chimney systems, and how does it enhance safety and efficiency in the installation of wood-burning fireplaces?

The Astria 6-Inch Diameter Wood Burning Insulation Shield enhances safety and efficiency in wood-burning fireplace installations by providing crucial thermal protection. It prevents heat from escaping the chimney pipe, which minimizes the risk of overheating and potential fire hazards in adjacent materials. Additionally, it helps maintain optimal flue temperature, improving the draft and overall efficiency of the fireplace. By insulating the chimney system, the shield ensures compliance with safety codes and prolongs the lifespan of the chimney components, contributing to a safer and more efficient fireplace operation.

Notes:

• The pipe overlaps 1-1/2" when joined together; therefore, the Assembled length is 1-1/2" less than the listed length.

What's Included

• Insulation Shield

Astria Insulation Shield Key Features

• 6" diameter chimney system components and accessories
• Snap-Lock tab connection design for easy and secure connections
• UL 103HT / ULC-S629 listed-2100° intermittent, 1000° continuous use
• 430 stainless steel inner flue and outer casing
• Continuous laser welded flue and casing
• 1-1/2" ceramic fiber blanketed insulation
• 2" clearance to combustibles
• Limited lifetime warranty.

Specifications for Astria 6-Inch Diameter Wood Burning Insulation Shield

• Model: 6SPIS
• Inner Diameter: 6-inches
• Outer Diameter: 9-inches

Manuals for Astria 6-Inch Diameter Wood Burning Insulation Shield 6SPIS

• Installation Manual
• Snap-Pak Smart Sheet
