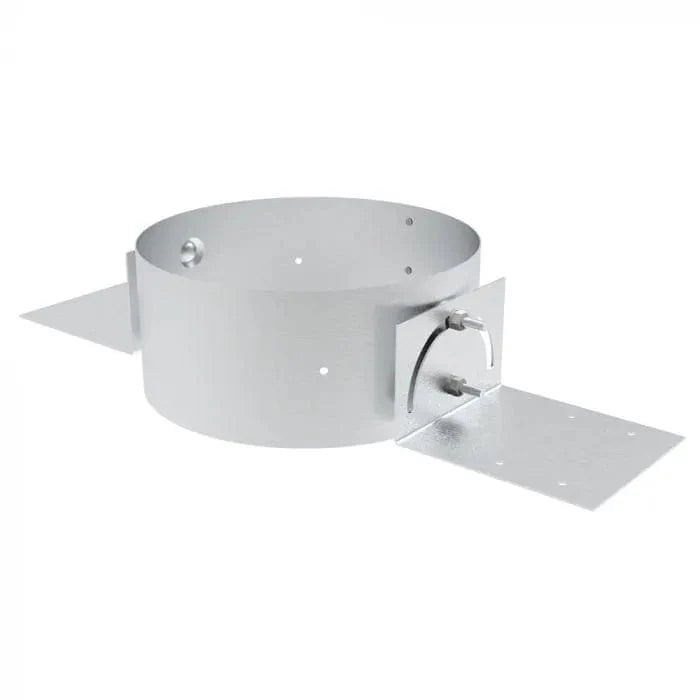

Astria Adjustable Support for Snap-Pak 6-inch Wood-Burning Chimney System 6SPAS

Astria Adjustable Support for Snap-Pak 6-inch Wood-Burning Chimney System 6SPAS Product Details

What role does the Astria Support Band play in the Snap-Pak 6-inch wood-burning chimney system, and how does it contribute to the structural stability and proper alignment of the chimney components?

The Astria Support Band in the Snap-Pak 6-inch wood-burning chimney system ensures structural stability by securely holding the chimney sections together. It prevents misalignment and shifting during installation and operation, helping maintain proper airflow and safety. By reinforcing the chimney's alignment, the support band contributes to the overall durability and efficiency of the system, ensuring long-term reliable performance in wood-burning applications.

Notes:

• The pipe overlaps 1-1/2" when joined together; therefore, the Assembled length is 1-1/2" less than the listed length.

What's Included

• Adjustable Support

Astria Adjustable Support Key Features

• 6" diameter chimney system components and accessories
• Snap-Lock tab connection design for easy and secure connections
• UL 103HT / ULC-S629 listed-2100° intermittent, 1000° continuous use
• 430 stainless steel inner flue and outer casing
• Continuous laser welded flue and casing
• 1-1/2" ceramic fiber blanketed insulation
• 2" clearance to combustibles
• Limited lifetime warranty

Specifications for Astria Adjustable Support for Snap-Pak 6-inch Wood-Burning Chimney System

• Model: 6SPAS
• Inner Diameter: 6-inches
• Outer Diameter: 9-inches
