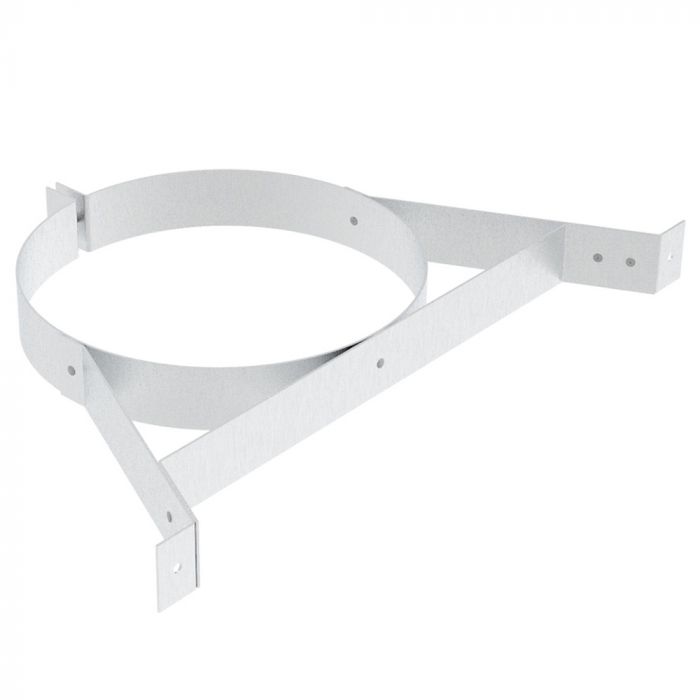

Astria Support Band for Snap-Pak 6-inch Wood-Burning Chimney System 6SPSB

Astria Support Band for Snap-Pak 6-inch Wood-Burning Chimney System 6SPSB Product Details

What role does the Astria Support Band play in the Snap-Pak 6-inch wood-burning chimney system, and how does it contribute to the structural stability and proper alignment of the chimney components?

The Astria Support Band in the Snap-Pak 6-inch wood-burning chimney system plays a crucial role in maintaining the structural stability and proper alignment of the chimney components. It securely holds the chimney sections in place, preventing shifting or misalignment that could compromise performance or safety. By providing additional support to the chimney stack, the support band helps distribute the weight evenly and ensure the system remains stable, contributing to a safe and efficient operation.

Notes:

• The pipe overlaps 1-1/2" when joined together; therefore, therefore Assembled length is 1-1/2" less than the listed length.

What's Included

• Support Band

Astria Support Band Key Features

• 6" diameter chimney system components and accessories
• Snap-Lock tab connection design for easy and secure connections
• UL 103HT / ULC-S629 listed-2100° intermittent, 1000° continuous use
• 430 stainless steel inner flue and outer casing
• Continuous laser welded flue and casing
• 1-1/2" ceramic fiber blanketed insulation
• 2" clearance to combustibles
• Limited lifetime warranty

Specifications for Astria Support Band for Snap-Pak 6-inch Wood-Burning Chimney System

• Model: 6SPSB
• Inner Diameter: 6-inches
• Outer Diameter: 9-inches
