Bromic Heating
Bromic Heating Dimmer Control for Eclipse Smart-Heat Electric Pendant Heater
Bromic Heating Dimmer Control for Eclipse Smart-Heat Electric Pendant Heater
SKU:BH3230007-1
Couldn't load pickup availability
The Bromic Heating Wireless Dimmer Controller can quickly dim the lighting and heating output over a percentage gradient to create the perfect ambience – every time. Control your heat output from high to low at 0%, 33%, 66% and 100%. Lights can be dimmed up or down in 1% increments.

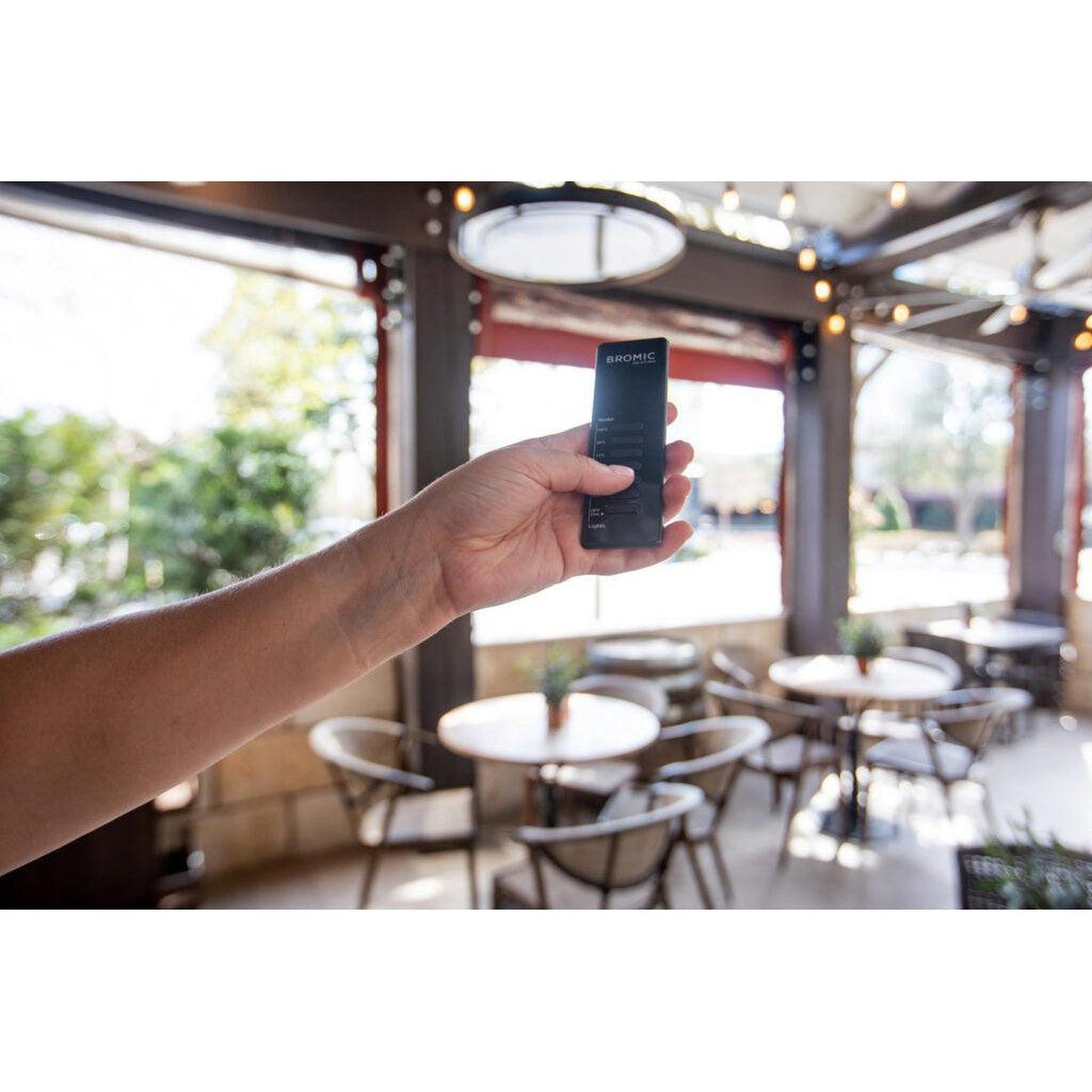

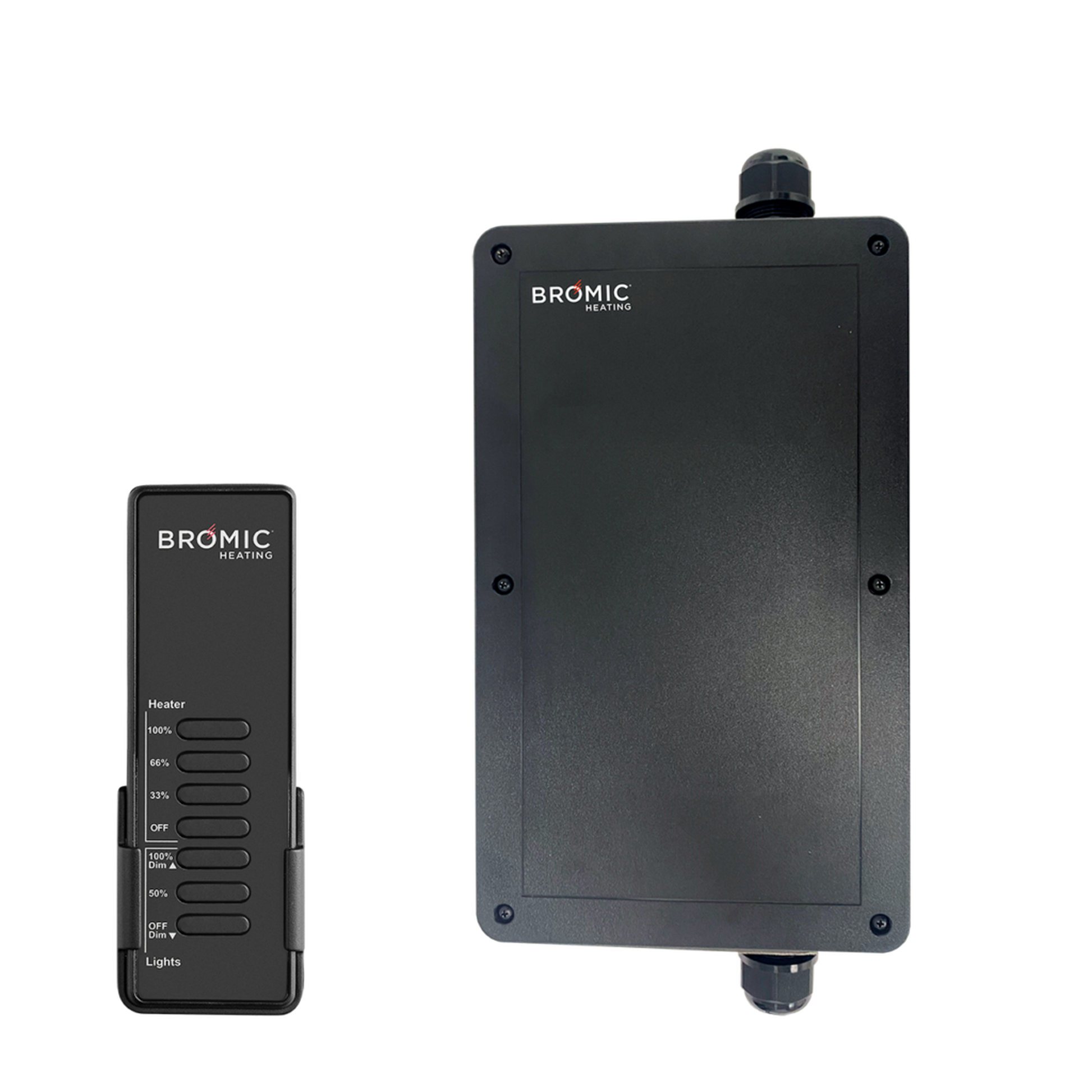

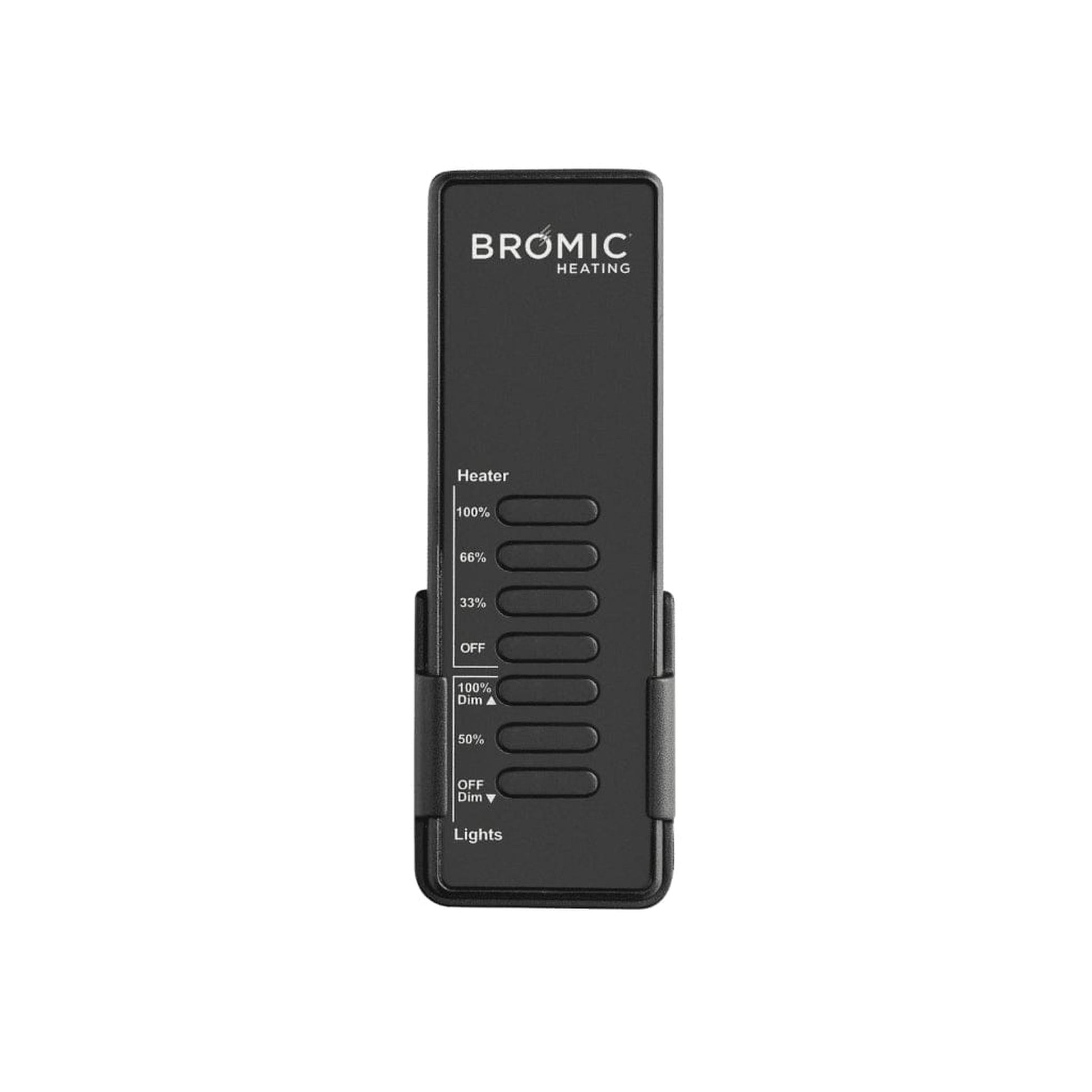

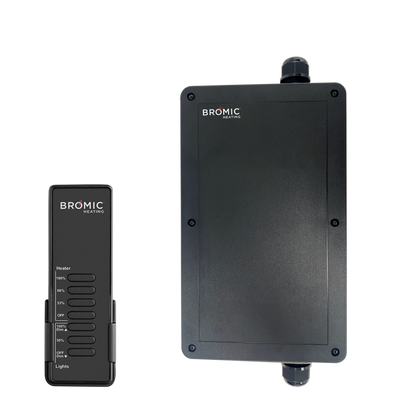

Set up the perfect ambience with the Bromic Eclipse Dimmer Controller and wireless Remote. Suitable for our Eclipse Pendant and Portable series, the Bromic Eclipse Dimmer Controller and Remote can quickly dim the lighting in 1% increments and the heating output (0%, 33%, 66%, 100%) to create the perfect ambience – every time.
What's Included
- Dimmer Control
Features
- For use with Bromic Heating Eclipse Smart-Heat Electric Pendant Heater
Specifications
Item Number | BH3230007-1 |
Power Supply | 220/240VAC, 17A min, Single Phase |
Channel 1 | Element 1 – 66% Heat Setting |
Channel 2 | Element 2 – 33% Heat Setting |
Fuse Protection | 20A (FWC high speed) |
Reception Frequency | 916MHz |
Operating Temperature Range | -4 to 122°F |
Dimensions | 11.5”x 6.2” x 3.15” |
Protection Class | IP54 |
Warranty
![]() | Bromic offers warranty applicable to the original owner only. In accordance with the warranty terms and conditions specified below: |
Bromic Heating or its agent (the warrantor) will furnish the original owner for both commercial and residential applications;
- a replacement Bromic Heating heater or
- a replacement part for any component part which fails.
Product | Controllers |
Warranty | 1 Year Parts |
