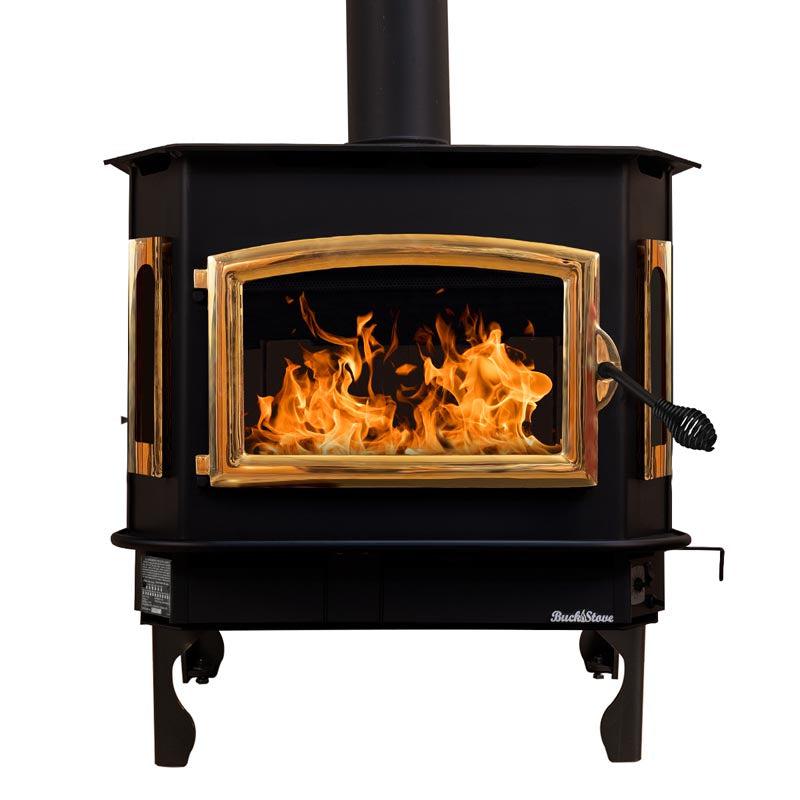

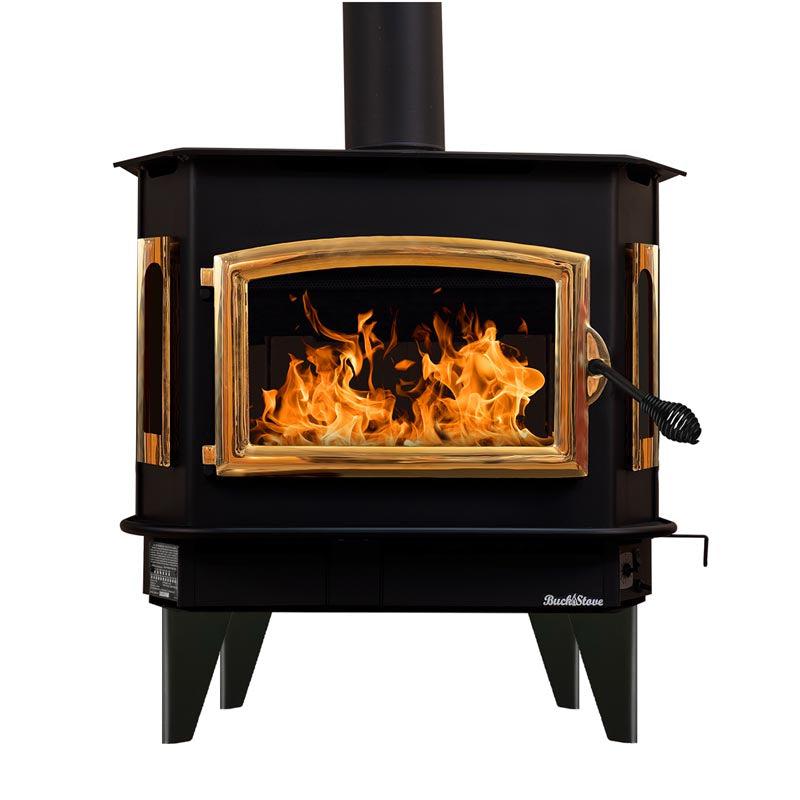

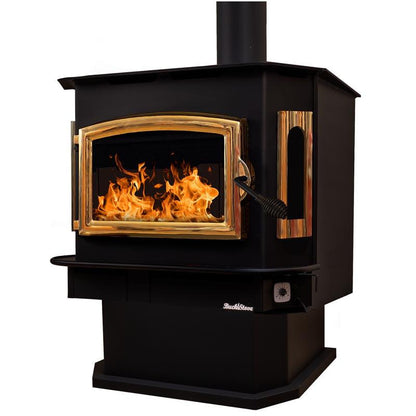

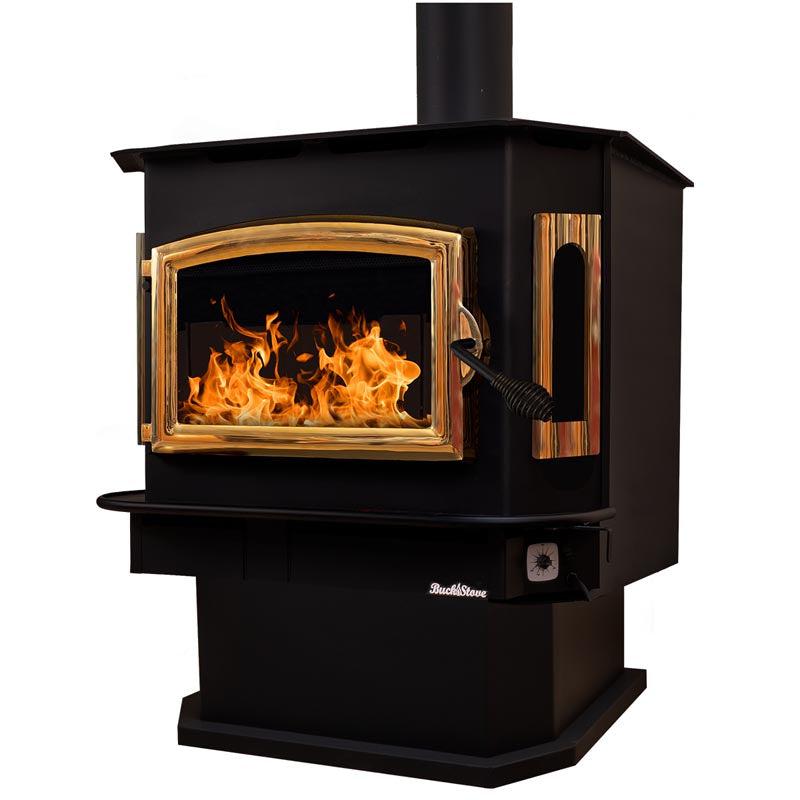

Buck Stove Bay Series Model 81 Non-Catalytic and Blower Assembly Standard Wood Burning Stove With Gold Door Finish
Buck Stove Bay Series Model 81 Non-Catalytic and Blower Assembly Standard Wood Burning Stove With Gold Door Finish
SKU:FP 81G
Couldn't load pickup availability
Crafted in a traditional time-honored design, this non-catalytic series features a dual top heat exchanger and an oversized glass door with an air wash system to minimize cleaning. Optional blower systems are available for each unit.
Model 81 Wood Stove

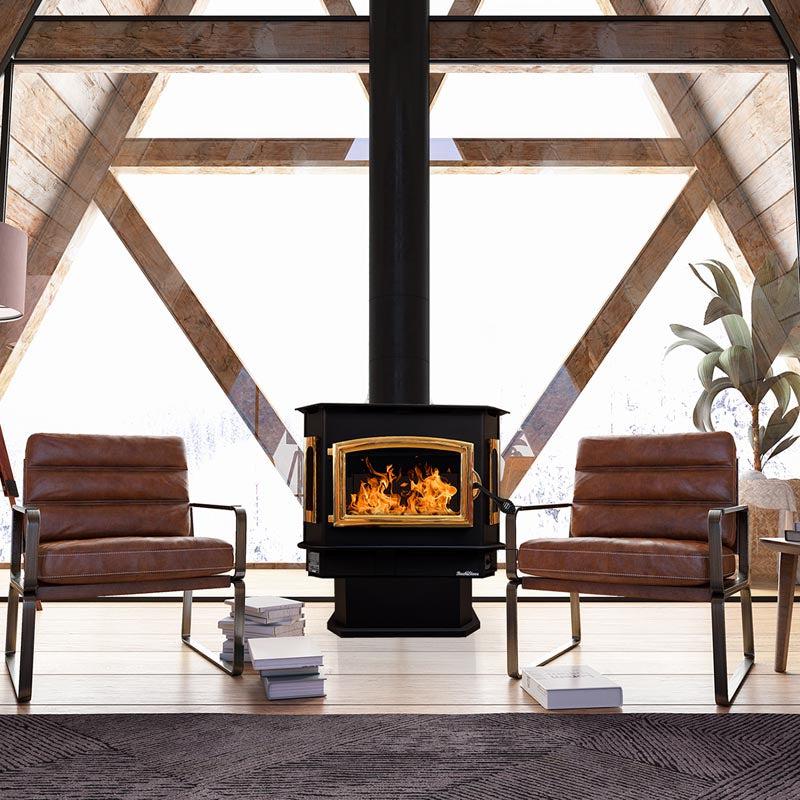

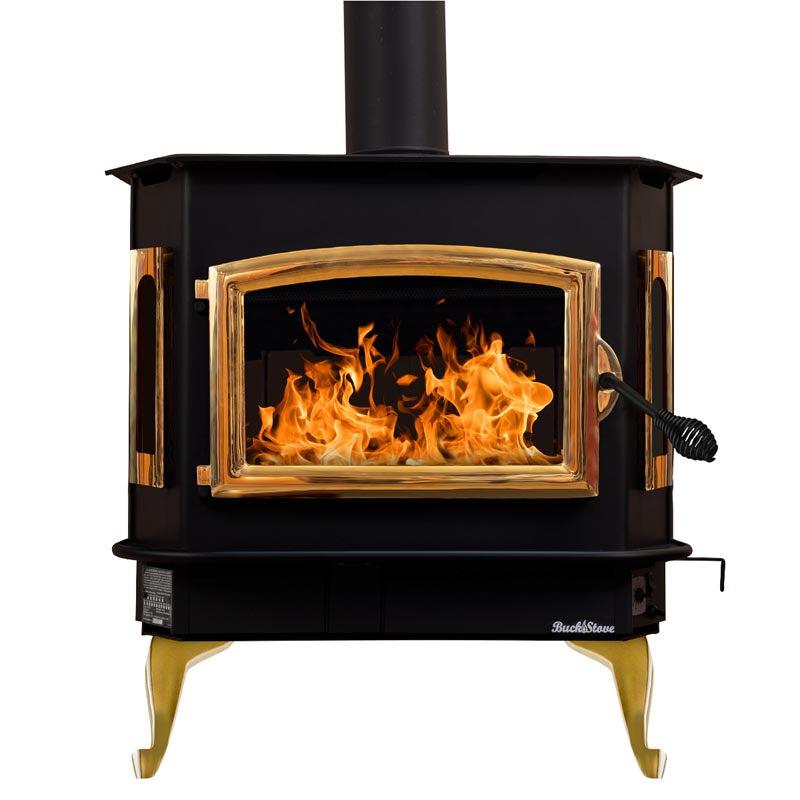

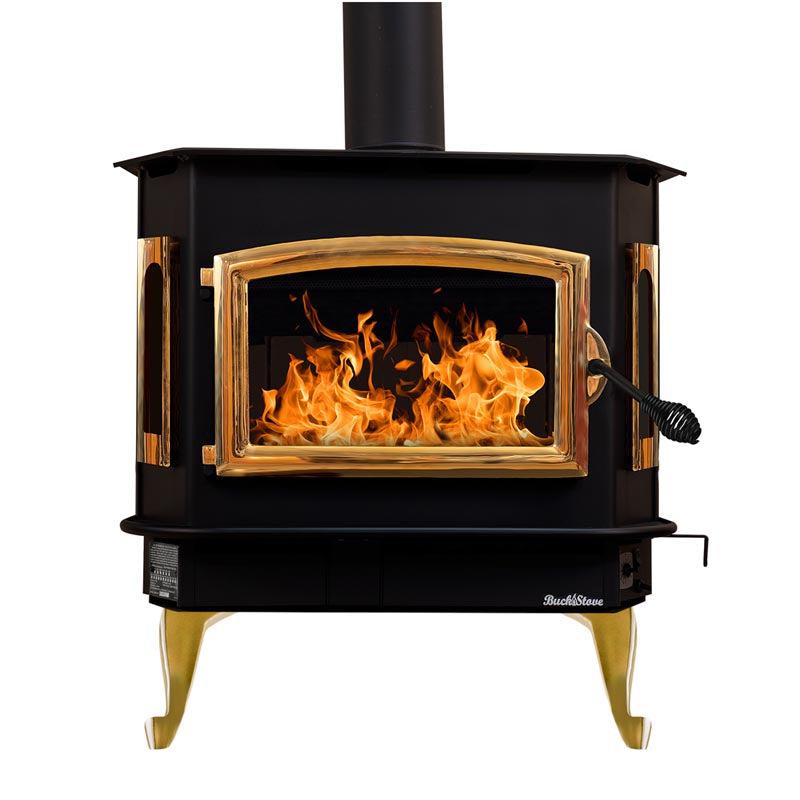

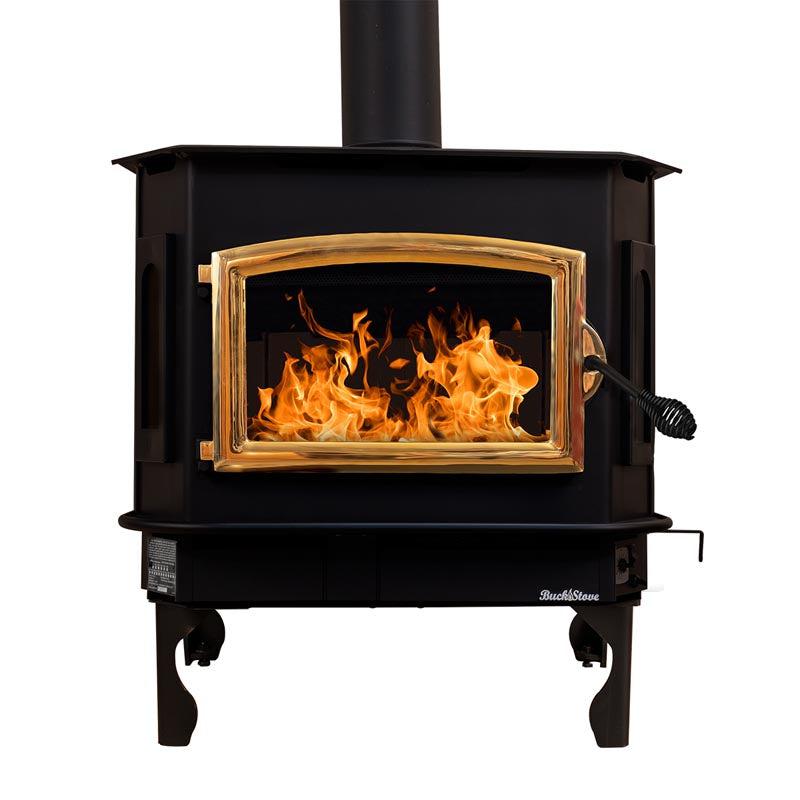

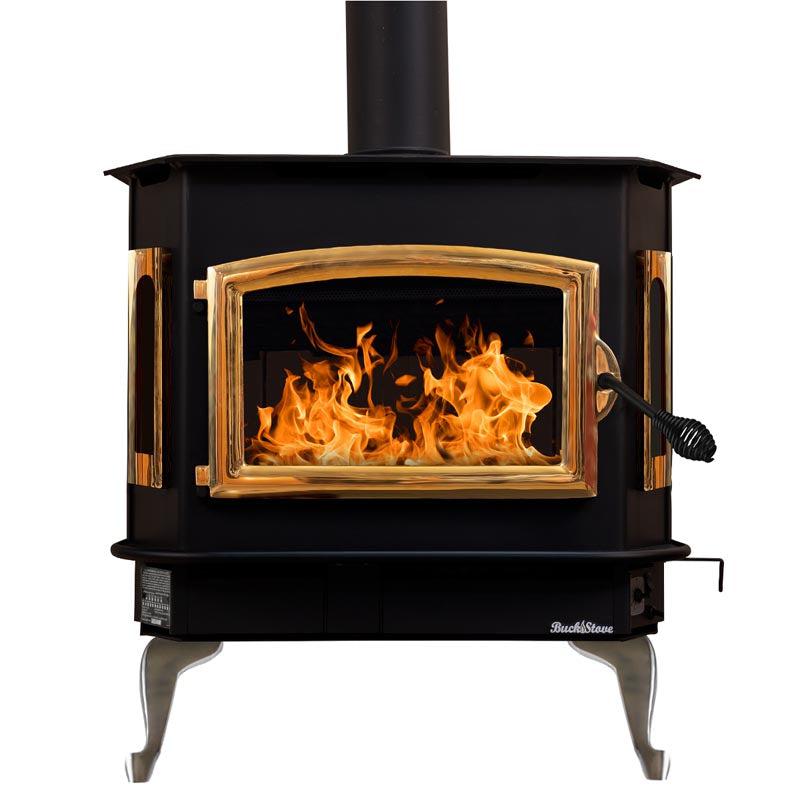

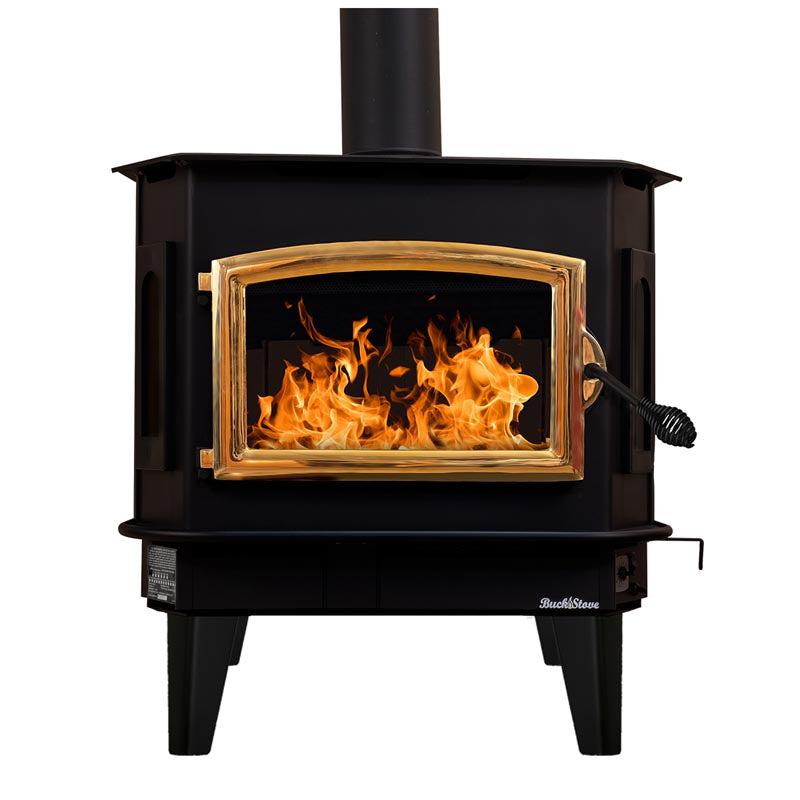

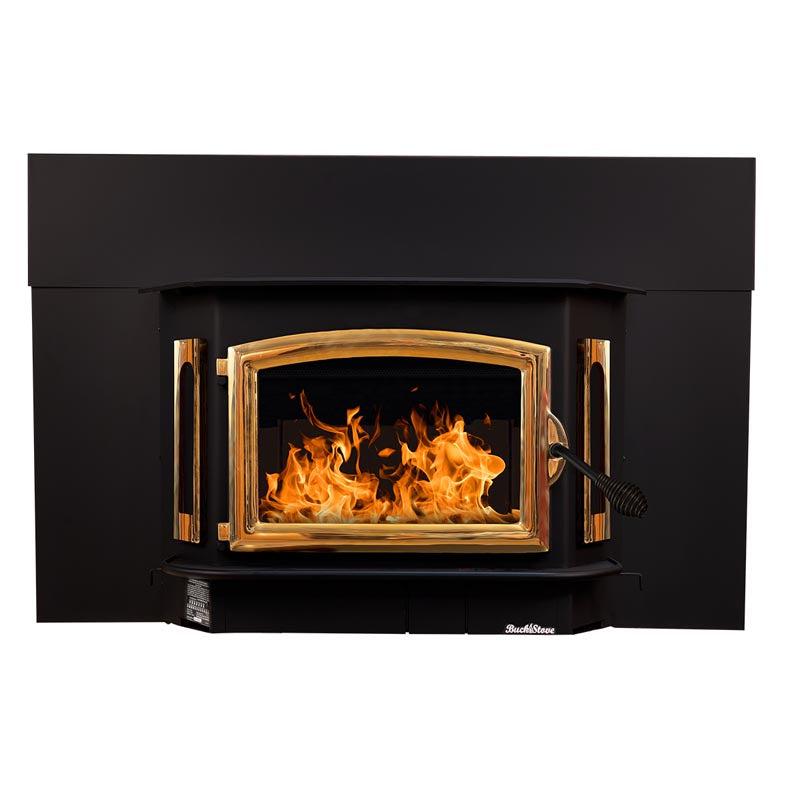

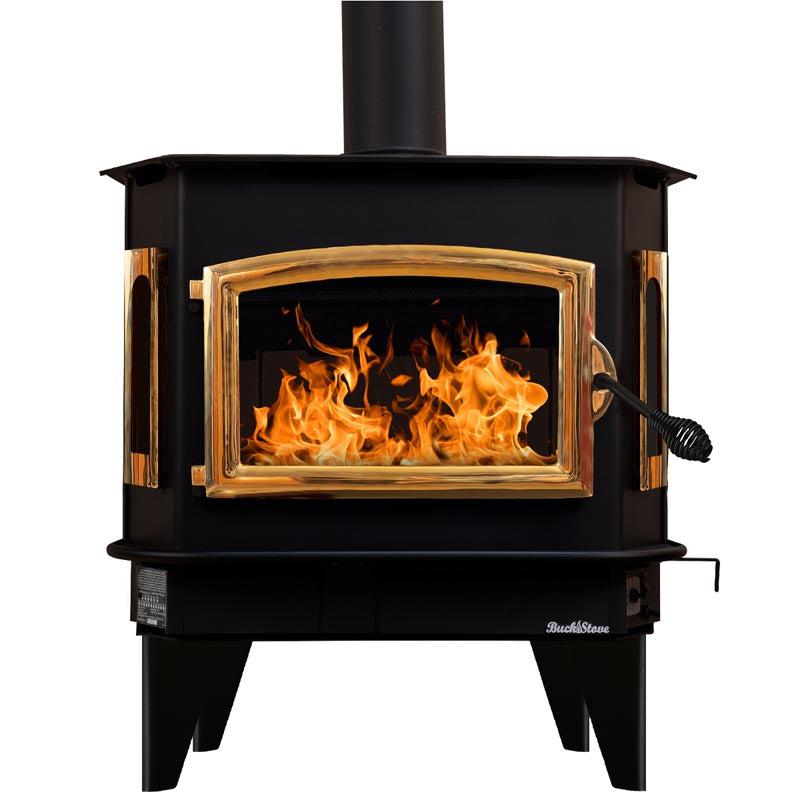

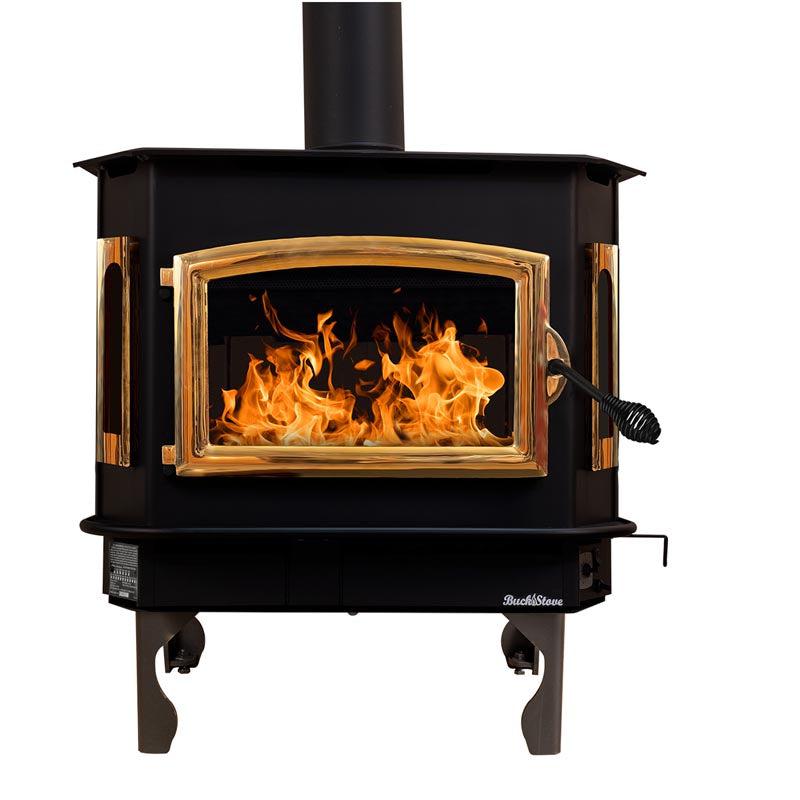

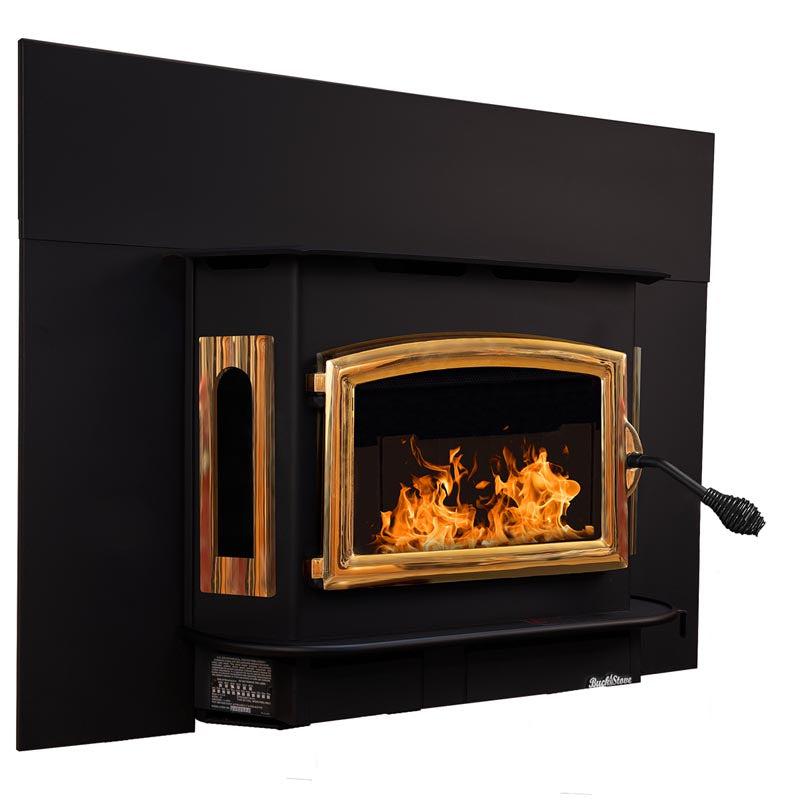

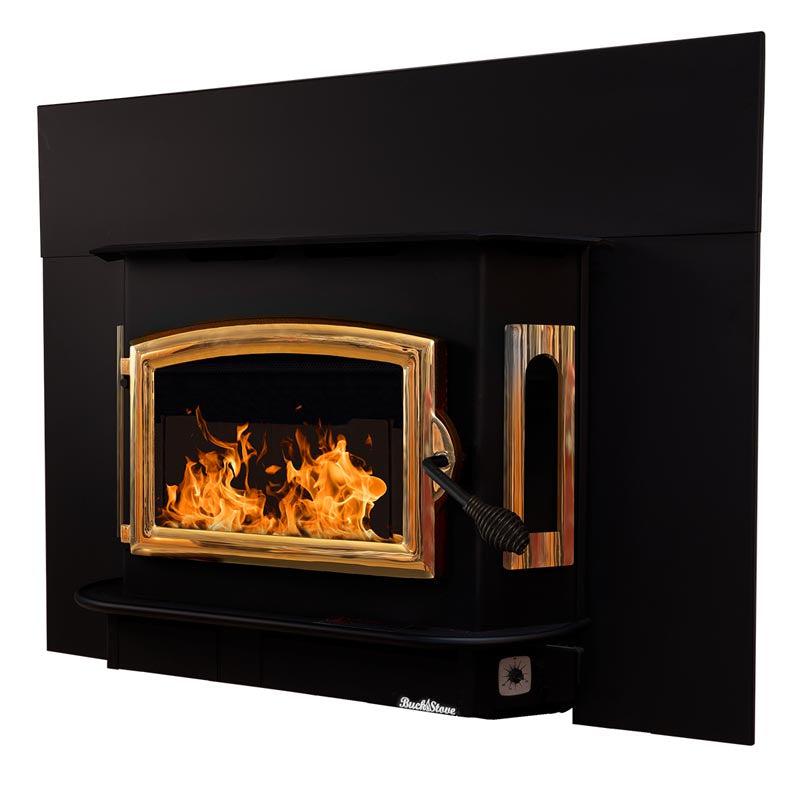

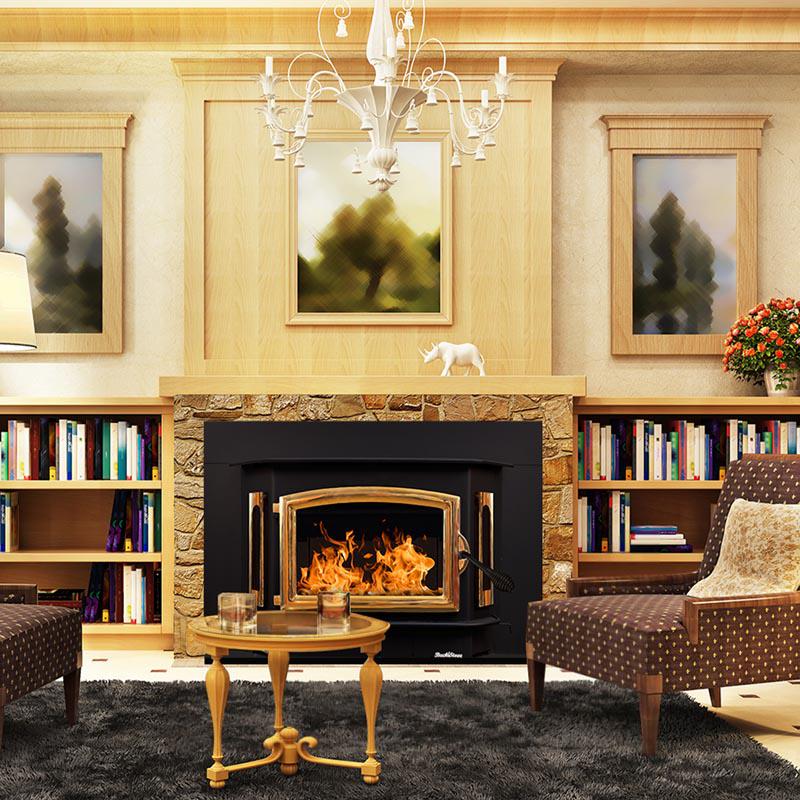

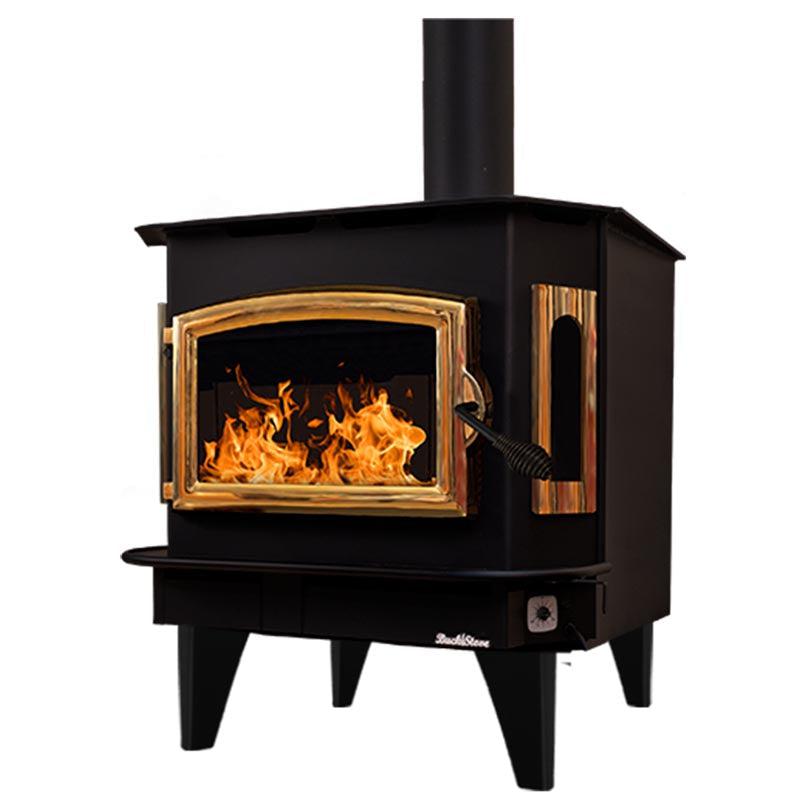

Model 81 provides a rich dramatic focal point for a full view of the essence of a wood-burning stove. It is an outstanding choice for large homes. It is available as a freestanding stove or as an insert for your masonry fireplace with a heating capacity of 1600 to 2700 square feet. Optional black, gold, or pewter legs and door.

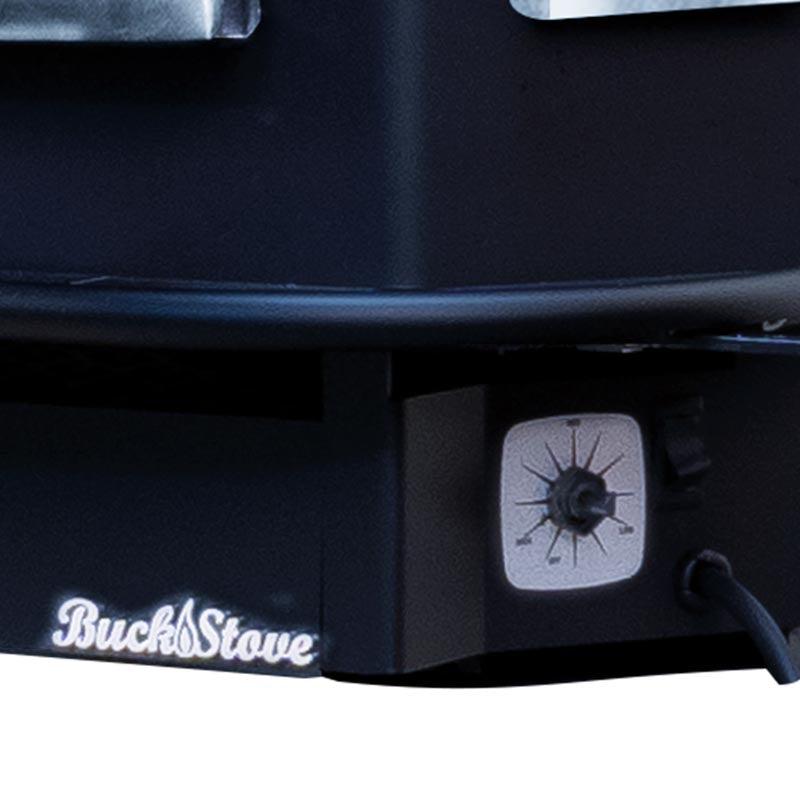

Standard features include durable non-catalytic technology, factory installed variable speed blower, ash removal tray and glass door with airwash system.
Cutting edge technology crafts the classic clean lines and modern designs you see in every one of these Buck Stove Model 81 Non-Catalytic Wood Stoves. Buck Stove has a facility in Spruce Pine, North Carolina where it makes every product. This space gives you the classic Buck Stove hearth technology you're searching for but crafted with the latest in design machinery.
Manufacturing quality appliances has been their top priority since day one. Using high quality Pittsburgh steel and sourcing other domestically manufactured materials is important to Buck Stove. These high quality parts make Buck Stoves a reliable source of heat when you need it most. When you own a Buck Stove you own a quality product built with pride by quality craftsmen.
What's Included
- Model 81 non-catalytic wood-burning stove
Not Included (Sold Separately)
- Standard stove pedestal
- Outside air pedestal
- Trim kits
- Window kit
- Stove legs
- Venting components
Features
- Size: 30 Inches
- Color: Black
- 460 pounds
- Easy clean up
- Non-catalytic design
- 2.4 cubic feet firebox
- Heat circulating blower
- Features a standard ash pan
- Three design options to choose from
- Easy operation and lower maintenance
- Approved for use in prefab and mobile homes
- Accommodates 20" logs front to back or 18" side to side
Specifications
Model 81 Wood Stove | FP 81G |

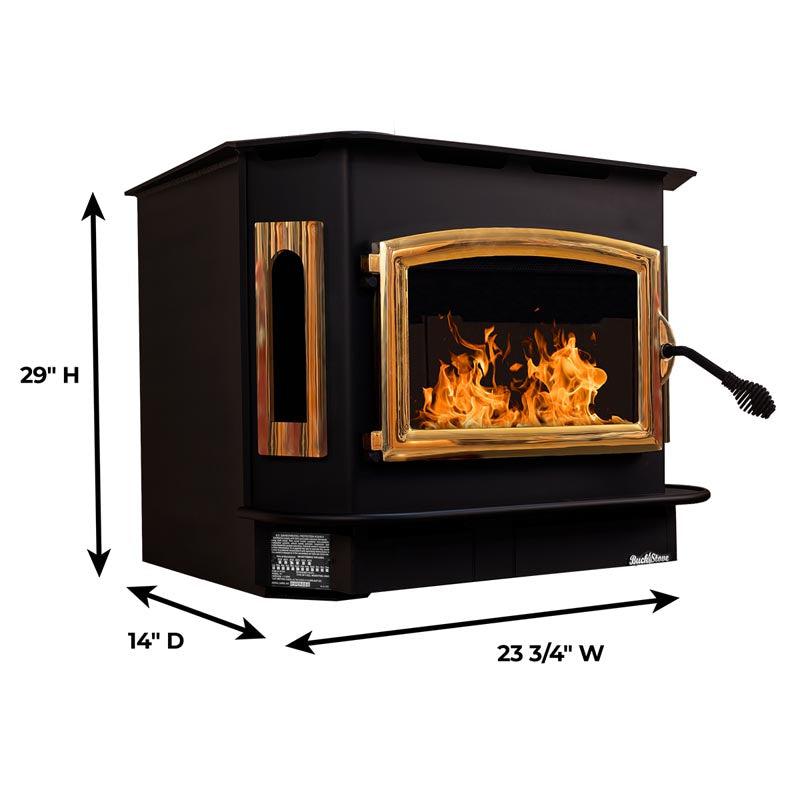

Stove Dimensions (Front) | 29" H X 23 3/4" W X 14" D |
Length | 16"(front to back)22" (side to side) |
Firebox Volume | 2.6 Firewood |
Weight | 460 lbs |
Firewood Length | 20" (front to back) 18" (side to side) |
Minimum Fireplace Dimensions | 23-3/4" H X 29" W X 14" D |

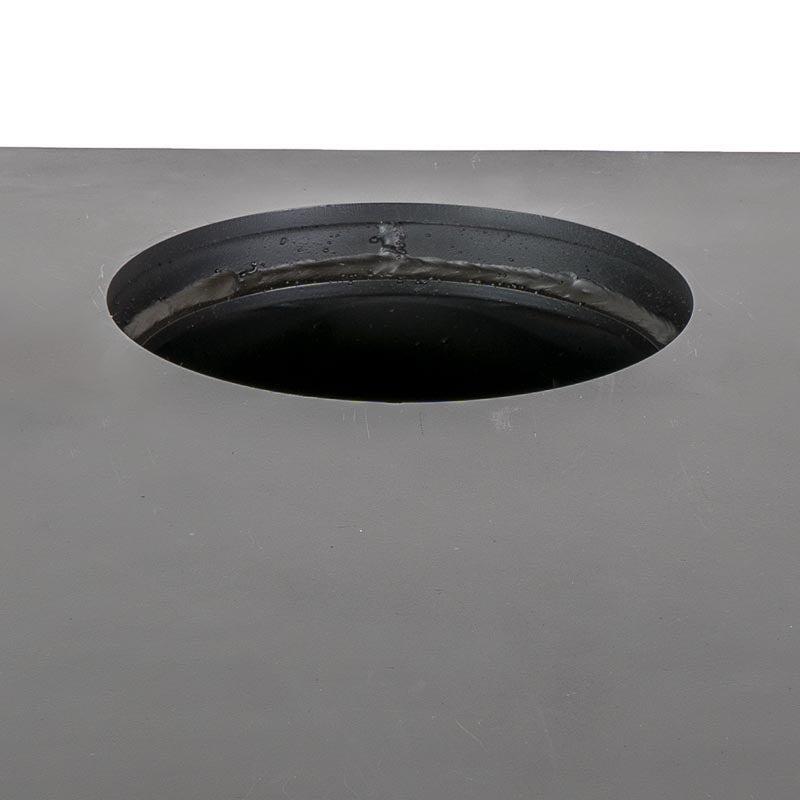

Flue Size | 6" |
Efficiency | 69.8% |
Heart Pad Size | 33" W x 48" D |
Heat Capacity | 1,600 - 2,700 Sq. Feet |
Output BTU/H | 13,800- 59,500 |
Emissions G/H | 1.1 |
Maximum CFM | 185 CFMs (Included Blower) |
Amperage Requirement | 1.3 Amps (Included Blower) |
Blower | Yes |
Ashpan | Yes |

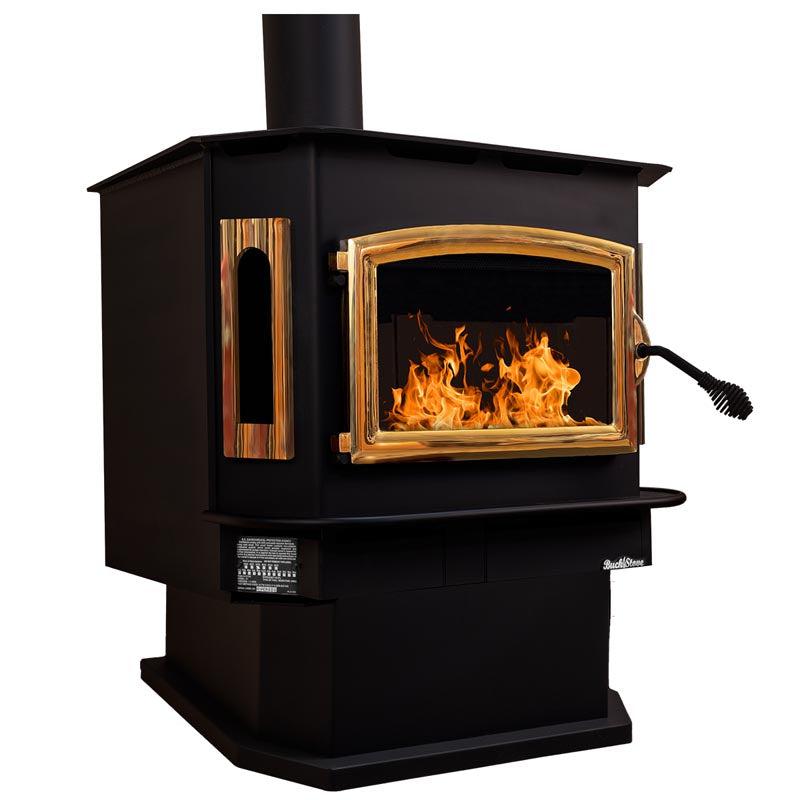

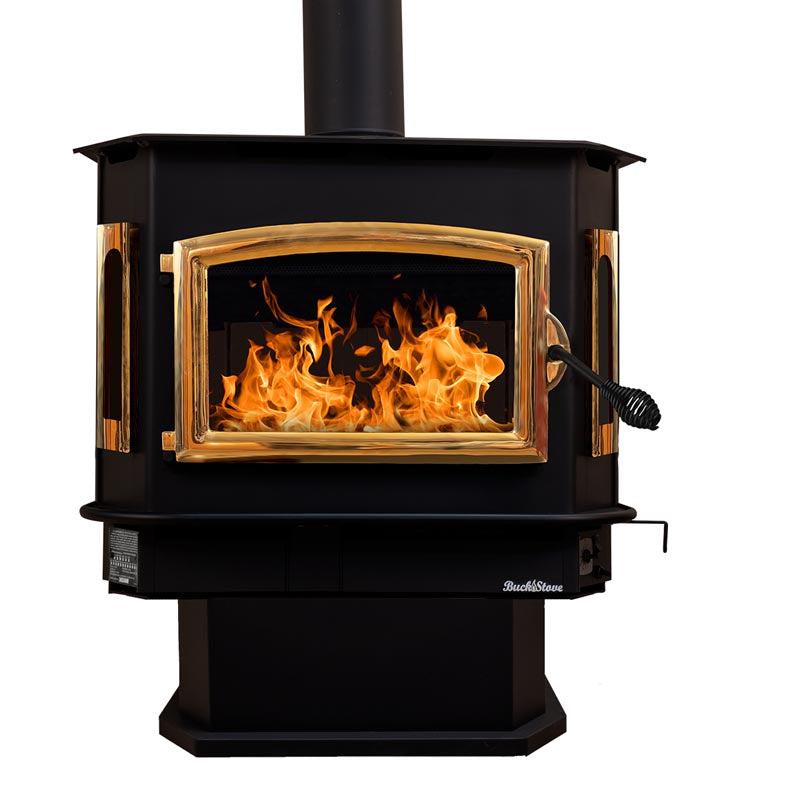

Optional Pedestal | YES (10"H) |
Pre-Fab Approved | No |
Mobile Home Approved | Yes |
Shipping Weight (Includes Pallet/Crate) | 451 lbs. |
Shipping Length (Includes Pallet/Crate) | 32" |
Shipping Width (Includes Pallet/Crate) | 30" |
Shipping Height (Includes Pallet/Crate) | 31" |
Installation Options | Freestanding or Fireplace Insert |
Dimensions
Warranty
PRODUCTS COVERED
This warranty covers the new Buck Stove heating unit, so long as it is owned by the original purchaser, including optional and standard accessories purchased at the same time, subject to terms, limitations, and conditions herein set out.
PRODUCTS NOT COVERED
This warranty does not cover the following:- Glass, Refractory Material, Firebrick or Gaskets.
This Warranty will not cover any damage and/or failure caused by abuse or improper installation of the products covered.
WARRANTY PERIODS
(A)Period I
For one year from the date of purchase, NBC will replace or repair, at its option, any
part defective in materials or workmanship. The costs of parts only are included. The
customer pays any labor or transportation charges required.
Thereafter,
(B) Period II
For the period after the first year from the date of purchase and extending for five years as long as the Buck Stove is owned by the original purchaser, NBC will repair or replace, at its option, any part defective in materials or workmanship, with the exception of, electrical motors, wiring, switches, components, optional and standard accessories, and all parts not permanently attached to the heating unit. Parts not permanently attached to the heating unit are defined as those items designed to be removed from the stove, including those removable with common hand tools. The costs of parts only are included. The customer pays any labor or transportation charges required.
Documents & Files
Frequently Asked Questions
I have a catalytic combustor in my wood stove. Can I clean it & how often does this need to be done?After the first burning, the combustor should have a light gray powder-like appearance. Should the combustor’s cells become masked with fly-ash, use a paintbrush or soft-bristle brush and dust the combustor gently. Never use anything abrasive to clean the combustor. A vacuum cleaner may be used, but never use high-pressured air to blow the cells free of any build-up. Any cell blockage can be removed with the use of a pipe cleaner or cotton swab. Should the combustor become masked with soot or creosote, it is possible to burn the accumulation off by opening the by-pass and building a hot fire. Once the hot fire is created, close the by-pass halfway and burn for 30-60 minutes with the bypass in this position. Applied Ceramics suggests checking and cleaning the combustor before each burning season begins, if necessary. |
How do I know if my catalytic combustor needs to be replaced?The catalytic combustor has a six-year life expectancy when used according to the stove owner’s manual. Although, some combustors have operated with efficiency for as high as ten years, the combustor’s life is based on the stove operator, maintenance, fuels used, and the stove manufacturer’s design. |
I need a piece of glass for my double door stove and I don’t know what model it is.The double door glass kit fits the Models 26000 Old Buck (Little), 27000 Old Buck (Regular), and 28000 Old Buck (Big) and consists of the following: 2 pieces of 6 ½” x 9” glass and 2 gaskets for the glass. |
My glass has a black film on it. How can I clean it?You can clean your glass by using an oven cleaner and paper towels or razor blade. You can also make a solution of vinegar and water. |
I would like to replace the gasket around my door. What do I need?Depending on your model, you need door roping and/or ash bar wicking. You will also need a 2.8 oz. tube of high temperature silicone. |
I have an older Buck Stove and I would like to convert it to a freestanding stove. Is this possible?Yes, it is possible. You will need a stack and a pedestal to do so. First, you must determine which model you have. To do so, measure the rectangular opening on the top of the unit. If the opening is 13¾” x 3¼,” you have either a Model 26000 Old Buck (Little) or a Model 27000 Old Buck (Regular). Order part # FA 260421 for the stack and part # FA P4171B for the pedestal. If the opening measures 16” x 3¾,” then you have Model 28000 Old Buck (Big). Order part # FA 280421 for the stack and part # FA P4171B for the pedestal. |
I have a Buck Stove with a 3-speed thermostat. It only works on high. Can it be it 3 speeds again?After the first burning, the combustor should have a light gray powder-like appearance. Should the combustor’s cells become masked with fly-ash, use a paintbrush or soft-bristle brush and dust the combustor gently. Never use anything abrasive to clean the combustor. A vacuum cleaner may be used, but never use high-pressured air to blow the cells free of any build-up. Any cell blockage can be removed with the use of a pipe cleaner or cotton swab. Should the combustor become masked with soot or creosote, it is possible to burn the accumulation off by opening the by-pass and building a hot fire. Once the hot fire is created, close the by-pass halfway and burn for 30-60 minutes with the bypass in this position. Applied Ceramics suggests checking and cleaning the combustor before each burning season begins, if necessary. |
I have a wood stove and want to make it gas. Can I do this?No, we do not recommend doing this. If you changed from wood to gas, it would not only void the warranty of the gas log set, but you run the risk of damaging gas components in the log set itself and damaging your home. |
My wood stove has developed a crack in the top. Can this be repaired?Yes, it can be fixed. Buck Stove repairs units during the summer months. Please email or call us for further directions. |
Regarding gas valves, what is the difference between a Millivolt and Modulating unit?A Millivolt unit has the capability of using a remote control or wall thermostat to regulate the temperature setting. Whereas, the temperature of a modulating unit is controlled by changing the knob setting on the unit itself. |
Should I purchase a catalytic or non-catalytic unit?Normal rule is, for a primary heat source, choose the catalytic unit. For supplemental heating, choose the non-cat unit. Catalytic units have efficiency rating of 72%. There is more maintenance with a catalytic unit. At some point, depending on how you operate the unit and the type of wood burned, you will probably need to replace the catalyst. Non-catalytic units have an average efficiency rating of 63%, which is quite high for a wood burning unit. There is not a big price difference between catalytic and non-cat stoves. |
