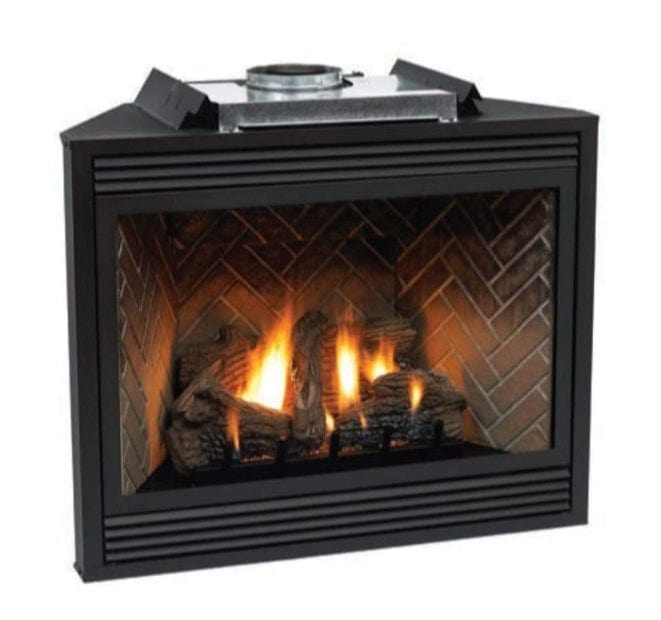

Empire White Mountain Hearth Tahoe Premium 48" Direct Vent Gas Fireplace DVP48FP30

Features

Features:

• Millivolt: Millivolt models feature a standing pilot that you light at the beginning of each heating season using the pushbutton Piezo igniter. Millivolt systems require no electric or battery backup. The systems work with any of our optional remote control accessories – from simple wall switches to thermostats to hand-held programmable remotes.
• IP: Intermittent Pilot models eliminate the standing pilot for even greater energy savings. IP requires 120V AC to operate on a daily basis but can run on battery backup to provide heat during a power outage. IP technology works with any of our remotes.
• Up to 30,000 BTUs
• Tempered Glass: 22 x 42 1/2
• Available in Millivolt, Intermittent Pilot, and Multi-Function Control
• Liner options to choose from: Aged Brick, Herringbone Brick, and Black Reflective

Manual

Manual:

• Product Brochure
• Installation Instructions and Owner's Manual
• Installation Instructions FBB4 Blower Kit
• Specification Sheet DVP48FP

Specifications

Specifications:

• Top or Read Venting: 5 x 8 (Refer to manual for venting requirements) See Power Venting and conventional DV kits in this section.
• Weight: 155
• Warranty:
• 10-year limited warranty on the combustion chamber, limited lifetime on glass.
• All other parts carry a three-year limited warranty
• Framing: 37 3/4 H x 49 3/8 W x 19 7/8 D
• Tempered Glass: 22 x 42 1/2
• Actual Dimensions: 37 5/8 H x 49 W x 19 7/8 D
• Vent Type: Direct Vent
• Vent Size: 5/8"
• Vent Inner Diameter: 5"
• Vent Outer Diameter: 8"

Control Options

FRBC Battery Operated On or Off Remote Control

• Turn burner OFF and ON using the two-button handheld remote (Adjust flame from low to high using the knob on the valve)
• Does not require running wire to the fireplace
• Requires batteries for the receiver and for the handheld remote
• Operates during power outages

FRBTC2 Battery Operated Thermostat Remote Control

• Type: Remote Control
• Millivolt Control Options Only
• Turns heater adjusts Thermostat
• Battery-operated remote control

FREC Electric On-Off Remote Control with Battery Transmitter

• Millivolt Control Options Only
• Remote control with Battery transmitter for Empire remote-ready appliances
• Easy and convenient to use
• The receiver must be plugged in

FRBTPS Battery Operated Programmable Touch Screen Remote Control

• Type: Remote Control
• Millivolt Control Options Only
• Programmable and easy to use
• Battery-operated remote control

FWS1 Fireplace On/Off Switch

• On-Off wall switch for Empire remote-ready appliances
• Mounts conveniently on the wall

TMV Wall Thermostat Reed Switch

• Wall thermostat with reed switch for Empire remote-ready appliances
• Mounts conveniently on the wall

TRW Wall Thermostat Wireless Remote

• Wall thermostat with wireless remote for Empire remote-ready appliances
• Thermostat mounts conveniently on wall

Variable Remote for IP

Remote Kit, Variable Flame Height, Natural Gas or Propane

• Fireplace Type: Standard(RVKP, RVKN)
• Vent Type: Vented(RVKP, RVKN)
• Remote Control Variable Flame Height Kit
• For Use with DVC20, DVC26, and DVC28 Units with Intermittent Pilot Controls
• Available for Propane or Natural Gas Burner Systems

Barrier and Door Frame

Fireplace Barrier Screen

• Color: Matte Black

Door Frame with Barrier Screen

• Size: 34 Inch x 33 Inch
• Color: Matte Black

Door Set (Requires Door Frame with Barrier)

Rectangle Door Set

Liners

Black Porcelain

• Finish: Black Porcelain
• Gives your firebox a contemporary modern look
• Reflective black metal design enhances and amplifies the appearance of flames

Herringbone Brick Fireplace Liner

• Ceramic fiber liner
• Light-colored bricks with realistic smoke patterns

Aged Brick Fireplace Liner

• Type: Liner
• Material: Ceramic Fiber

Stacked Fieldstone Fireplace Liner

• Gives your fireplace a traditional look
• Rustic design with irregular stones and no mortar
• Durable ceramic fiber construction

Accessories

Auto Blower

• Variable-speed blower
• Includes temperature switch
• Increases overall working efficiency of the fireplace

24 Inch Flexible Stainless Steel Gas Line

• Stainless steel flexible gas line
• 24" length
• Ideal for the connection of a variety of gas appliances

Platinum Glowing Fireplace Embers

• Platinum glowing fireplace embers
• Can be placed directly on the burner
• Includes approximately 1 gram of ember material

Traditional Log and Ember Bed Kit

• Include: six (6) burnt log pieces, white ash, and lava rock

*This kit is not for use atop a burner.
