Fire Magic

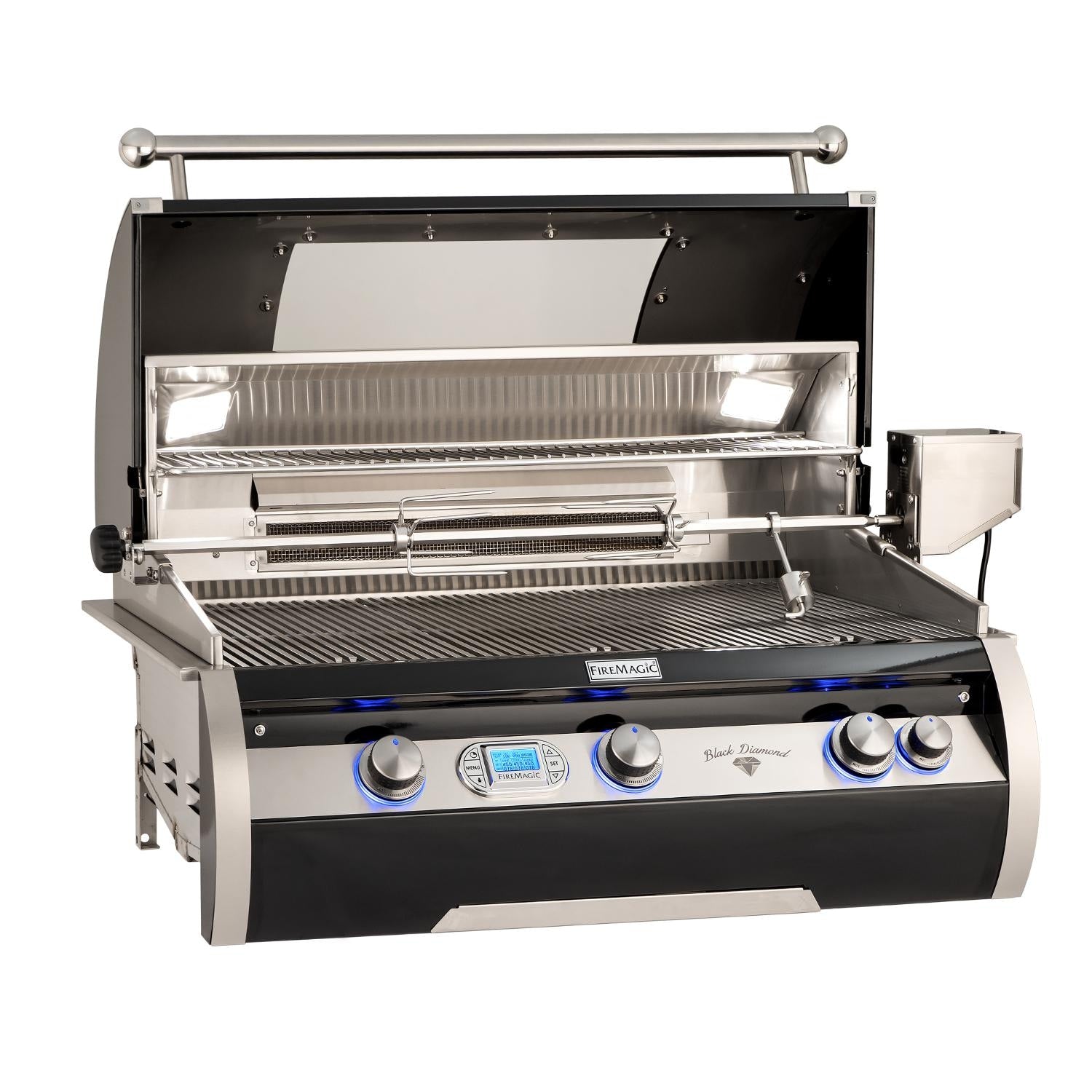

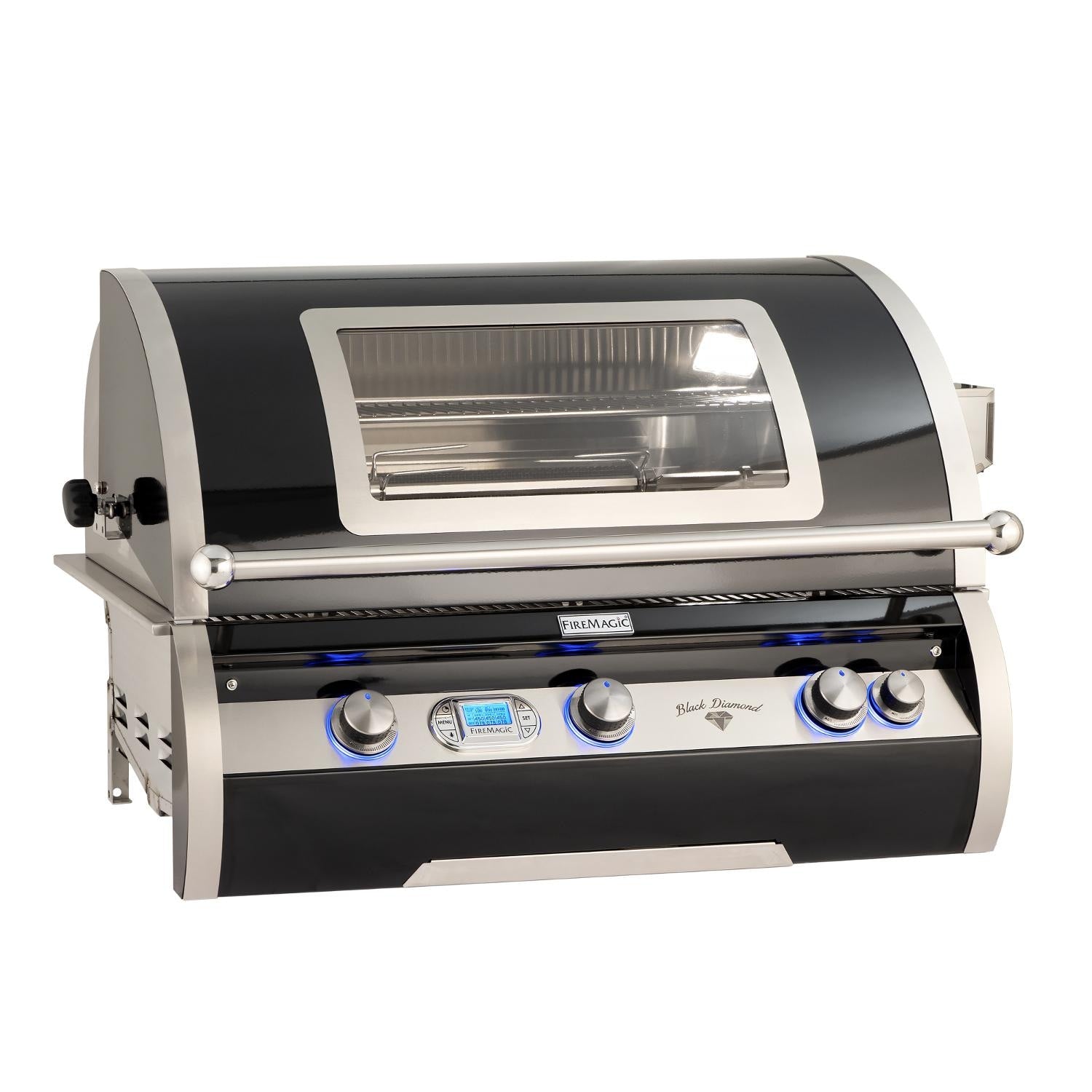

Fire Magic Echelon Black Diamond 36" Built-In Propane Gas Grill One Infrared Burner & Magic View Window (H790I-8L1P-W)
Fire Magic Echelon Black Diamond 36" Built-In Propane Gas Grill One Infrared Burner & Magic View Window (H790I-8L1P-W)
SKU:H790I-8L1P-W
$10,054.80 USD
Couldn't load pickup availability
Fire Magic Echelon Black Diamond 36" Built-In Propane Gas Grill One Infrared Burner & Magic View Window (H790I-8L1P-W)
The Fire Magic Echelon Diamond Series combines the ultimate in performance, beauty, and innovation, featuring a hot surface ignition, blue back-lit knobs, heat zone separators, and infrared sear burner options.
Features:
- All 304 stainless steel trapezoid cooking grids provide more optimal cooking surface for even heat and great searing.
- 16-gauge stainless steel, flavor grids are engineered for durability, even heat distribution, and reduced flare-ups.
- Heat zone separators between each burner, flavor grid, and cooking grid allow cooking an assortment of foods at different temperatures simultaneously, and to provide better indirect cooking.
- Hot surface electronic ignition provides reliable lighting for every meal. Requires 120V AC power supply.

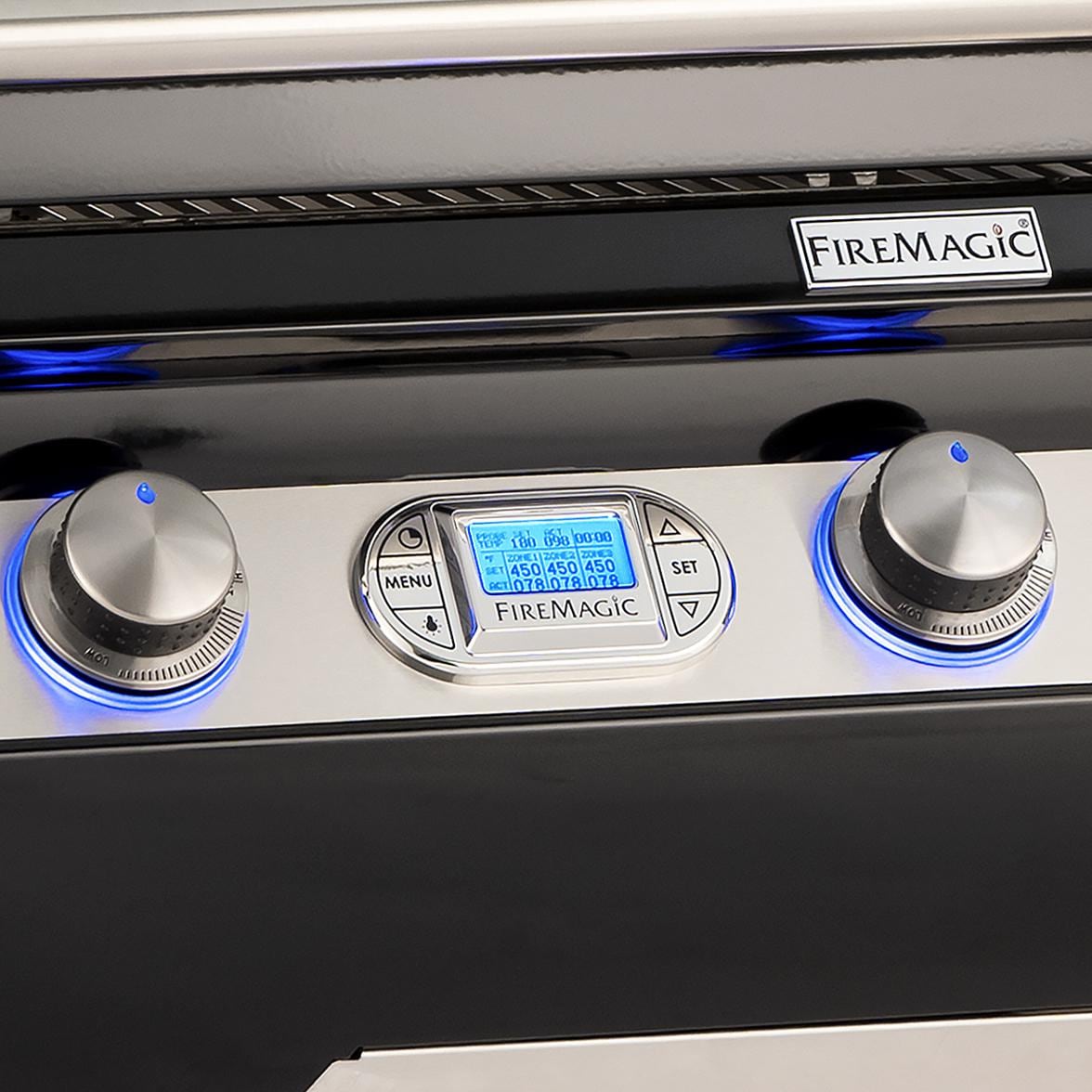

- Back-lit, satin stainless steel safety control knobs (flame turns red when on, blue when off).

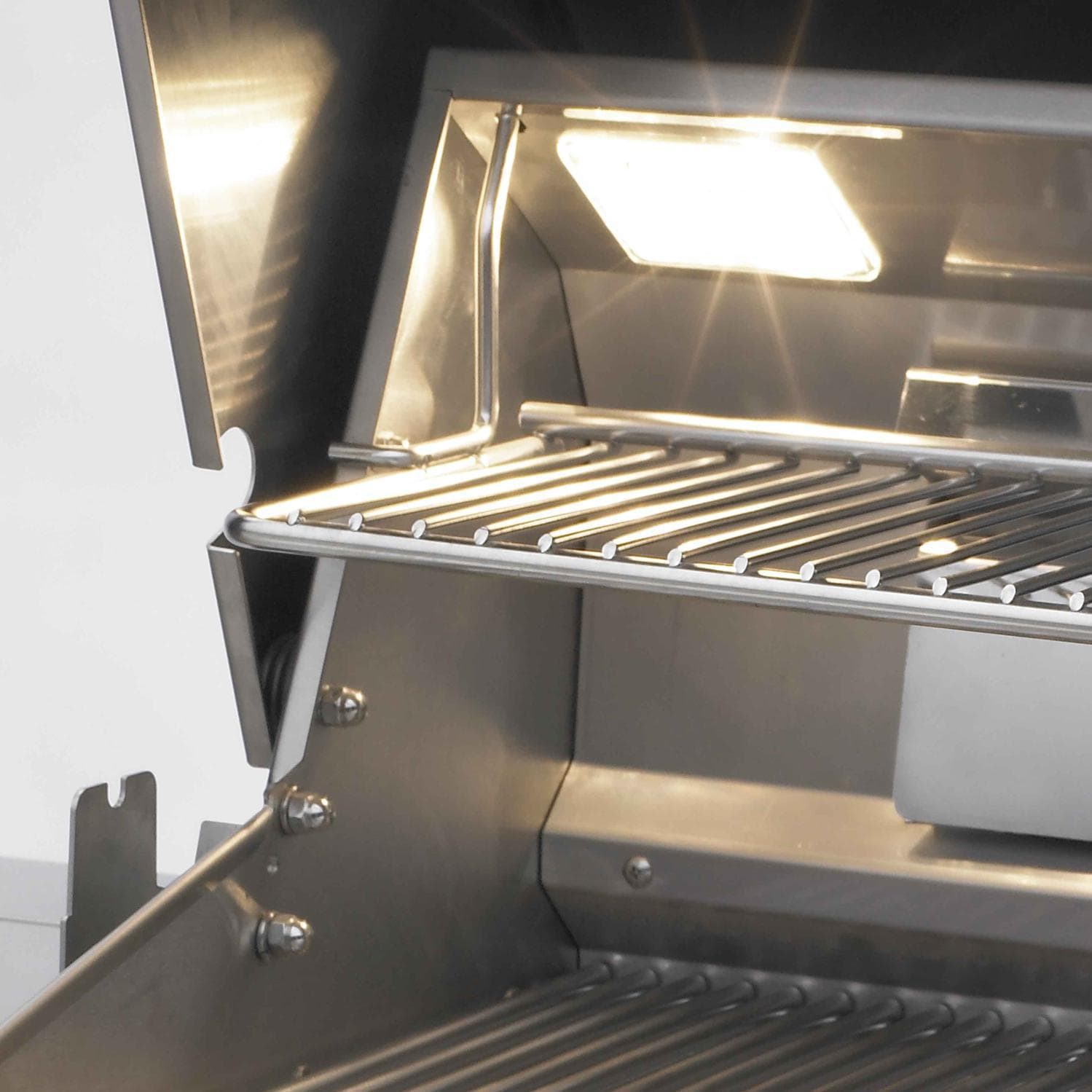

- Angled interior halogen lights make evening grilling a breeze.
- Recessed Quantum backburner made of stainless steel foam uses less BTUs to generate efficient high heat for rotisserie cooking. Polished stainless steel cover included for protection.
Dimensions | 40.125" W x 27.25" H x30.75" D |
Primary Cooking Surface | 36" x 22" (792 sq. in.) |
Warming Rack Surface | 36" x 8" (288 sq. in.) |
Cut-out Dimensions | 37" (W) x 23.5" (D) x 11.5" (H) |
Main Burners | 96,000 BTUs |
Backburner | 13,000 BTUs |
Class | Luxury |
Fuel Type | Propane |
Collection | Echelon Black Diamond |
Configuration | Built-In |
Exterior Material | Porcelain Coated Steel |
Exterior Stainless Grade | 304 Stainless Steel |
Primary Color | Black |
Number Of Main Burners | 3 Burners |
Infrared Main Burner | One Infrared |
Main Burner Material | 304 Cast Stainless Steel + Ceramic Infrared |
Flame Tamer Material | Stainless Steel |
Cooking Grate Material | Stainless Steel |
Burger Count | 28 |
WiFi/Bluetooth Enabled | None |
Rotisserie Kit | Included |
Heat Zone Separators | Yes |
Ignition Type | Hot Surface |
Flash Tubes | Yes |
Grill Lights | Internal / External |
Spring Assisted Hood | Yes |
Thermometer | Digital |
Includes Smoker Box | No |
Hose Included | Yes |
Made In USA | Yes |
Commercial-Grade Multi-User | No |
Grill Size | 36" |
Cut-Out Spec Sheet |
About Firemagic :
- Fire Magic Grills and products have been proudly crafted in the USA since 1937.
- Their true width cooking grids offer some of the largest cooking areas by square inch in their size classes, so you can cook more food at once.
- Get a great sear every time with their stainless-steel diamond sear cooking grids, which provide more surface contact for fast and even grilling.
- You can create the perfect outdoor area with Fire Magic’s extensive line of grills and matching outdoor kitchen equipment.
