Fire Magic 30" Echelon Diamond Built-In Natural Gas Grill, One Infrared Burner, Magic View Window, Rotisserie & Digital Thermometer (E660I-8L1N-W)

Fire Magic 30" Echelon Diamond Built-In Natural Gas Grill, One Infrared Burner, Magic View Window, Rotisserie & Digital Thermometer (E660I-8L1N-W)

SKU:E660I-8L1N-W

$8,685.90 USD

Fire Magic Echelon Diamond  30" Built-In Natural Gas Grill W/ One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1N-W)

The Echelon Diamond E660I built-in natural gas grill features 304 stainless steel construction for lasting quality, and modern styling with a sleek, contoured control panel that includes LED backlit comfort touch knobs and a state-of-the-art digital thermometer display.

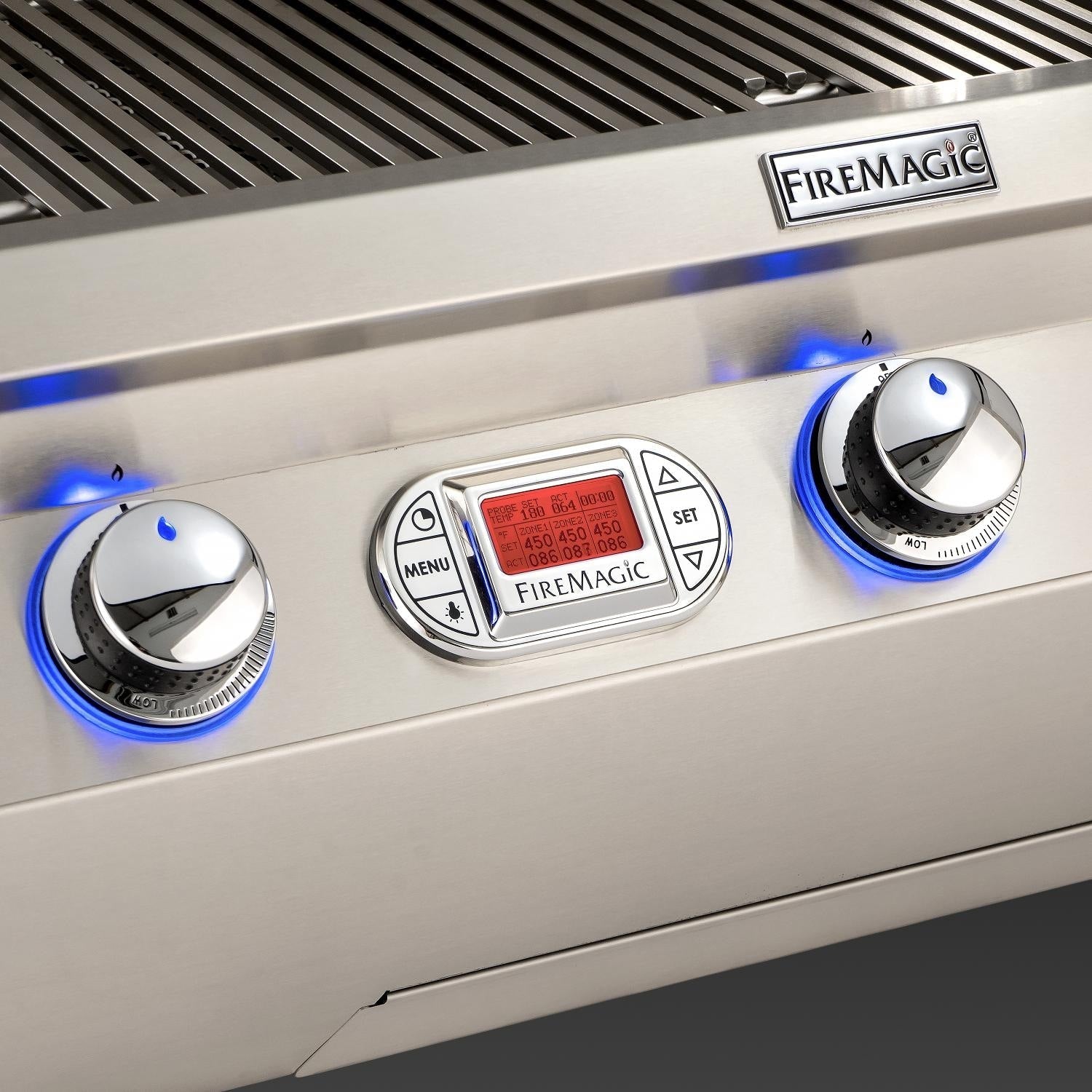

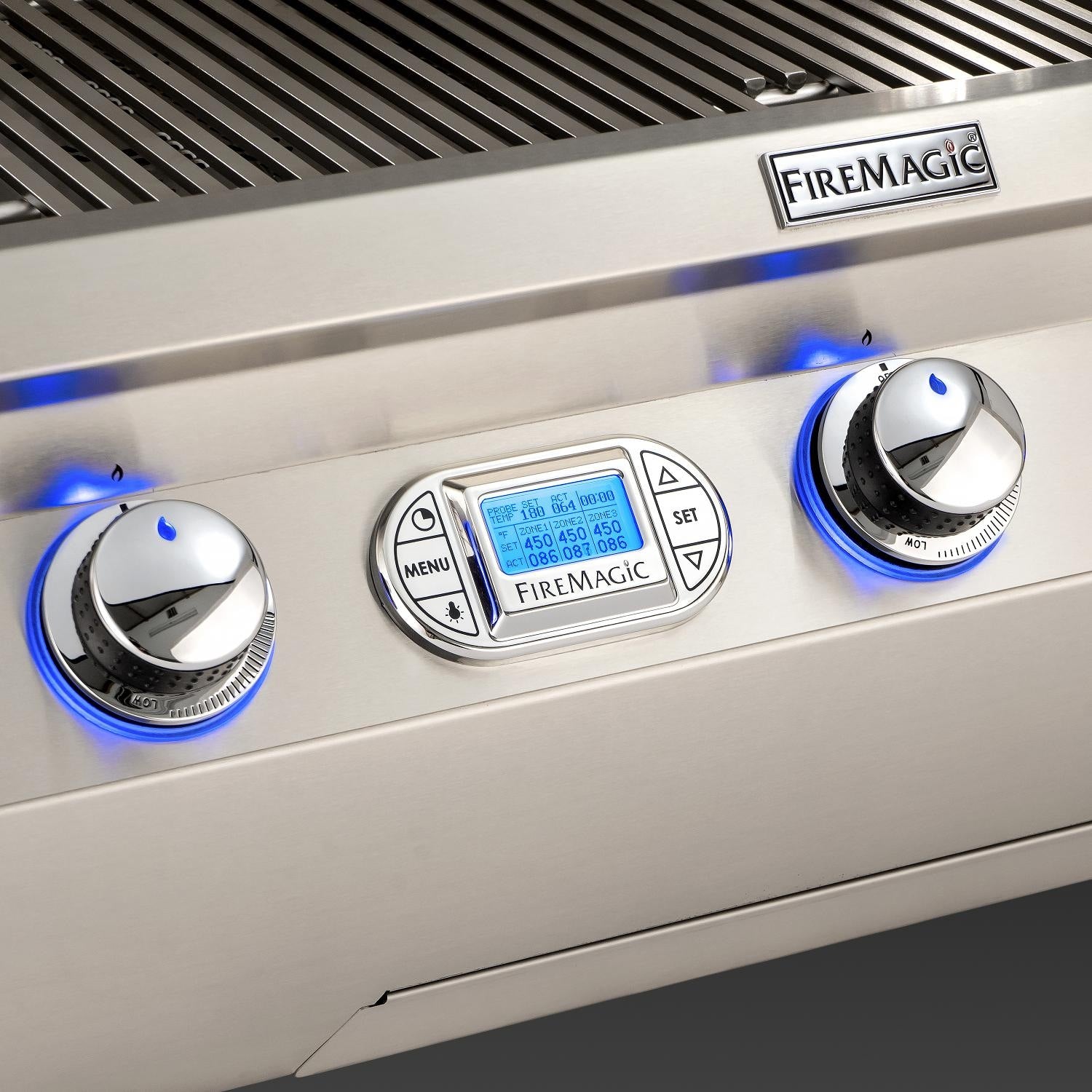

This display has 4 zone temperature reading and can be used to monitor the included food probe. With finger touch controls, you can set temperatures, monitor cooking time, switch the internal lights on or off, and even choose between 4 colors for the display.

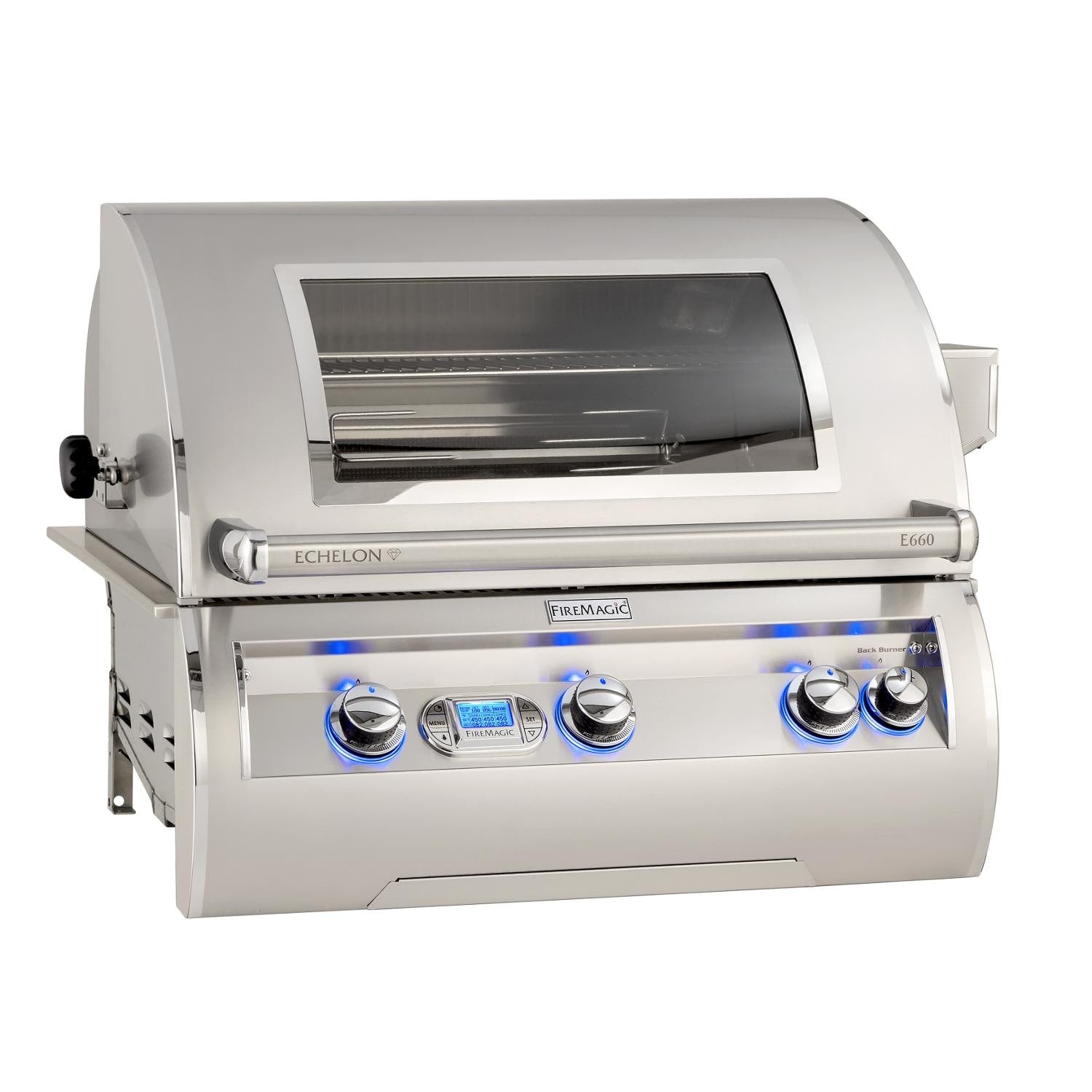

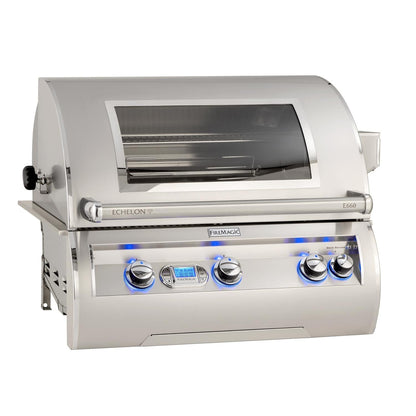

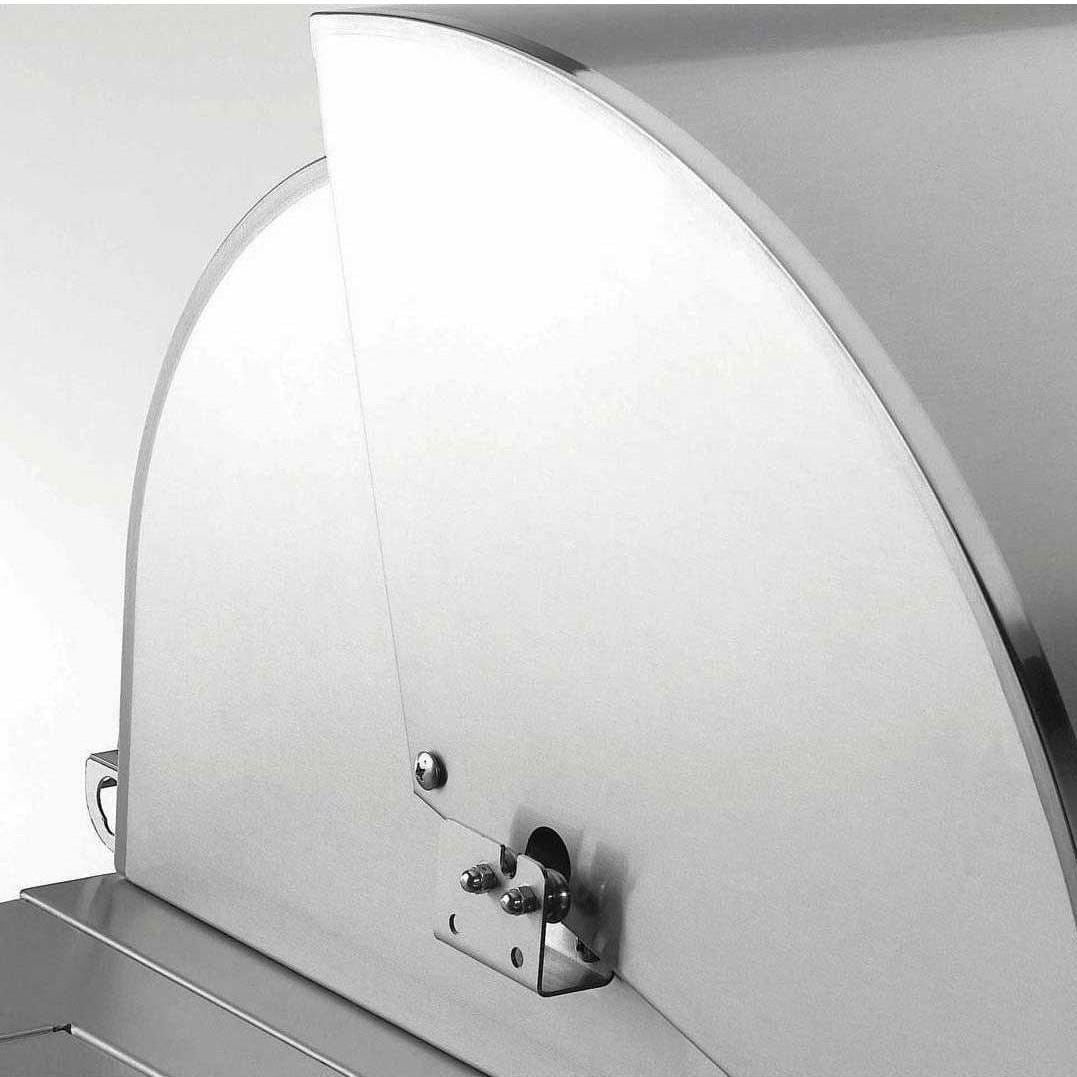

The double-walled, spring assisted hood opens 90 degrees for easier access and more efficient exhaust. Built into the hood is the Magic View Window.

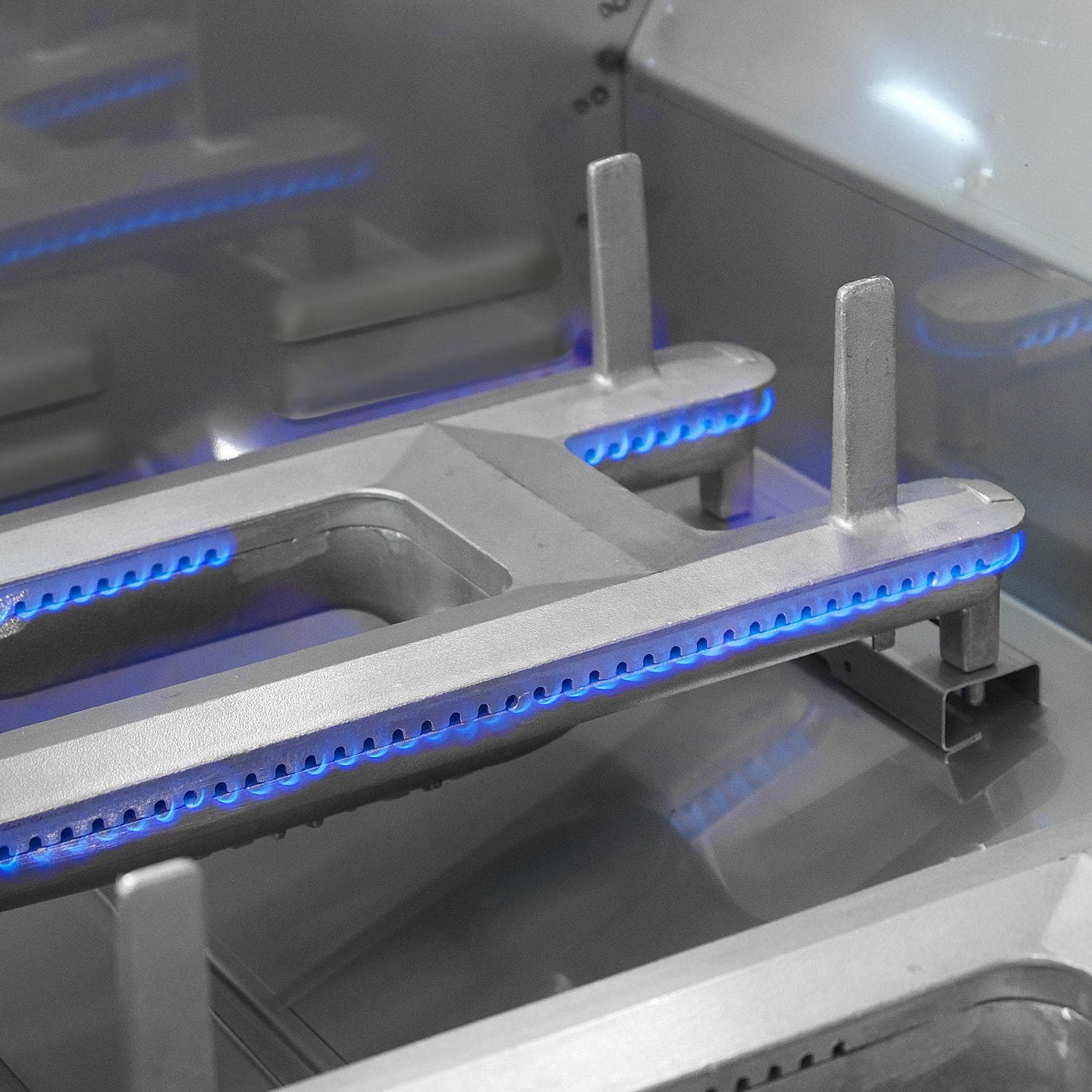

This heat resistant ceramic glass window is designed to operate at temperatures up to 1,400 degrees. It lets you monitor the interior of your grill without having to lift the lid, thus losing precious heat. Inside, this grill features two cast stainless steel E-burners, made with 1/4-inch thick walls and precision porting, and a left side infrared burner that combine for 75,000 BTUs.

Reliable hot surface ignition always lights your burners where others might fail. Flash tubes serve as a backup. Flavor grids sit above the burners to spread heat evenly and protect the burners from debris and grease. These flavor grids have attached heat zone separators, allowing you to create independent heat zones at the surface of the grill for varied cooking options.

The 660 sq. in. cooking surface consists of the patented Diamond Sear cooking grids. These grids feature a matte, non-stick surface, and a trapezoidal shape that optimally transfers heat from the burner to the wide surface of the cooking grids.

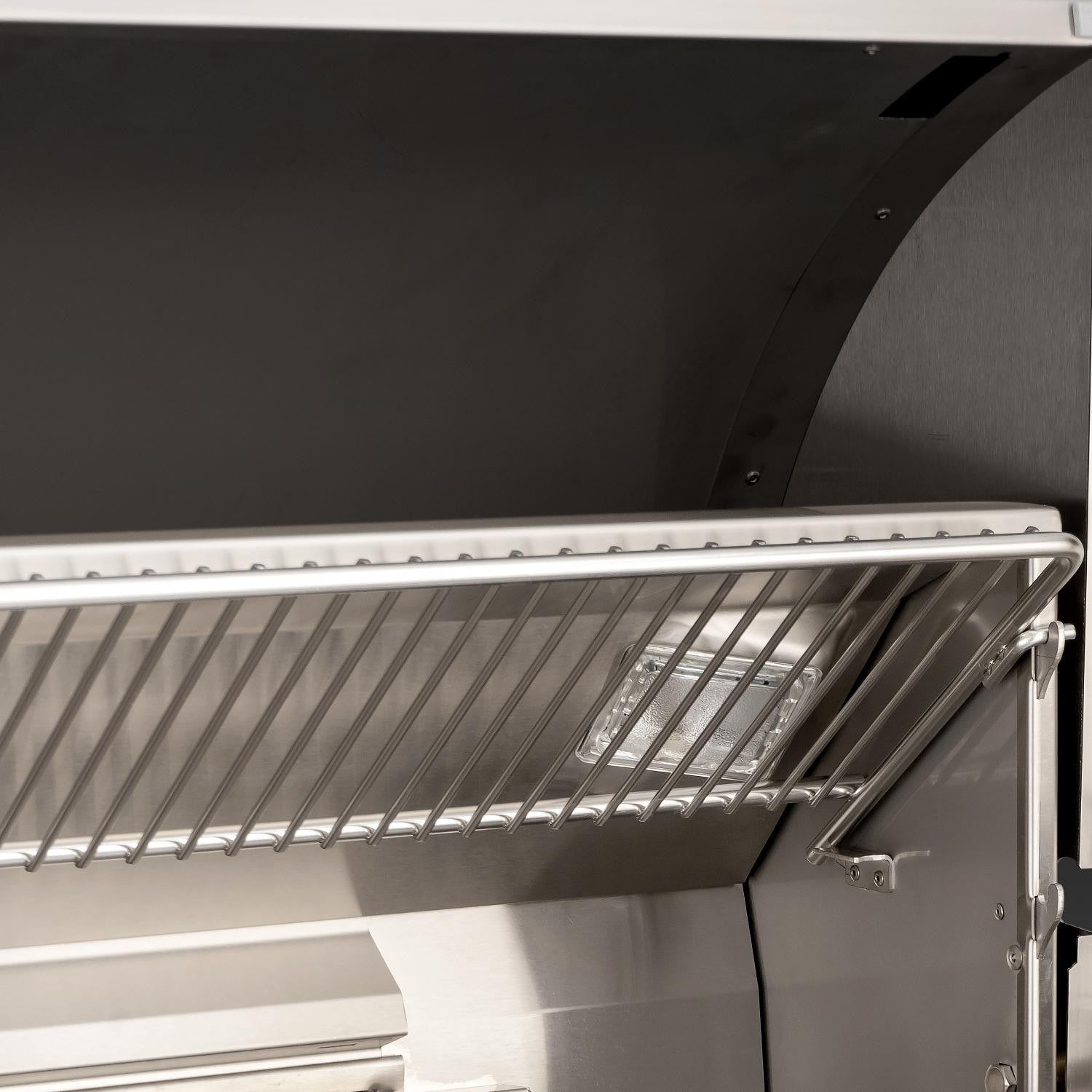

The warming rack above can be adjusted and moved out of the way when not in use.

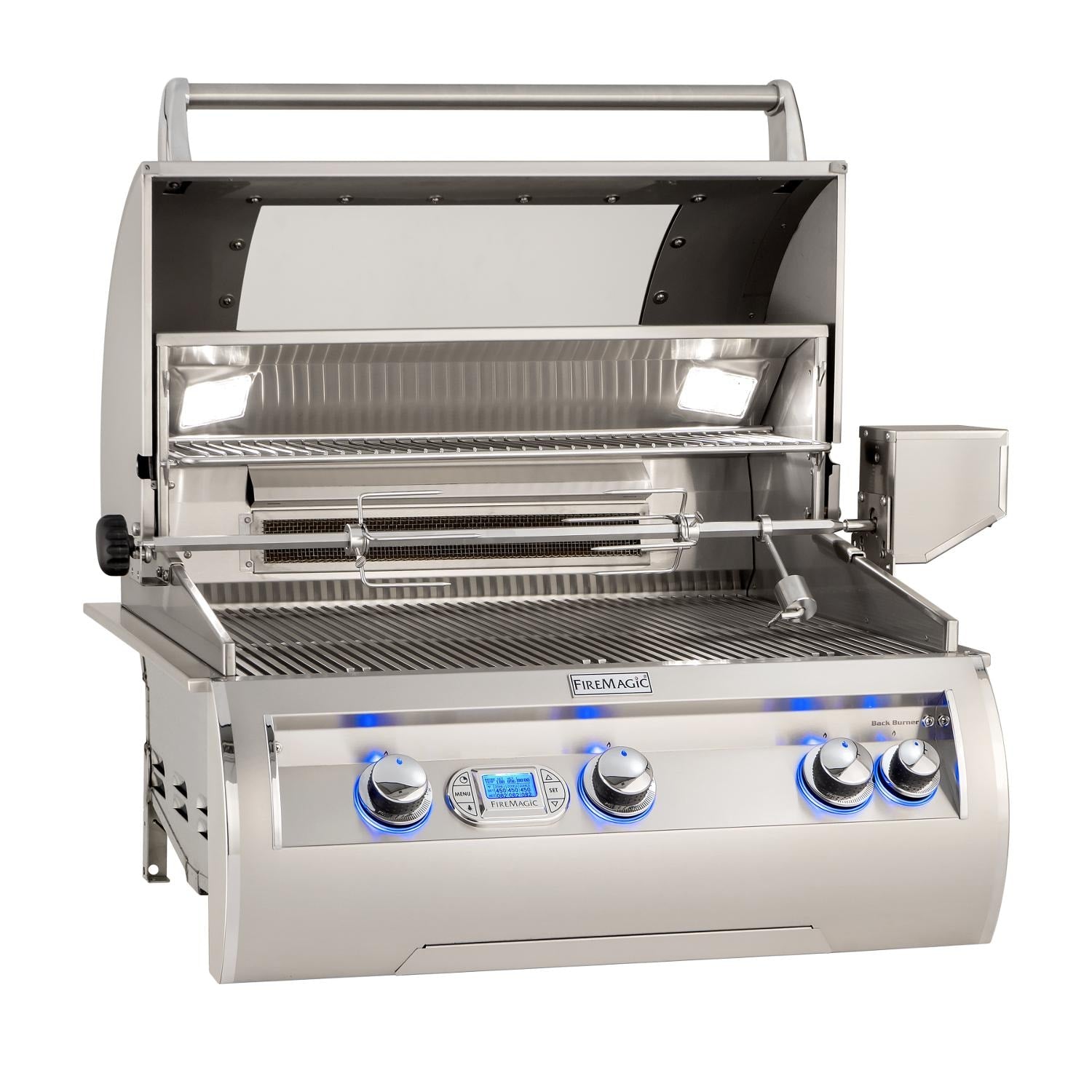

In the rear of the grill is a Quantum stainless steel infrared backburner for the included heavy duty rotisserie kit that produces 11,000 BTUs of radiant heat. This burner uses stainless steel foam, which provides double the heat per BTU.

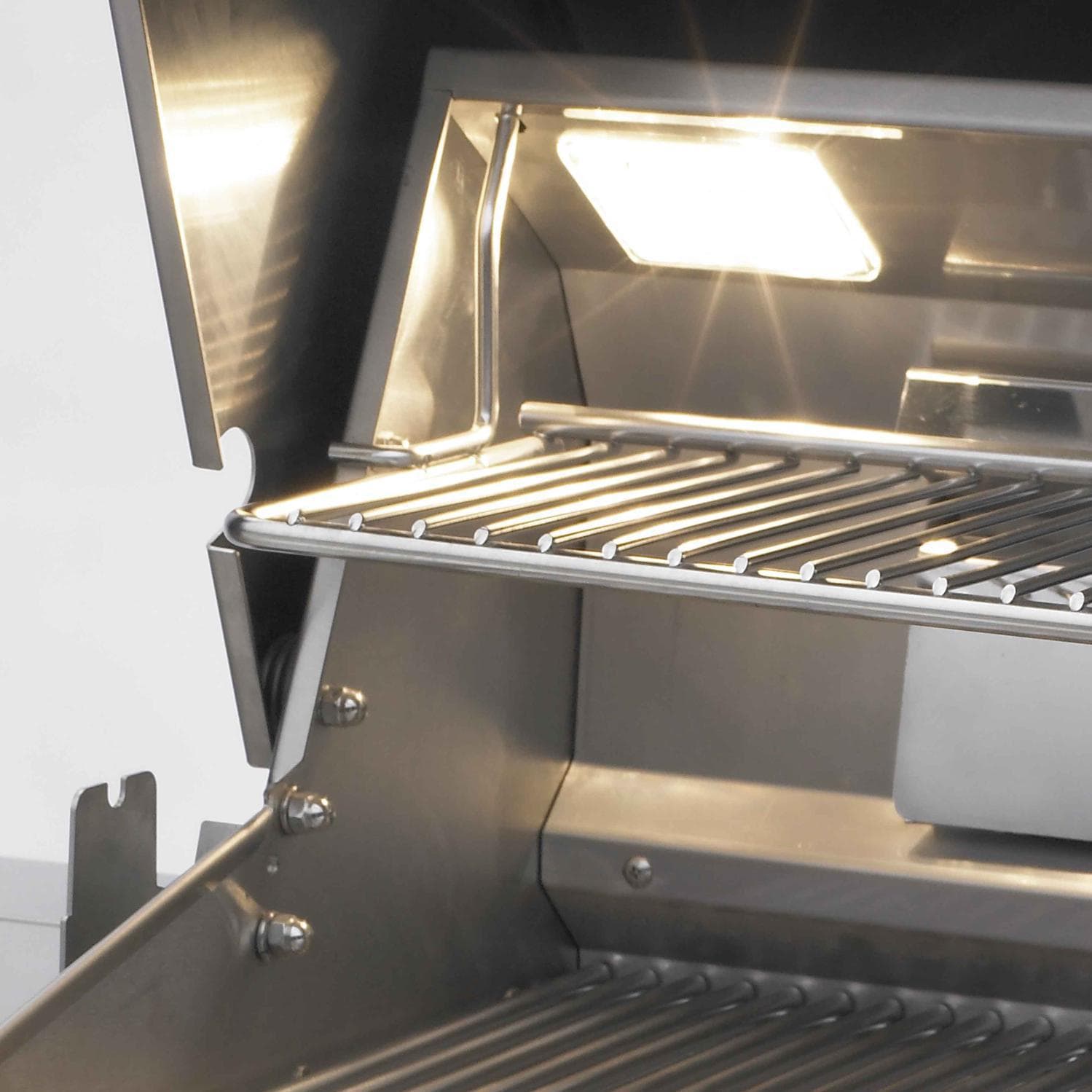

Additionally, Echelon Diamond grills come with a charcoal/smoker basket for adding delicious, smoky flavor to your cook. For night time grilling, the interior of the grill is lit by two halogen lights.

A new, larger drip tray with ball bearing glides makes cleanup with the disposable drip pan system even easier than before. Solid, raised hangers line the sides and back of the grill for a seamless look when placed into a counter top or island.

A 120 VAC power source is required for ignition, as well as for the lighting functions. With all of these premium features, the Echelon Diamond series from Fire Magic defines luxury grilling

Features:

  • Diamond Sear cooking grids feature a wide, flat top, optimally transferring heat from the burner to the cooking surface
  • Cast stainless steel burners with flavor grids provide even heating and independent heat zones
  • Quantum rotisserie burner produces twice the heat per BTU of standard infrared burners
  • Left side infrared burner lets you create an independent steakhouse quality sear zone



Dimensions 34.375"  W x   27" H x 30.5" D
Cutout Dimensions  31.25" W x 23.5" D x 12" H
Class Luxury
Fuel Type Natural Gas
Collection Echelon Diamond
Configuration Built-In
Exterior Material Stainless Steel
Exterior Stainless Grade 304 Stainless Steel
Primary Color Stainless Steel
Number Of Main Burners 3 Burners
Grilling Surface BTUs 75000
Infrared Main Burner One Infrared
Main Burner Material 304 Cast Stainless Steel + Ceramic Infrared
Flame Tamer Material Stainless Steel
Cooking Grate Material Stainless Steel
Cooking Grid Dimensions 30 X 22"
Main Grilling Area 660 Sq. Inches
Secondary Grilling Area 240 Sq. Inches
Total Grilling Area 900 Sq. Inches
Burger Count 24
WiFi/Bluetooth Enabled None
Rotisserie Burner BTUs 11,000
Rotisserie Kit Included
Heat Zone Separators Yes
Ignition Type Hot Surface
Flash Tubes Yes
Grill Lights Internal / External
Spring Assisted Hood Yes
Thermometer Digital
Includes Smoker Box No
Side Shelves Yes
Hose Included Yes
Side Burner Side Burner
Made In USA Yes
Commercial-Grade Multi-User No
Grill Size 30"



Instructions Manual
Cut-Out Spec Sheet
QuickStart Guide



About Firemagic :

  • Fire Magic Grills and products have been proudly crafted in the USA since 1937.
  • Their true width cooking grids offer some of the largest cooking areas by square inch in their size classes, so you can cook more food at once.
  • Get a great sear every time with their stainless-steel diamond sear cooking grids, which provide more surface contact for fast and even grilling.
  • You can create the perfect outdoor area with Fire Magic’s extensive line of grills and matching outdoor kitchen equipment.
