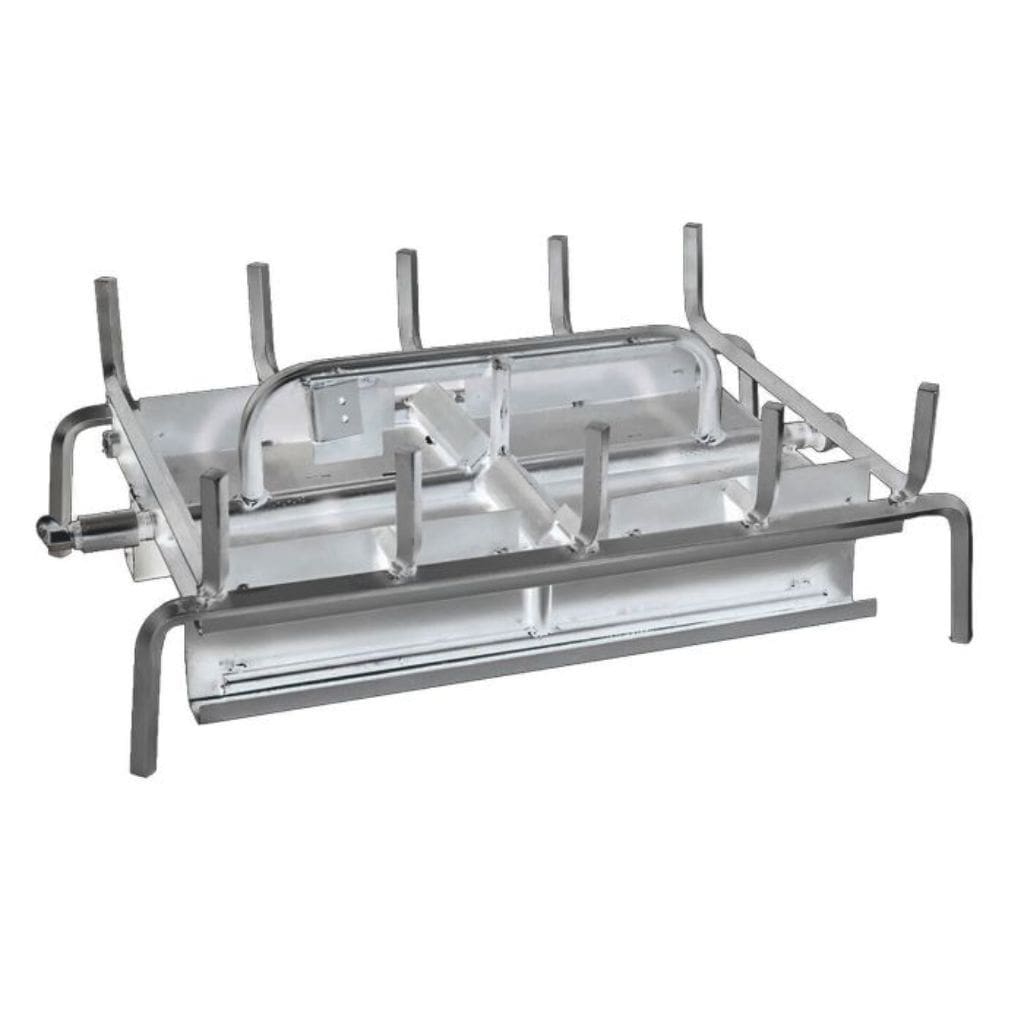

Grand Canyon 18" to 42" Outdoor Vented Stainless Steel See Through 3-Burner System

SKU:3BRN-ST18-SS

$1,413.00 USD

Fuel Type Natural Gas Propane

Size 18-Inch 24-Inch 30-Inch 36-Inch 42-Inch

Quantity

Grand Canyon Stainless Steel Double Sided 3 Burner System provides a high quality double sided burner component to help complete your ideal see-through gas fireplace. Grand Canyon's Double Sided 3 Burner system features complete 304 stainless steel construction for ultimate durability and performance indoors or outdoors while allowing for gas to flow in from either side of the burner. With 2 front burners on either side and an elevated middle burner tube, this component provides a substantial flame that is suitable for viewing from either side of your fireplace unit, adding a modern touch to your favorite space.

This burner package comes complete with metal bar stock and burner pipes, lava rock, necessary fittings, a flex line and the ember damper clamp. With (5) different burner size options and a propane or natural gas option, Grand Canyon has ensured a burner that will fit any style of living space, allowing you to achieve an area that your friends and family will love for years to come.

See Through Burners - 100% American manufactured burners listed and tested to the ANSI standard. Indoor burners feature stainless steel pan construction with metal bar stock and burner pipes and stainless steel burner for outdoor use.

Use with logs: Arizona Weathered Oak (AWO), Arizona Weathered Oak Charred (AWOC), Arizona Juniper (AJ), Quaking Aspen (ASPEN), and Driftwood.

Please Note:

Logs not included.

Features:

For outdoor use
Lifetime warranty
Stainless steel construction
100% American manufactured
LP version also include vermiculite
Listed and tested to ANSI standards
Includes lava rock, black embers, fittings, flex line, and damper clamp
Even distribution rear burner with dual action middle burner and dedicated ember glow burner

Specifications

18-Inch

Front Width: 18"
Depth: 16"
Back Width: 18"
Height: 8"
BTU Rating NG: 103K
BTU Rating LP: 93K

24-Inch

Front Width: 24"
Depth: 16"
Back Width: 24"
Height: 8"
BTU Rating NG: 118K
BTU Rating LP: 100K

30-Inch

Front Width: 30"
Depth: 16"
Back Width: 30"
Height: 8"
BTU Rating NG: 128K
BTU Rating LP: 115K

36-Inch

Front Width: 36"
Depth: 16"
Back Width: 36"
Height: 8"
BTU Rating NG: 135K
BTU Rating LP: 125K

42-Inch

Front Width: 42"
Depth: 16"
Back Width: 42"
Height: 8"
BTU Rating NG: 145K
BTU Rating LP: 125K

Options & Accessories

Click to see Control Valve Options

Manual Valve Kit (MA)

Manual On/Off w/ Knob or Wrench Operations ONLY
Low Profile Design
Max Inlet 14” W.C.
Valve Temp Rating 300°
90,000 BTU’s (NG/LP)
For use with:
- 2-Burner / Glass / Kiva
  18" - 42" (NG / LP)
- 3-Burner
  18" - 30" (NG/LP)

Safety Pilot Quick Mount Kit (SPQMKN / SPQMKLP)

Standing Pilot System
Manual On/Off Operations ONLY
Low Profile Design
Max Inlet 14” W.C.
Valve Temp Rating 300°
(NG) 90,000 BTU’s
(LP) 90,000 BTU’s
For use with:
- 2-Burner / Glass / Kiva
  18" - 30" (NG)
  18"- 42" (LP)
- 3-Burner
  18" - 24" (NG)
  18" - 36" (LP)

High Capacity Safety Pilot Kit (HCSPK-N / HCSPK-LP)

Standing Pilot System
Manual On/Off Operations ONLY
Max Inlet 14” W.C.
Valve Temp Rating 250°
(NG) 124,000 BTU’s
(LP) 200,000 BTU’s
GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
For use with:
- 2-Burner / Glass / Kiva
  18" - 42" (NG)
  18"- 60" (LP)
- 3-Burner
  18" - 42" (NG)
  18" - 42" (LP)
- Jumbo / Jumbo Slimline
  24" - 30" (NG)
  24"- 48" (LP)

Millivolt Quick Mount Kit (MVQMKN / MVQMKLP)

Standing Pilot System
On/Off Operations ONLY
Low Profile Design
Max Inlet 14” W.C.
Valve Temp Rating 175°
(NG) 3”-5” W.C. 70,000 BTU’s
(LP) 8”-12” W.C. 110,000 BTU’s
GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
For use with:
- 2-Burner / Glass / Kiva
  18" - 30" (NG)
  18" - 42" (LP)
- 3-Burner
  18" - 24" (NG)
  18" - 36" (LP)
- Jumbo / Jumbo Slimline
  24" - 30" (LP)

Modulating Millivolt Valve Kit with Remote (MMVKR-NG / MMVKR-LP)

Standing Pilot System
Variable Flame Height
Low Profile Design
Max Inlet 14” W.C.
Valve Temp Rating 225°
(NG) 7” W.C. 120,000 BTU’s
(LP) 7”-14” W.C. 120,000 BTU’s
For use with:
- 2-Burner / Glass / Kiva
  18" - 42" (NG)
  18" - 42" (LP)
- 3-Burner
  18" - 42" (NG)
  18" - 42" (LP)
- Jumbo / Jumbo Slimline
  24" - 30" (NG)
  24" - 30" (LP)

High Capacity Millivolt Valve Kit (HCMVQMKN / HCMVQMKLP)

Standing Pilot System
High Volume Output Millivolt System
On/Off Operations ONLY
Max Inlet 14” W.C.
Valve Temp Rating 175°
(NG) 3”-5” W.C. 370,000 BTU’s
(LP) 8”-12” W.C. 560,000 BTU’s
For use with:
- 2-Burner / Glass / Kiva
  18" - 60" (NG)
  18" - 42" (LP)
- 3-Burner
  18" - 42" (NG)
  18" - 42" (LP)
- Jumbo / Jumbo Slimline
  24" - 108" (NG)
  24" - 120" (LP)

Battery Powered Electronic Ignition System (MVKEIKN / MVKEIKLP)

Non-Standing Pilot
2-D Cell Battery Electronic Ignition
Pilot on Demand System
On/Off Operations ONLY
Max Inlet 14” W.C.
Valve Temp Rating 175°
(NG) 3”-7” W.C. 88,000 BTU’s
(LP) 8”-14” W.C. 110,000 BTU’s
GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
For use with:
- 2-Burner / Glass / Kiva
  18" - 42" (NG)
  18" - 42" (LP)
- 3-Burner
  18" - 30" (NG)
  18" - 36" (LP)
- Jumbo / Jumbo Slimline
  24" - 30" (LP)

Outdoor Electronic Ignition System
(EIS-OUTDOOR / EIS-OUTDOOR-LP)

Non-Standing Pilot
Pilot on Demand System
24V Electronic Ignition
On/Off Operations ONLY
In-Wall Design
(NG) 6’-10’ Pilot Assembly
(LP) 6’ Pilot Assembly
Max Inlet 14” W.C.
Valve Temp Rating 175°
(NG) 3”-7” W.C. 200,000 BTU’s
(LP) 8”-14” W.C. 320,000 BTU’s
GCRK (On/Off) remote / GCWS (On/Off) Wall Switch and WBPB-12/24 (Wifi / Blutooth Power Box) can be use with this kit (Not included - Sold separately)
For use with:
- 2-Burner / Glass / Kiva
  18" - 60" (NG)
  18" - 42" (LP)
- 3-Burner
  18" - 42" (NG)
  18" - 42" (LP)
- Jumbo / Jumbo Slimline
  24" - 60" (NG)
  24" - 96" (LP)

Click to see Weather Beater / Wall Switch / Remote Control & Power Box

Weather Beater Electronic Control System (WBECS)

Hot Surface Ignition System
Pilot on Demand System
LED Diagnostics
12V Electronic Ignition
On/Off Operations ONLY
24” Pilot Assembly
CSA Certified Control System
Max Inlet 14” W.C.
Valve Temp Rating 175°
WBECS: 265K BTU (NG/LP)
HC-WBECS: 500K BTU (NG/LP)
Use with Grand Canyon fire pits, fire tables, and outdoor burners

Wall Switch (GCWS)

Basic wall switch kit
Basic on/off operations
For indoor or outdoor use
15 foot 10-2 low voltage wire
Rocker switch and cover included
For Use With:

HCSPK-N & HCSPK-LP
MVQMKN & MVQMKLP
HCMVQMKN & HCMVQMKLP
MVKEIKN & MVKEIKLP
ALL EIS Configurations

Remote Control Kit (GCRK)

Basic On/Off Operations
RF Transmitter & Receiver
LCD Temp Display
Includes Batteries & Wall Plate
For Use With:

HCSPK-N & HCSPK-LP
MVQMKN & MVQMKLP
HCMVQMKN & HCMVQMKLP
MVKEIKN & MVKEIKLP
ALL EIS Configurations

110V Plug-In Remote Control Kit (GCRK-110)

110V plug-in
Includes batteries
Basic on/off operations
RF transmitter and receiver
For Use With: (WBECS) Weather Beater Electronic Control System Only

Weather Beater Wifi/Bluetooth Power Box (WBPB-12/24)

Installs in-wall
12V/24V system
Optional accessory
Connect with your home
Automation or weather smart app
Designed for all EIS configurations
Weather beater Wi-Fi and Bluetooth power box
