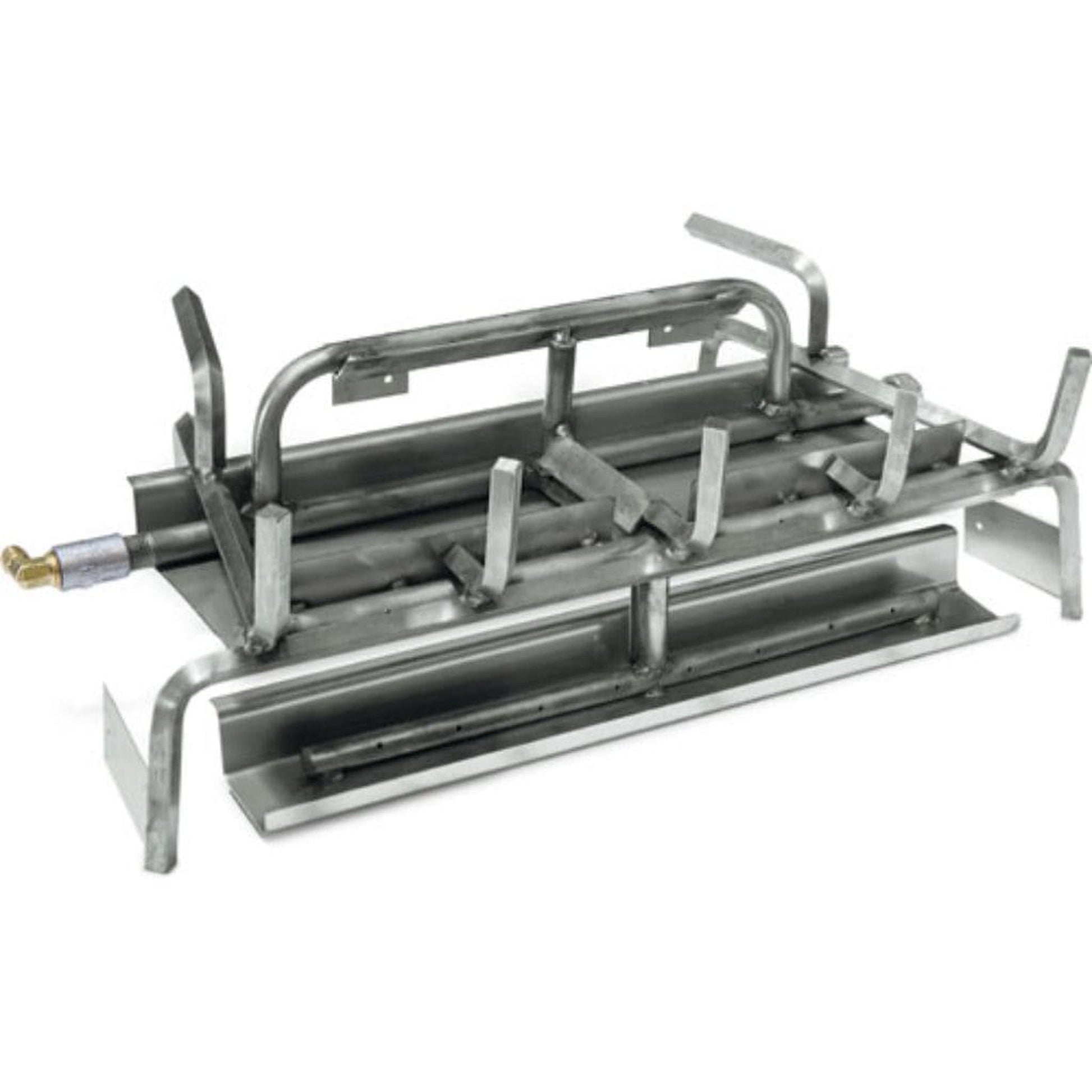

Grand Canyon 18" to 42" Outdoor Vented Stainless Steel 3-Burner System

SKU:3BRN-18-SS

$847.00 USD

Fuel Type Natural Gas Propane

Size 18-Inch 21-Inch 24-Inch 30-Inch 36-Inch 42-Inch

Quantity

Grand Canyon Stainless Steel 3 Burner System provides a high quality burner component to help complete your ideal gas fireplace. Grand Canyon's 3 Burner system features 100%, 304 stainless steel construction for ultimate durability and performance indoors or outdoors while allowing for gas to flow in from either side of the burner. With 1 elevated back burner that stretches across the entire rear of the burner, 1 middle burner that rolls over the front log, and 1 ember burner, this component is sure to create enough heat to give your living space a much more comfortable atmosphere while the burner tines can be raised or lowered depending on the size of your fireplace opening and preferred log style.

This burner package comes complete with metal bar stock and burner pipes, lava rock, necessary fittings, a flex line and the ember damper clamp. With (6) different burner size options and a propane or natural gas option, Grand Canyon has ensured an outdoor rated burner that will fit any style of living space, allowing you to achieve an area that your friends and family will love for years to come.

Vented Burners - 100% American manufactured burners listed and tested
to the ANSI standard. Indoor burners feature stainless steel pan construction
with metal bar stock and burner pipes.

Use with logs: Arizona Weathered Oak (AWO), Arizona Weathered Oak Charred (AWOC), Arizona Juniper (AJ), Quaking Aspen (ASPEN), Driftwood, and Blue Pine Split (BPS).

Please Note: Logs Not Included.

Features:

Sizing: 18" – 42"
Style: Even Distribution Rear Burner with Dual Action Middle Burner & Dedicated Ember Glow Burner
Standards: Built to ANSI Standards
Usage: Outdoor
Materials: 100% Stainless Steel Construction
Warranty: Lifetime Warranty
Piping: 1/2" Piping & ½" Bar Stock
Fittings: Gas Inlet Left or Right
Convertible to LP: NG Burner Convertible to LP
Media: Includes Lava Rock, Embers, & Connection Fittings
Pilot: Concealed Pilot Mounting Brackets
Design: Fully Welded System with Sandless Design

Specifications

18-Inch

Front Width: 18"
Depth: 12"
Back Width: 11"
Height: 8"
BTU Rating NG: 46K
BTU Rating LP: 41K

21-Inch

Front Width: 21"
Depth: 12"
Back Width: 13"
Height: 8"
BTU Rating NG: 58K
BTU Rating LP: 58K

24-Inch

Front Width: 24"
Depth: 12"
Back Width: 16"
Height: 8"
BTU Rating NG: 74K
BTU Rating LP: 64K

30-Inch

Front Width: 30"
Depth: 14"
Back Width: 22"
Height: 8"
BTU Rating NG: 102K
BTU Rating LP: 91K

36-Inch

Front Width: 36"
Depth: 14"
Back Width: 27"
Height: 8"
BTU Rating NG: 111K
BTU Rating LP: 106K

42-Inch

Front Width: 42"
Depth: 14"
Back Width: 33"
Height: 8"
BTU Rating NG: 120K
BTU Rating LP: 121K

Options & Accessories

Click to see Control Valve Options

Manual Valve Kit (MA)

Manual On/Off w/ Knob or Wrench Operations ONLY
Low Profile Design
Max Inlet 14” W.C.
Valve Temp Rating 300°
90,000 BTU’s (NG/LP)
For use with:
- 2-Burner / Glass / Kiva
  18" - 42" (NG / LP)
- 3-Burner
  18" - 30" (NG/LP)

Safety Pilot Quick Mount Kit (SPQMKN / SPQMKLP)

Standing Pilot System
Manual On/Off Operations ONLY
Low Profile Design
Max Inlet 14” W.C.
Valve Temp Rating 300°
(NG) 90,000 BTU’s
(LP) 90,000 BTU’s
For use with:
- 2-Burner / Glass / Kiva
  18" - 30" (NG)
  18"- 42" (LP)
- 3-Burner
  18" - 24" (NG)
  18" - 36" (LP)

High Capacity Safety Pilot Kit (HCSPK-N / HCSPK-LP)

Standing Pilot System
Manual On/Off Operations ONLY
Max Inlet 14” W.C.
Valve Temp Rating 250°
(NG) 124,000 BTU’s
(LP) 200,000 BTU’s
GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
For use with:
- 2-Burner / Glass / Kiva
  18" - 42" (NG)
  18"- 60" (LP)
- 3-Burner
  18" - 42" (NG)
  18" - 42" (LP)
- Jumbo / Jumbo Slimline
  24" - 30" (NG)
  24"- 48" (LP)

Millivolt Quick Mount Kit (MVQMKN / MVQMKLP)

Standing Pilot System
On/Off Operations ONLY
Low Profile Design
Max Inlet 14” W.C.
Valve Temp Rating 175°
(NG) 3”-5” W.C. 70,000 BTU’s
(LP) 8”-12” W.C. 110,000 BTU’s
GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
For use with:
- 2-Burner / Glass / Kiva
  18" - 30" (NG)
  18" - 42" (LP)
- 3-Burner
  18" - 24" (NG)
  18" - 36" (LP)
- Jumbo / Jumbo Slimline
  24" - 30" (LP)

Modulating Millivolt Valve Kit with Remote (MMVKR-NG / MMVKR-LP)

Standing Pilot System
Variable Flame Height
Low Profile Design
Max Inlet 14” W.C.
Valve Temp Rating 225°
(NG) 7” W.C. 120,000 BTU’s
(LP) 7”-14” W.C. 120,000 BTU’s
For use with:
- 2-Burner / Glass / Kiva
  18" - 42" (NG)
  18" - 42" (LP)
- 3-Burner
  18" - 42" (NG)
  18" - 42" (LP)
- Jumbo / Jumbo Slimline
  24" - 30" (NG)
  24" - 30" (LP)

High Capacity Millivolt Valve Kit (HCMVQMKN / HCMVQMKLP)

Standing Pilot System
High Volume Output Millivolt System
On/Off Operations ONLY
Max Inlet 14” W.C.
Valve Temp Rating 175°
(NG) 3”-5” W.C. 370,000 BTU’s
(LP) 8”-12” W.C. 560,000 BTU’s
For use with:
- 2-Burner / Glass / Kiva
  18" - 60" (NG)
  18" - 42" (LP)
- 3-Burner
  18" - 42" (NG)
  18" - 42" (LP)
- Jumbo / Jumbo Slimline
  24" - 108" (NG)
  24" - 120" (LP)

Battery Powered Electronic Ignition System (MVKEIKN / MVKEIKLP)

Non-Standing Pilot
2-D Cell Battery Electronic Ignition
Pilot on Demand System
On/Off Operations ONLY
Max Inlet 14” W.C.
Valve Temp Rating 175°
(NG) 3”-7” W.C. 88,000 BTU’s
(LP) 8”-14” W.C. 110,000 BTU’s
GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
For use with:
- 2-Burner / Glass / Kiva
  18" - 42" (NG)
  18" - 42" (LP)
- 3-Burner
  18" - 30" (NG)
  18" - 36" (LP)
- Jumbo / Jumbo Slimline
  24" - 30" (LP)

Outdoor Electronic Ignition System
(EIS-OUTDOOR / EIS-OUTDOOR-LP)

Non-Standing Pilot
Pilot on Demand System
24V Electronic Ignition
On/Off Operations ONLY
In-Wall Design
(NG) 6’-10’ Pilot Assembly
(LP) 6’ Pilot Assembly
Max Inlet 14” W.C.
Valve Temp Rating 175°
(NG) 3”-7” W.C. 200,000 BTU’s
(LP) 8”-14” W.C. 320,000 BTU’s
GCRK (On/Off) remote / GCWS (On/Off) Wall Switch and WBPB-12/24 (Wifi / Blutooth Power Box) can be use with this kit (Not included - Sold separately)
For use with:
- 2-Burner / Glass / Kiva
  18" - 60" (NG)
  18" - 42" (LP)
- 3-Burner
  18" - 42" (NG)
  18" - 42" (LP)
- Jumbo / Jumbo Slimline
  24" - 60" (NG)
  24" - 96" (LP)

Click to see Weather Beater / Wall Switch / Remote Control & Power Box

Weather Beater Electronic Control System (WBECS)

Hot Surface Ignition System
Pilot on Demand System
LED Diagnostics
12V Electronic Ignition
On/Off Operations ONLY
24” Pilot Assembly
CSA Certified Control System
Max Inlet 14” W.C.
Valve Temp Rating 175°
WBECS: 265K BTU (NG/LP)
HC-WBECS: 500K BTU (NG/LP)
Use with Grand Canyon fire pits, fire tables, and outdoor burners

Wall Switch (GCWS)

Basic wall switch kit
Basic on/off operations
For indoor or outdoor use
15 foot 10-2 low voltage wire
Rocker switch and cover included
For Use With:

HCSPK-N & HCSPK-LP
MVQMKN & MVQMKLP
HCMVQMKN & HCMVQMKLP
MVKEIKN & MVKEIKLP
ALL EIS Configurations

Remote Control Kit (GCRK)

Basic On/Off Operations
RF Transmitter & Receiver
LCD Temp Display
Includes Batteries & Wall Plate
For Use With:

HCSPK-N & HCSPK-LP
MVQMKN & MVQMKLP
HCMVQMKN & HCMVQMKLP
MVKEIKN & MVKEIKLP
ALL EIS Configurations

110V Plug-In Remote Control Kit (GCRK-110)

110V plug-in
Includes batteries
Basic on/off operations
RF transmitter and receiver
For Use With: (WBECS) Weather Beater Electronic Control System Only

Weather Beater Wifi/Bluetooth Power Box (WBPB-12/24)

Installs in-wall
12V/24V system
Optional accessory
Connect with your home
Automation or weather smart app
Designed for all EIS configurations
Weather beater Wi-Fi and Bluetooth power box
