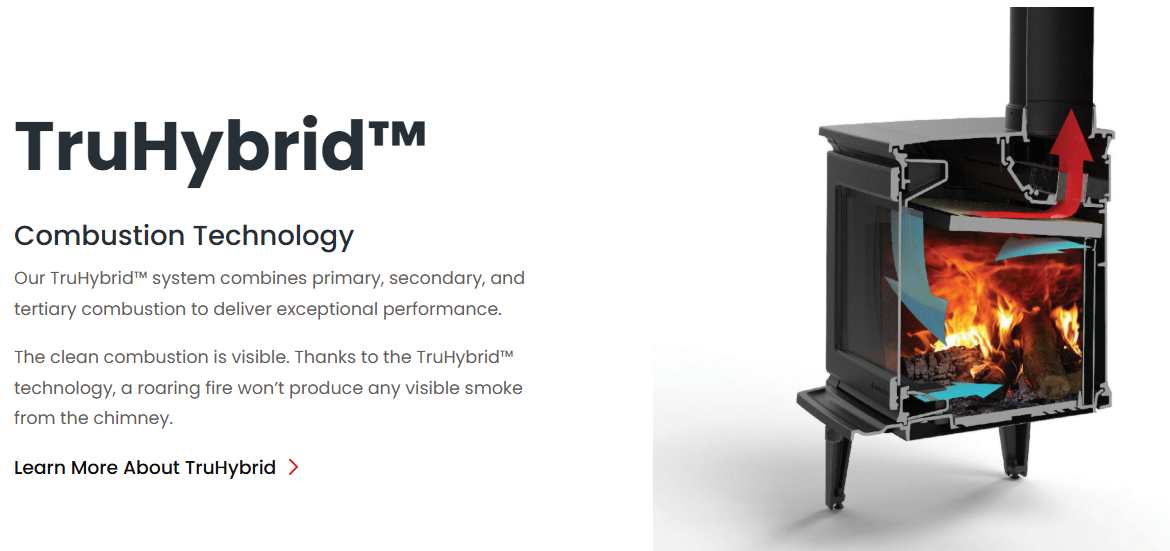

TruHybrid™ System

A 4-tube secondary combustion system with a fixed baffle ensures a clean burn before the catalyst performs the finishing touches.

Convenient Firebox

The square shape of the Castleton creates an 19″ wide by 17″ deep firebox. It is perfect for loading and arranging firewood.

Easy to Use

Turn your stove to high and stoke a big fire. Turn it all the way down to keep a fire burning overnight.

Specifications

BTU: Up to 45,000

Efficiency: 77.3%

EPA Certified: 0.98

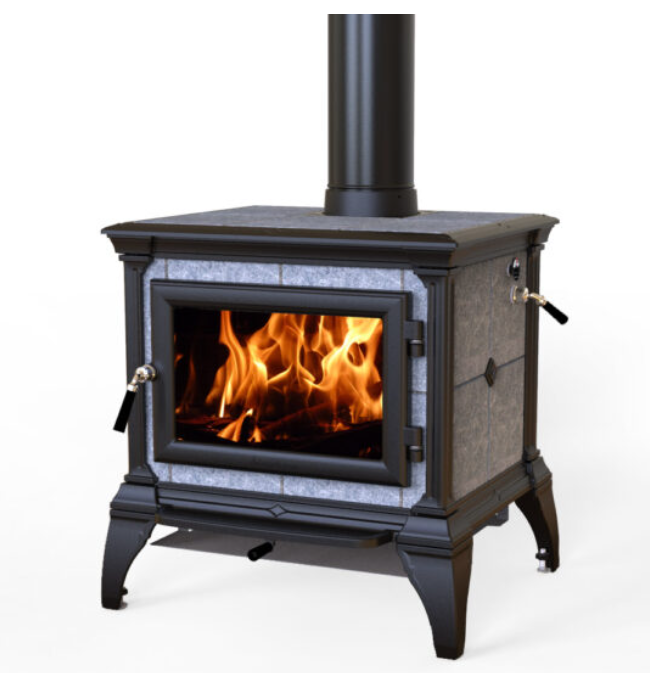

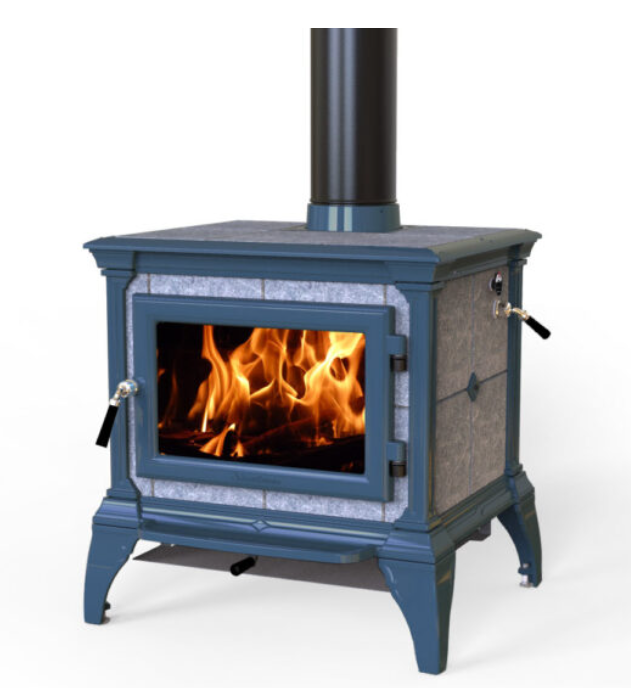

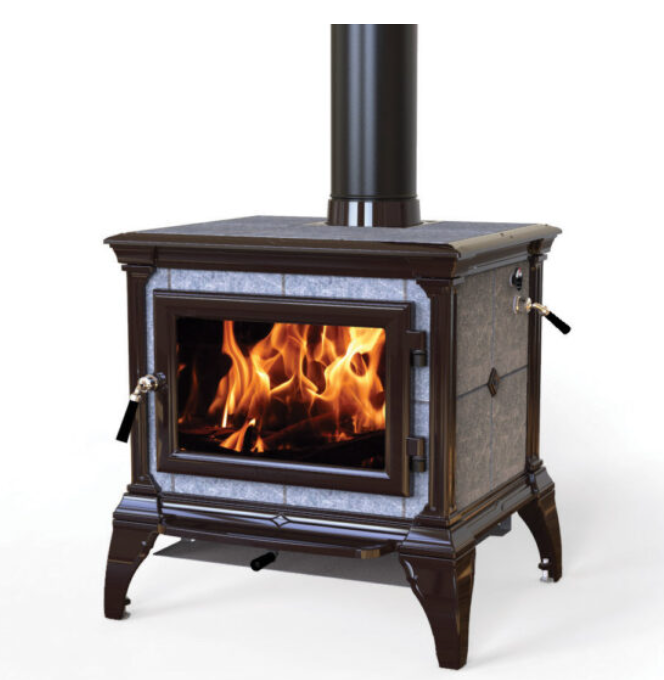

Finish: Brown Enamel, Matte Black, Seafoam Enamel

Firebox Capacity: 1.9 cu ft

Flue Exit Diameter: 6

Flue Exit Location: Top or Rear

HeatLife: 20 Hours of heat

Heats up to: 1,500

Maximum Log Length: 18″

Model: 8031

Stove Type: Soapstone Wood Stove

Weight: 475

Accessories

Rear Heat Shield: 90-68300

Convection Blower: 90-57210

Outside Air Adapter: 90-53300

Clearances

• Side: 17″
• Rear: 15″
• Corner: 8″
  Single-wall connector pipe, no rear heat shield

• Side: 17″
• Rear: 8″
• Corner: 8″
  Double-wall connector pipe with rear heat shield
