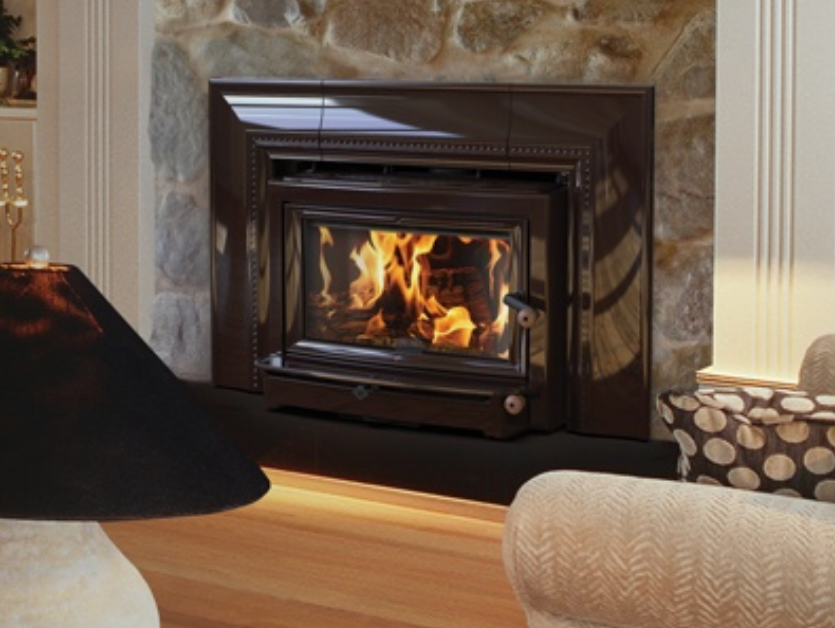

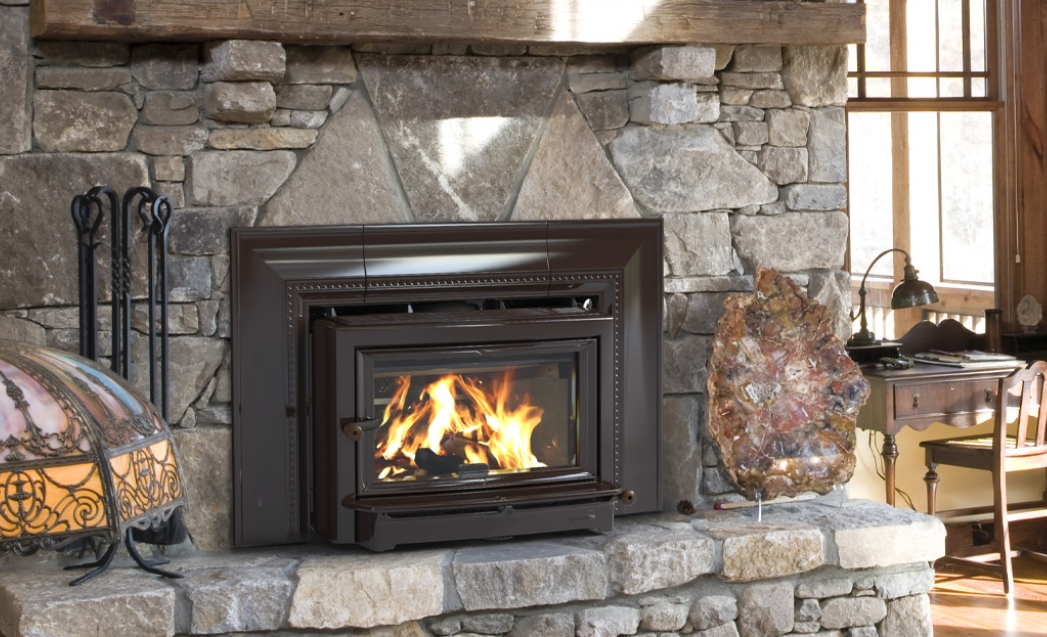

Hearthstone Clydesdale Wood Fireplace Insert

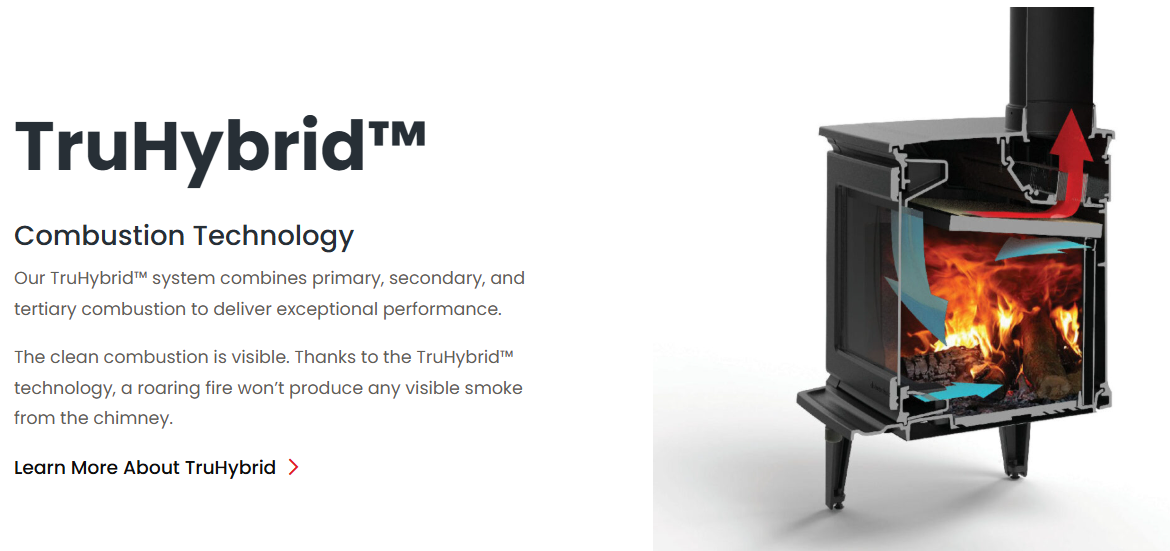

TruHybrid Efficiency

Clean-burning, highly efficient, and easy to operate, the Clydesdale uses our TruHybrid™ technology. Engage the catalyst and turn your stove down for slow and efficient overnight burns.

Open view of the fire

The Clydesdale’s large open window lets you see as much fire as possible. Enjoy the ambiance of a fireplace and the efficiency of HearthStone.

Soapstone firebox

Burn up to 24 inch logs in the soapstone lined firebox. Soapstone retains the maximum heat from your fire and radiates steady warmth as your insert burns.

Specifications

Blower: Included

BTU: Up to 60,000

Efficiency: 79%

EPA Certified: 1.16

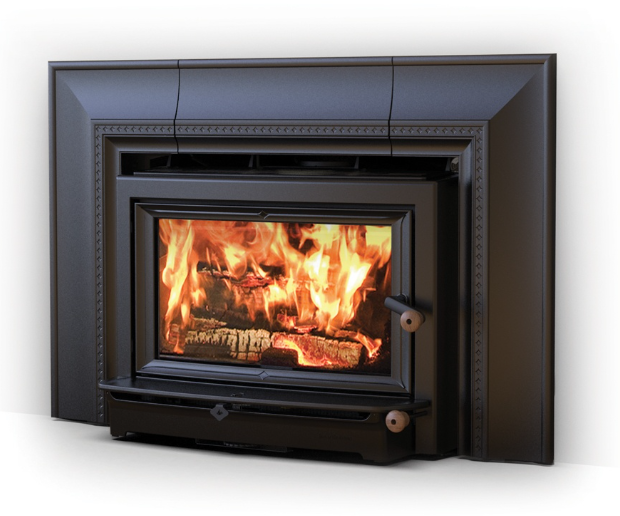

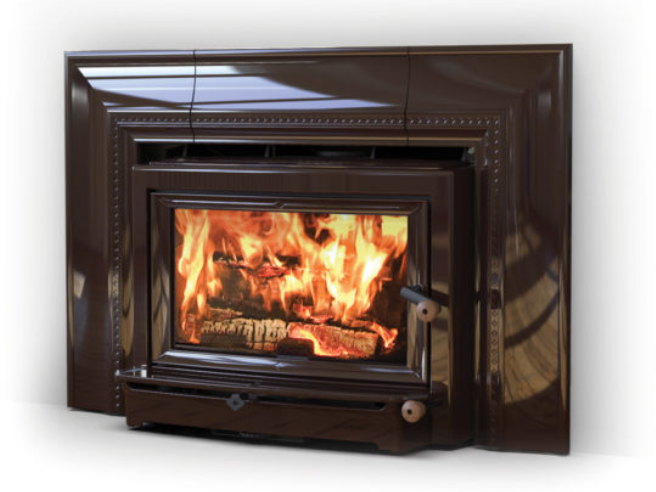

Finish: Brown Enamel, Matte Black

Firebox Capacity: 2.4 cu ft

Flue Exit Diameter: 6

Flue Exit Location: Top, 2 positions

HeatLife: 24 Hours of heat

Heats up to: 2,000 sq ft

Maximum Log Length: 22″

Model: 8492

Stove Type: Wood Fireplace Insert

Weight: 550 lbs

Accessories

Surround Extension: 94-5990010

Surround Base Caps: 94-5970610/20

Mantel Shield: 94-79700

Installation

Minimum Fireplace Opening:
32 1⁄2″ Width* x 23 1⁄4″ Height* x 13″ Depth

* Hearth may taper to 27″ Width x 21″ Height at the back wall

Minimum Hearth Protection:

• Masonry hearths 7″ or higher: Ember Protection Only
• Hearths less than 7″ tall: Insulation Required, R-1.5


Clearances:

• 8″ combustible mantel from bottom of insert – 39½”
• 8″ shielded mantel from bottom of insert – 33⅜”
• To side trim from side of insert body – 8″
• To side wall from side of insert body – 11″
