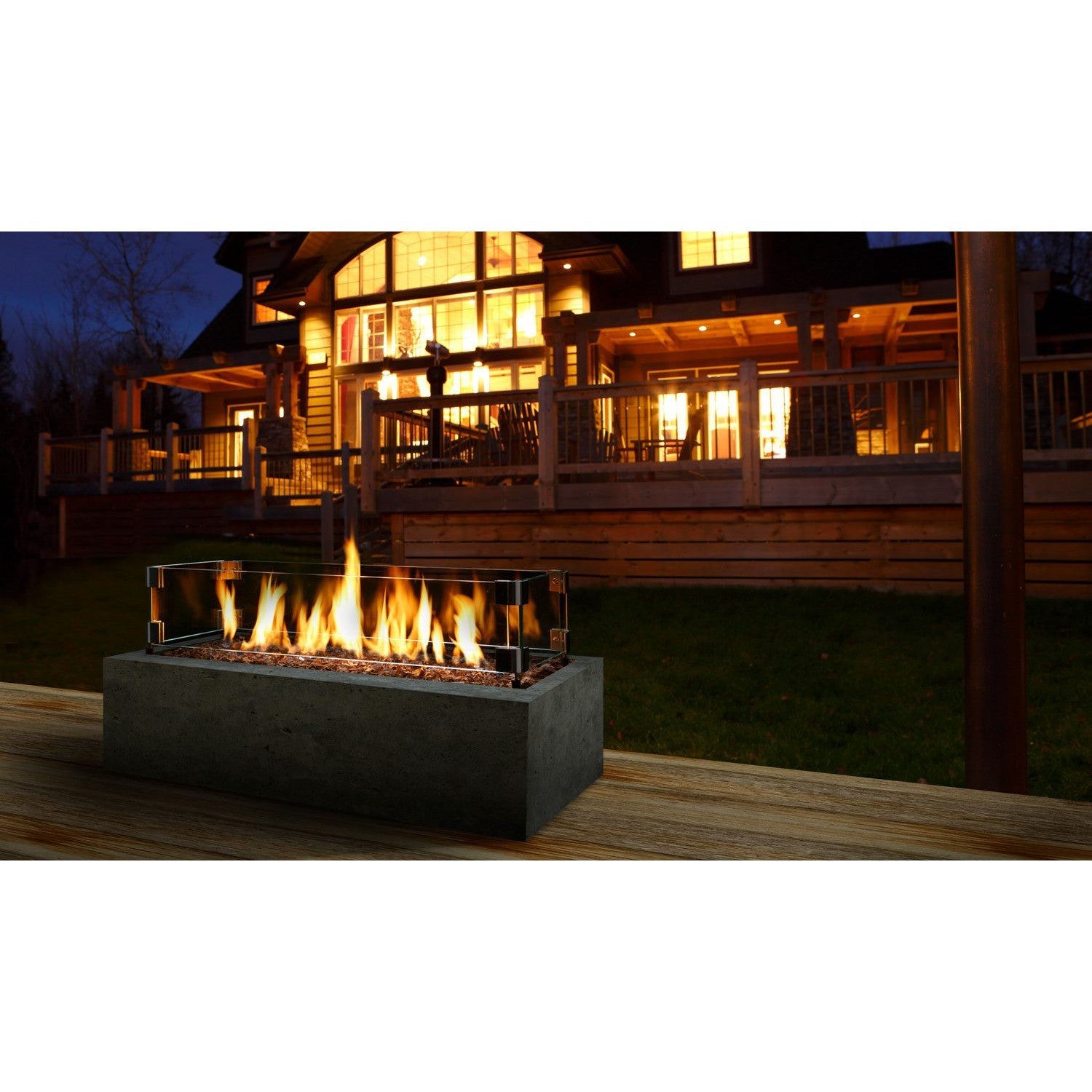

Kingsman Barbara Jean 24" Intermittent Pilot Proflame 2 Control, Natural Gas Outdoor Linear Burner
Kingsman Barbara Jean 24" Intermittent Pilot Proflame 2 Control, Natural Gas Outdoor Linear Burner
SKU:OB24IPN
Couldn't load pickup availability
Completely flexible, the Linear Outdoor Burner is the perfect project for do-it-yourselfers. Five sizes available (24, 36, 48, 72, 96") and for longer lengths simply link them together to create your own custom size!
Plus, adding decorative glass, cannonballs and wind guard options ensure you create the look you want. When you have achieved your desired look, invite family and friends to gather around for a perfect get together outdoors.
All burners are manufactured with Satin Coat steel with a high temperature black paint finish. Satin Coat steel is pretreated with a Zinc coating for corrosion resistance and paint adhesion.
Note: This is a burner system only. A customer supplied or separately purchased table or enclosure is needed to house this burner system.
What's Included
- 24" Outdoor Linear Gas Burner
- Remote Control
Not Included (Sold Separately)
- Bronze Glass Media (Required)
- Wind Guard (Required)
- Gas Conversion Kit
Note: : Glass Media 5 lbs per foot of burner (for 24" burner - 10 lbs is Required)
Features
- 24 Inch Outdoor Linear Fireplace Burner
- Certified for USA and Canada to ANSI Z21.97-2017, CSA 2.41-2017
- Converts to use liquid propane with the optional fuel conversion kit
- Features flame height modulation and multi-color LED accent lighting control
Specifications
Model | OB24IPN |
Valve | IPI Proflame 2 |
Size | 24" |
Fuel | Natural Gas |
Input | 40,000 BTU |
Burner Dimensions for Custom Applications (Add 1/8" per side for tolerance) |
Width | 7" |
Length | 26" |
Depth | 2" |
Warranty
- This limited warranty applies only while the unit remains at the site of the original installation and only if the unit is installed inside the continental United States, Alaska, Hawaii and Canada. The warranty applies only if the unit is installed and
operated in accordance with the printed instructions and in compliance with applicable installation, building codes and good trade practices. - The burner is warranted against defects for five years. All other components such as gas valves, thermocouples, igniters, lights and media are warranted against defects for one year.
- This limited warranty further does not cover any scratches, dents, painted finishes, corrosion or discoloring by heat, abrasive and chemical cleaners, nor chipping on porcelain powder coated parts.
