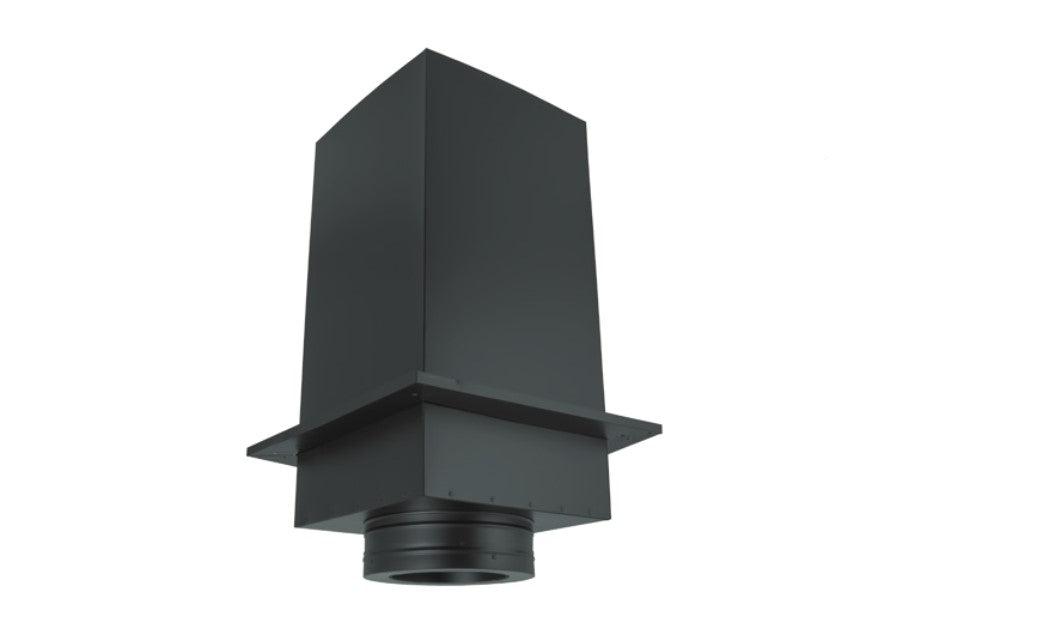

Majestic DuraTech 6" x 36" Black Square Ceiling Support Box
Majestic DuraTech 6" x 36" Black Square Ceiling Support Box
SKU:DV-6DT-CS36
Couldn't load pickup availability
With a Refractory insulation encased between dual walls, DuraTech offers the optimum in safety and performance. It keeps the outer wall of the chimney cool while ensuring high flue gas temperatures for optimum draft performance.
What's Included
- 36" Square Ceiling Support Box
Features
- 6" DuraTech component
- Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist-lock.
- Suitable for both flat and cathedral (A-Frame) ceiling applications.
- Also use in short attic spaces (see instructions).
- Fits between standard 16” on-center joists and most manufactured home applications.
- Supports up to 60' of DuraTech Chimney.
- Use adapter to attach DVL or DuraBlack to the support box.
- A 2” wide trim collar is included.
- Painted black. (For adapters see DVL/DuraBlack section.)
Specifications
| Model | DV-6DT-CS36 |
| Product Type | Square Ceiling Support Box |
| Venting Model | DuraTech |
| Size | 6" |
| Height | 36" |
| A | 6 1⁄4” |
| B | 9” |
| C | 12” |
Technical Dimensions
Ceiling Pitch
| DURABLACK | DVL | USE |
| 0/12 - 4/12 | 0/12 - 6/12 | 11” Support box |
| 5/12 - 9/12 | 7/12 - 13/12 | 24” Support box |
| 10/12 - 14/12 | 14/12 - 20/12 | 36” Support box |
