LO-RIDER LCUF VENT FREE FIREBOX
For a true masonry look, the Lo-Rider Series features a low profile hearth, so the firebox appears to nearly rest on the floor, providing the tallest fireplace opening and a truly expansive viewing area.
Its name says it all! The flush hearth design of our Lo-Rider vent free firebox mimics the look of a true wood-burning fireplace. Your favorite Monessen vent free log set, hide-away screen pockets and extra tall opening show off your fireplace in unparalleled style. And, like all of our fireboxes, the Lo-Rider’s design delivers maximum heat to your space, while the ventless zero clearance design gives you the flexibility to install just about anywhere.
The LCUF series of vent free fireboxes from Monessen offers flexibility with 3 sizes - 32, 36 and 42 inches - and the option of circulating or radiant design to suit your requirements perfectly.
Available with your choice of firebrick as well as a range of optional accessories, the LCUF series is easy to incorporate into your design requirements.
A Monessen vent free firebox is the perfect way to display and operate your Monessen vent free log set. While our log sets can be utilized in an existing approved wood burning fireplace (converted with a gas line), if your home does not already have an existing fireplace, a vent free firebox is an economical way to add a fireplace to your home. Installed in either your wall or a free-standing cabinet, a vent free firebox is simply the metal combustion chamber of a traditional fireplace system, without the log set and engine. You then add the vent free log set (with engine) of your choice to complete it.
Monessen offers one of the most diverse lineups of vent free gas fireboxes available, making it easy to find the right look for your home. Enjoy beautiful flames, excellent heating and a customized look with the addition of your choice of Monessen log sets.
Because vent free fireboxes and log sets are designed to be installed and operated without a chimney, flue or vent, they can be installed in locations in your home where it would be impossible or cost prohibitive to install a vented fireplace. They provide the most economical installation, only requiring a connection to a gas line.
Monessen vent free fireboxes allow for zero clearance installation, which means they may be installed flush against any combustible surface such as drywall or wood. This gives you added flexibility and helps save installation dollars when deciding where to install your fireplace, whether on an interior or exterior wall. (It is important to remember that the appliance should be sized to fit the area in which it is to be installed and must meet any additional regional or local requirements.
Monessen offers a large selection of vent free log sets (sold separately) that are a perfect complement to your new fireplace.
FEATURES
- Low profile hearth
- Includes black hood
- CSA design certified
- Curtain fire screen
- Hide-away screen pockets
- Optional outside air kit available
- Tallest opening available for a full view of fire
- Electrical junction box included for hook up
- The 32" accommodates most 18" and 24" vent free logs
- Standard stacked concrete liner provides a true masonry look
- Radiant face design with heat circulating air ducts for optional blower
- Large selection of field installed options, including several styles of designer facings
* Please Note: This item is a vent free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.
PRODUCT SPECIFICATIONS
| Lo-Rider LCUF 32 | LCUF32CR-B |
| Size: | 32 |
| Appliance Width: | 38" |
| Appliance Height: | 37-1/2" |
| Appliance Depth1: | 22-3/4" |
| Hearth Front Width: | 29-3/4" |
| Hearth Front Height: | 29-3/4" |
| Hearth Depth: | 15-1/4" |
| Hearth Rear Width: | 21-5/8" |
| Hearth Rear Height: | 28-1/4" |
| Viewing Area: | 32 x 30-3/4" |
VENTING SPECIFICATIONS
- Vent-free units do not require any venting products
PRODUCT DIMENSIONS
- Overall dimensions - 38" W (front) x 37 1/4" H x 22 3/4" D x 26" W (rear)
- Rough framing dimensions - 38 3/4" W x 37 3/4" H x 23" D
- Minimum hearth dimensions - 29 3/4" W (front) x 29 3/4" H x 15 1/4" D x 21 5/8" W (rear)
- Weight - 130 lbs.

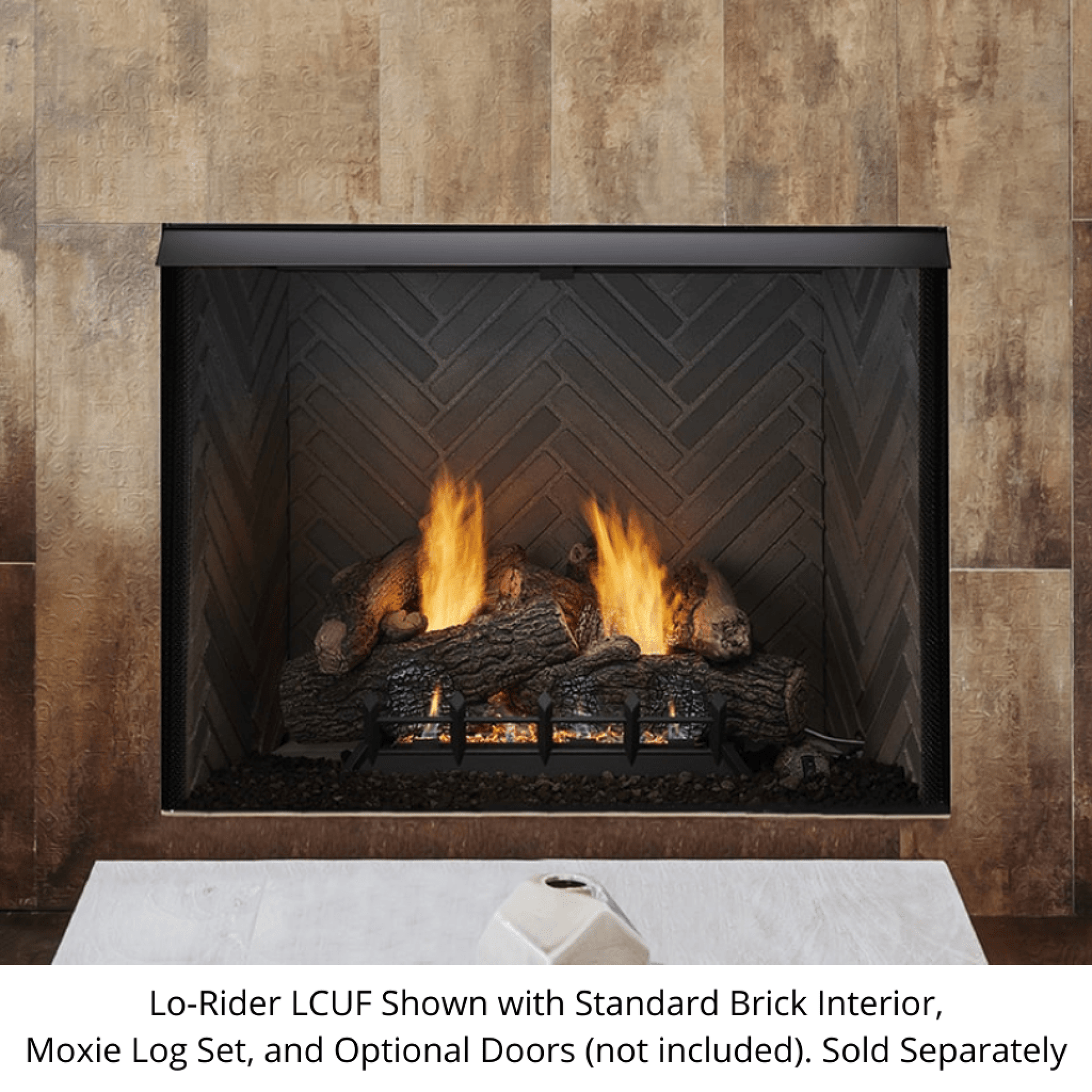

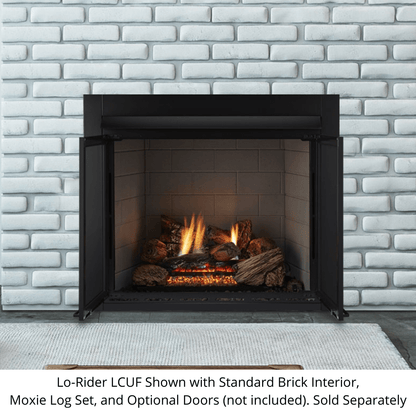

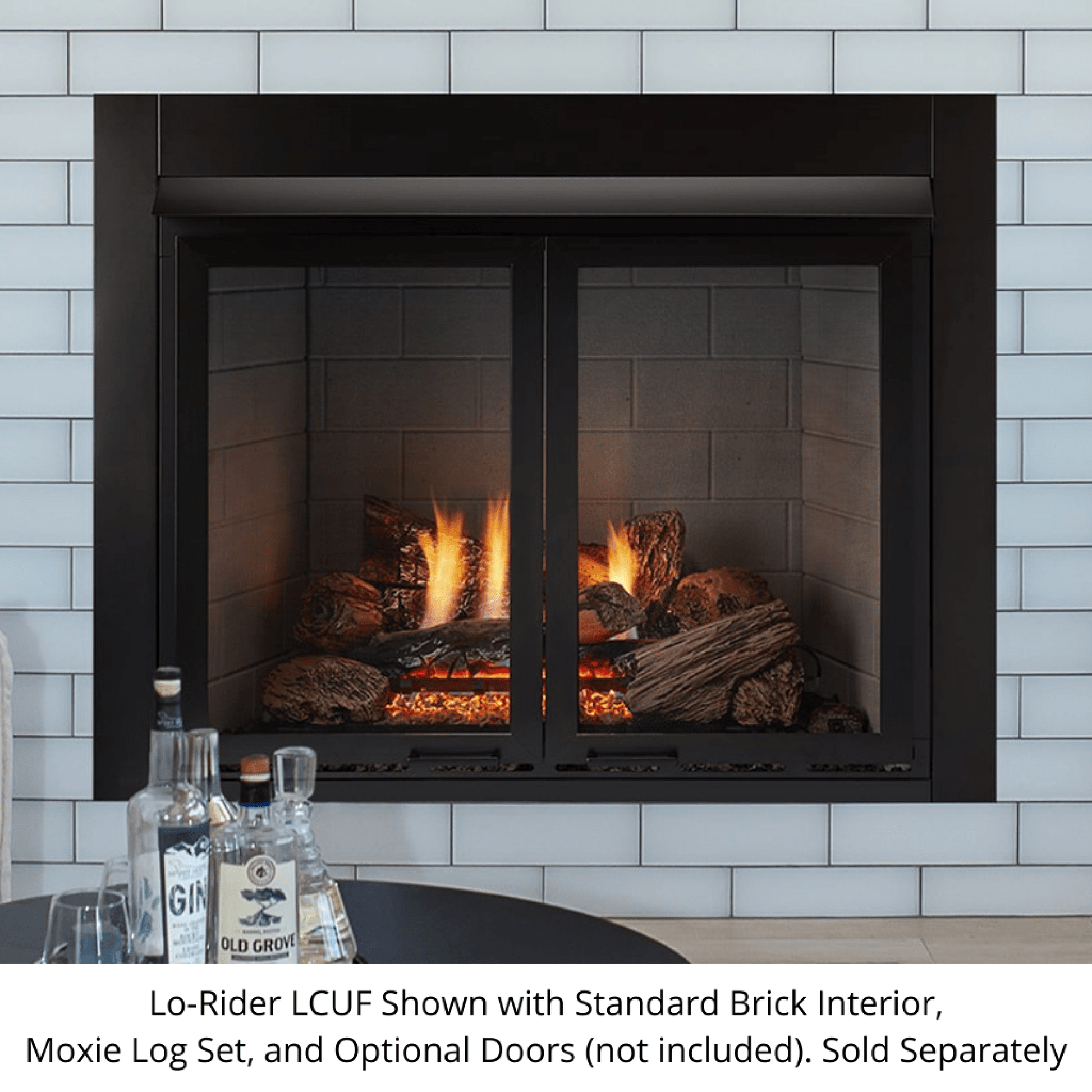

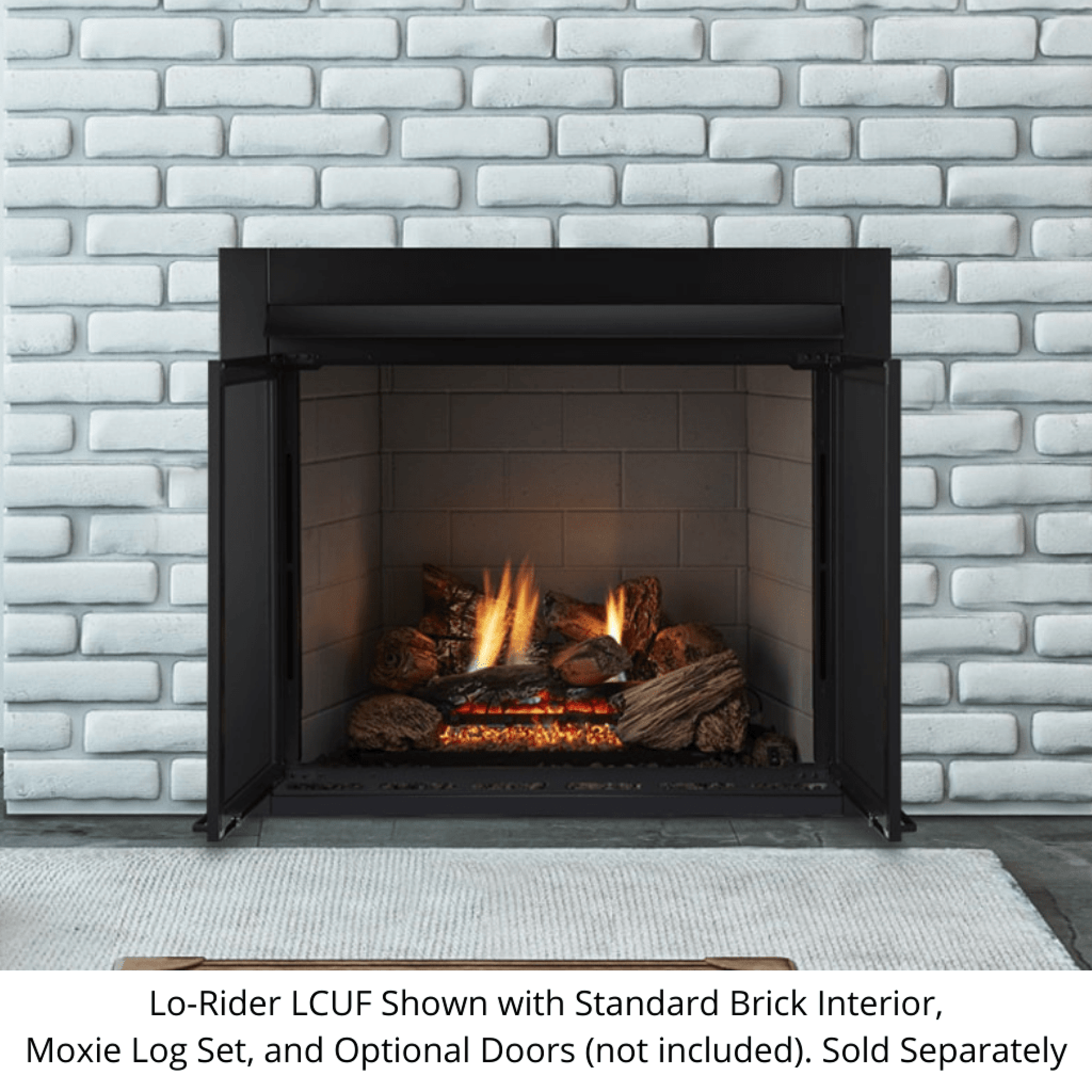

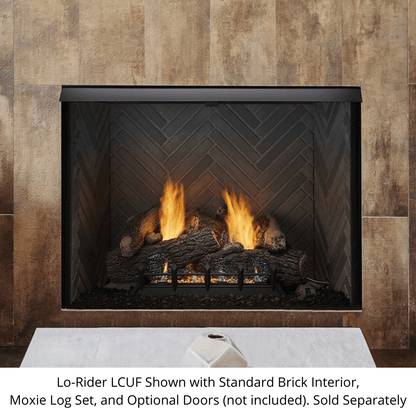

SHOWN WITH
- Black Hood (standard)
- Stacked Traditional Firebrick Liner (standard)
- Black Decorative Doors (optional)
- 18" Moxie Burncrete Log Set (optional)
- 18" Glow Getter Burner (optional)
- Custom Installation and Surround
CA Residents: See Prop 65 WARNING
CORNER INSTALLATION
FRONT VIEW
MINIMUM HEARTH DIMENSIONS
SIDE VIEW
TOP VIEW
OPTIONS & ACCESSORIES
Burners (Required to Complete)
Click to see Burners
 | EYF18PM/EYF18NM/EYF18PV/EYF18NV Monessen popular EYF burner raise for dancing flames. Enjoy dancing, realistic flames with the EYF burner. The available EYF burner produces a fine yellow flame, heavy duty grate assembly adds an authentic touch. FEATURES - Fuel Type: NG or LP
- Ignition Type: Manual Control/Millivolt Control
- Burner Only: 18" EYF Burner
- For use with firebox
- Use with 18" Mountain Oak 4-piece Multi-Log Set
* Please Note: This is for the gas burner only. No logs are included. |
 | GG18NV/GG18PV Glow Getter burner are available in 18" and 24" sizes, these burners feature a cast iron grate, volcanic rock, rock wool, on/off switch, manual variable flame height control and are remote ready. FEATURES - Fuel Type: NG or LP
- Ignition Type: Millivolt Control
- Burner Only: 18" Glow Getter Burner
- For use with firebox
- Use with 18" Burncrete Hybrid 8 pc Charisma, 18" Burncrete Hybrid 7 pc Dynamo and 18" Burncrete Hybrid 8 pc Moxie Log Set.
* Please Note: This is for the gas burner only. No logs are included. |
| GG18NIF/GG18PIF Glow Getter burner are available in 18" and 24" sizes, these burners formats. Featuring the IntelliFire Plus with ODS system for five-step flame adjustment, these burners come complete with cast iron grate, volcanic rock, rock wool, on/off switch, touch button command center, electronic ignition and RC300 thermostat remote control. FEATURES - Fuel Type: NG or LP
- Ignition Type: IPI Control
- Burner Only: 18" Glow Getter Burner
- For use with firebox
- Use with 18" Burncrete Hybrid 8 pc Charisma, 18" Burncrete Hybrid 7 pc Dynamo and 18" Burncrete Hybrid 8 pc Moxie Log Set.
* Please Note: This is for the gas burner only. No logs are included. |
 | NB18NV/NB18PV Natural Blaze burner available in 18" and 24" sizes, these burners come in both natural and propane gas formats and feature a cast iron grate, volcanic rock, rock wool, on/off switch, manual variable flame height control and are remote ready. FEATURES - Fuel Type: NG or LP
- Ignition Type: Millivolt Control
- Burner Only: 18" Natural Blaze Burner
- For use with firebox
- Use with 18" Beachcomber Burncrete refractory 6-piece log set, 18" Berkley Oak fiber ceramic 7-piece log set, 18" Berkley Oak refractory 7-piece log set, 18" Highland Oak Refractory 7-piece log set and 18" Stony Creek refractory 11-piece log set.
* Please Note: This is for the gas burner only. No logs are included. |
| NB18NIF/NB18PIF Natural Blaze burner available in 18" and 24" sizes, these burners come in both natural and propane gas. Featuring the IntelliFire Plus with ODS system for five-step flame adjustment, these burners come complete with cast iron grate, volcanic rock, rock wool, on/off switch, touch button command center, electronic ignition and RC300 thermostat remote control. FEATURES - Fuel Type: NG or LP
- Ignition Type: IPI Control
- Burner Only: 18" Natural Blaze Burner
- For use with firebox
Use with 18" Beachcomber Burncrete refractory 6-piece log set, 18" Berkley Oak fiber ceramic 7-piece log set, 18" Berkley Oak refractory 7-piece log set, 18" Highland Oak Refractory 7-piece log set and 18" Stony Creek refractory 11-piece log set. * Please Note: This is for the gas burner only. No logs are included. |
 | PH18PM/PH18NM/PH18PV/PH18NV Monessen popular PH burner raise for dancing flames. Enjoy dancing, realistic flames with the PH burner. The available PH burner produces a fine yellow flame, and the cast iron grating adds a decorative touch. These log sets feature burners with flames in the front and rear, adding warmth and ambience to any room. FEATURES - Fuel Type: NG or LP
- Ignition Type: Manual Control/Millivolt Control
- Burner Only: 18" PH Burner
- For use with firebox
- Use with 18" Mountain Cedar 6-piece Multi-Log Set
* Please Note: This is for the gas burner only. No logs are included. |
Logs (Required to Complete)
Click to see Logs
 | EYF18-R - 18" Mountain Oak Design
- 4 Piece Refractory Log Set
- For use with 18" EYF burner system
- Refractory cement for fine detailing
- Detailed log design
- Includes volcanic rock
- Available in millivolt and manual control
|
 | CR18-H - 18" Charisma design
- 8 Piece burncrete hybrid log set
- For use with 18" Millivolt Control Glow Getter Burner
- For use with 18" IntelliFire Plus Glow Getter Burner with Remote Control
- New Burncrete® hybrid technology includes provides sharp detail and glowing logs
- Exclusive Glow Getter burner technology boasts dancing multi-peak flames and a glowing, active, ember bed
- Whole log with natural bark detail eight-piece log stack – so authentic its indistinguishable from the real thing
- Hand-painted details create a true log look
- Gorgeous colors and beautiful detail complement any décor
- Available in IntelliFire Plus® or millivolt control
- No chimney or venting required makes installation fast, easy, and affordable
- Includes volcanic rock, rock wool embers and ember bed log switch
|
 | DY18-H - 18" Dynamo design
- 7 Piece burncrete hybrid log set
- For use with 18" Millivolt Control Glow Getter Burner
- For use with 18" IntelliFire Plus Glow Getter Burner with Remote Control
- Burncrete® hybrid technology includes provides sharp detail and glowing logs
- Exclusive Glow Getter burner technology boasts dancing multi-peak flames and a glowing, active, ember bed
- Stout, authentic-looking log with natural bark detail in a robust seven-piece log stack
- Hand-painted details create a true log look
- Gorgeous colors and beautiful detail complement any décor
- Available in IntelliFire Plus® or millivolt control
- No chimney or venting required makes installation fast, easy, and affordable
- Includes volcanic rock, rock wool embers and ember bed log switch
|
 | MX18-H - 18" Moxie design
- 8 Piece burncrete hybrid log set
- For use with 18" Millivolt Control Glow Getter Burner
- For use with 18" IntelliFire Plus Glow Getter Burner with Remote Control
- New Burncrete® hybrid technology includes provides sharp detail and glowing logs
- Exclusive Glow Getter burner technology boasts dancing multi-peak flames and a glowing, active, ember bed
- Split oak style nine-piece log stack looks like you chopped it yourself
- Hand-painted details create the authentic look
- Gorgeous colors and beautiful detail complement any décor
- Available in IntelliFire Plus® or millivolt control
- No chimney or venting required makes installation fast, easy, and affordable
- Includes volcanic rock, rock wool embers and ember bed log switch
|
 | BC18-R - 18" Beachcomber design
- 6 Piece buncrete refractory log set
- For use with 18" Millivolt Control Natural Blaze Burner
- For use with 18" IntelliFire Plus Natural Blaze Burner with Remote Control
- EXCLUSIVE Natural Blaze Technology
- Available with the IntelliFire Plus® system or millivolt control
- Cast iron grate standard with burner
- Volcanic rock, rock wool embers and ember bed log switch
|
 | BO18-F - 18" Berkley oak design
- 7 Piece ceramic fiber log set
- For use with 18" Millivolt Control Natural Blaze Burner
- For use with 18" IntelliFire Plus Natural Blaze Burner with Remote Control
- EXCLUSIVE Natural Blaze Technology
- Available with the IntelliFire Plus® system or millivolt control
- Low profile design for a true glowing ember look
- Refractory cement for fine detailing or ceramic fiber to reflect more heat
- Includes volcanic rock and rock wool embers
|
 | BO18-R - 18" Berkley oak design
- 7 Piece refractory log set
- For use with 18" Millivolt Control Natural Blaze Burner
- For use with 18" IntelliFire Plus Natural Blaze Burner with Remote Control
- EXCLUSIVE Natural Blaze Technology
- Available with the IntelliFire Plus® system or millivolt control
- Cast iron grate standard with burner
- Volcanic rock, rock wool embers and ember bed log switch
|
 | HO18-R - 18" Highland oak design
- 7 Piece refractory log set
- For use with 18" Millivolt Control Natural Blaze Burner
- For use with 18" IntelliFire Plus Natural Blaze Burner with Remote Control
- EXCLUSIVE Natural Blaze Technology
- Available with the IntelliFire Plus® system or millivolt control
- Cast iron grate standard with burner
- Volcanic rock, rock wool embers and ember bed log switch
|
 | SC18-R - 18" Stoney creek design
- 11 Piece refractory log set
- For use with 18" Millivolt Control Natural Blaze Burner
- For use with 18" IntelliFire Plus Natural Blaze Burner with Remote Control
- EXCLUSIVE Natural Blaze Technology
- Available with the IntelliFire Plus® system or millivolt control
- Cast iron grate standard with burner
- Volcanic rock, rock wool embers and ember bed log switch
|
 | PH18R - 18" Mountain cedar Design
- 6 Piece Refractory Log Set
- For use with 18" PH burner system
- Refractory cement for fine detailing
- Available in millivolt and manual control
- Includes volcanic rock
|
Log Accessories
Click to see Optional Log Accessories
 | SC18EK The Monessen 18" Stony Creek Vent Free Gas Log Set features the choice to add the two top log enhancement kit. This enhancement kit is priced reasonably and adds two additional logs to the very top of the stack to make a fuller look that goes well with larger fireplaces. Each log has been made with the utmost take care of a realistic, authentic look that you simply won't find anywhere else. - Size: 18 Inch
- Unique, hand-painted finish
- Designed for use with 18 Inch stony creek gas log sets
|
Mantels
Click to see Optional Mantels
 | A KENWOOD FLUSH MANTEL (AFKDMPA/AFKDAUA)
- Signature Series
- Transitional Style
- Standard wooden flush mantel
- Enhance your Whole Hearth Design
- Available in paint-grade primed MDF or unfinished maple
A SIZE TECHNICAL SPECIFICATIONS
(A) - Opening Width - 44"
(B) - Outside Width - 60"
(C) - Opening Height - 36 1/2"
(D) - Outside Height - 48 3/4"
(E) - Top Width - 69 1/2"
(F) - Leg Width - 8"
(G) - Shelf Depth - 9 3/4"
(H) - Leg Depth - 5" * Please Note: This is the Mantel only. |
 | A WESCOTT FLUSH WOOD MANTEL (AFWTMPA) - Select Series
- Transitional Style
- Standard wooden flush mantel
- Enhance your Whole Hearth Design
- Available in paint-grade primed MDF
A SIZE TECHNICAL SPECIFICATIONS
(A) - Opening Width - 44"
(B) - Outside Width - 57"
(C) - Opening Height - 36 1/2"
(D) - Outside Height - 49 3/4"
(E) - Top Width - 63 3/4"
(F) - Leg Width - 6"
(G) - Shelf Depth - 7 1/2"
(H) - Leg Depth - 2 3/4" * Please Note: This is the Mantel only. |
 | A RICHLAND FLUSH WOOD MANTEL (AFRDMPA) - Select Series
- Transitional Style
- Standard wooden flush mantel
- Enhance your Whole Hearth Design
- Available in paint-grade primed MDF
A SIZE TECHNICAL SPECIFICATIONS
(A) - Opening Width - 44"
(B) - Outside Width - 56"
(C) - Opening Height - 36 1/2"
(D) - Outside Height - 48"
(E) - Top Width - 64"
(F) - Leg Width - 5 1/2"
(G) - Shelf Depth - 7 1/2"
(H) - Leg Depth - 2 3/4" * Please Note: This is the Mantel only. |
| RS RICHLAND REDUCED SHELF FLUSH WOOD MANTEL (AFRDMPARS) - Select Series
- Transitional Style
- Reduced shelf width
- Standard wooden flush mantel
- Enhance your Whole Hearth Design
- Available in paint-grade primed MDF
RS SIZE TECHNICAL SPECIFICATIONS
(A) - Opening Width - 44"
(B) - Outside Width - 55"
(C) - Opening Height - 36 1/2"
(D) - Outside Height - 48"
(E) - Top Width - 60"
(F) - Leg Width - 5"
(G) - Shelf Depth - 7 1/2"
(H) - Leg Depth - 2 3/4" * Please Note: This is the Mantel only. |
 | A ROXBOROUGH FLUSH WOOD MANTEL (AFRHMPA/AFRHAUA) - Signature Series
- Traditional Style
- Standard wooden flush mantel
- Enhance your Whole Hearth Design
- Available in paint-grade primed MDF or unfinished maple
A SIZE TECHNICAL SPECIFICATIONS
(A) - Opening Width - 44"
(B) - Outside Width - 56"
(C) - Opening Height - 36 1/2"
(D) - Outside Height - 49"
(E) - Top Width - 64"
(F) - Leg Width - 4"
(G) - Shelf Depth - 7 1/4"
(H) - Leg Depth - 3" * Please Note: This is the Mantel only. |
Mantel Base
Click to see Optional Mantel Base
 | A KENWOOD FLUSH MANTEL BASE (HTKDMPA/HTKDAUA) Flush wood mantels and base are a great value that create a focal point for all rooms. Each is delivered ready to finish with your choice of paint or stain to perfectly match the personal style and décor of your home. - Signature Series
- Transitional Style
- Standard wooden flush mantel base
- Enhance your Whole Hearth Design
- Available in paint-grade primed MDF or unfinished maple
A TECHNICAL SPECIFICATIONS
(A) - Top Width - 62-3/4"
(B) - Bottom Width - 63-3/4"
(C) - Height - 10"
(D) - Top Depth - 11-1/4"
(E) - Bottom Depth - 11-3/4" |
Accessories
Click to see Optional Fronts Door
 | DLR32B - Color: Black
- Elegant black finish
- Size: 32/36/42 Inches
- Completes the front of your firebox
- Provides a decorative accent to your firebox
- Specifically designed for Monessen Lo-Rider Clean Face Firebox
Compatible with the following Monessen appliances - 32", 36", 42" Lo-Rider LCUF Series Vent-Free Circulating Firebox
- 36" Cabinet Doors with Screen (2 required if desired on two sides)
|
Click to see Optional Light Kit
 | MONAL - Type: Light Kit
- Accessory/Replacement Part
- Provides accent lighting for fireplace
- For use with 32/36/42 inch Lo-Rider Clean Face Firebox
Compatible with the following Monessen appliances - 32", 36", 42" Lo-Rider (LCUF) Series Vent Free Firebox.
- 36" Lo-Rider See-Through Vent Free Firebox.
|
Click to see Optional Brick Panels
 | FBPREMT32 - Color: Brown
- Size: 32/36/42 Inches
- Comes with side and back refractory panels
- Aesthetically pleasing premium traditional design
- Designed specifically for Lo-Rider Clean Face Firebox
Compatible with the following Monessen appliances -
32", 36", 42" Lo-Rider Series Vent Free Firebox. |
 | FBPREMH32 - Color: Brown
- Size: 32/36/42 Inches
- Comes with side and back refractory panels
- Aesthetically pleasing premium herringbone design
- Designed specifically for Lo-Rider Clean Face Firebox
Compatible with the following Monessen appliances - 32", 36", 42" Lo-Rider Series Vent Free Firebox.
|
Click to see Optional Glass Kit
 | BMGLR32 - Color: Black
- Optional accessory
- Sides and back panels
- Contemporary look and feel
- Magnifies and reflects the appearance of the flames
- Specifically designed for Monessen Lo-Rider Clean Face Firebox
Compatible with the following Monessen appliances - 32", 36", 42" Lo-Rider (LCUF) Series Vent Free Firebox.
- 36" Lo-Rider See-Through Vent Free Firebox.
|
Click to see Optional Air Blower
 | BLOTMC - Powerful 135 cfm fan
- Variable thermostat control
- Works with multiple Monessen gas fireplaces
- Improves fireplace and firebox heat distribution
- Heat activated- Comes on when the fireside gets hot and pops when the fireside cools down
- Includes a variable speed control that permits you to show the blower on and off also as higher or lower
Compatible with the following Monessen appliances - Exacta BUF Vent Free Circulating Firebox
- GRUF and GCUF Universal Vent-Free Circulating Fireboxes
- Lo-Rider LCUF Vent-Free Fireboxes
- Magnum MCUF Vent-Free Fireboxes
- Aria/VFF Vent-Free Gas Fireplaces
- DFS Vent-Free Gas Fireplaces
|
Click to see Optional Venting
 | ID4 - Size: 4 Inch
- 2 lbs. total
- For outside air
- Insulated flex duct
- Includes two 42 inch sections
Compatible with the following Monessen appliances - 32", 36", 42" Lo-Rider (LCUF) Series Vent Free Firebox.
- 36" Lo-Rider See-Through Vent Free Firebox.
|
 | AK22 - Weighs 1 pound
- Flex not included
- Best used in air-tight rooms
Compatible with the following Monessen appliances - BUF Exacta Vent-Free Circulating Firebox
- LCUF Lo-Rider Clean Face Firebox
- Lo-Rider See-Through Clean Face Firebox
|
 | UD4 - Weighs 3 pound
- 4" (100mm) in diameter
- Uninsulated flex duct for outside air
- Includes two 42" (1065mm) sections
Compatible with the following Monessen appliances - BUF Exacta Vent-Free Circulating Firebox
- LCUF Lo-Rider Clean Face Firebox
- Lo-Rider See-Through Clean Face Firebox
|
Click to see Optional Termination Kit
 | AK4 - Fits various Monessen gas fireplaces
- Allows the fireplace to use outside air for combustion when piped to the outside of the home
Compatible with the following Monessen appliances - GCUF/GRUF Series Vent Free Firebox
- LCUF Lo-Rider Series Firebox
- Lo-Rider See-Through Clean Face Firebox
- Magnum Series Vent Free Firebox
- Aria/VFF Series Fireplace
|
You Can Also Buy Available Mantel Shelf with This Product
Fillmore Mantel Shelf
Gifford Mantel Shelf
Ozark Mantel Shelf
You Can Also Buy Available Shelf Corbels with This Product
Shelf Corbels (Set of Two)
You Can Also Buy Available Marble, Granite & Slate with This Product
Arctic Gray Marble Set
Beige Marble Set
Konya Marble Set
Marron Brown Marble Set
Absolute Black Granite Set
Caledonia Granite Set
Steel Gray Granite Set
Venetian Granite Set
Wheatfield Granite Set
Slate Legs
Slate Header
Slate Hearth
DOWNLOADS
