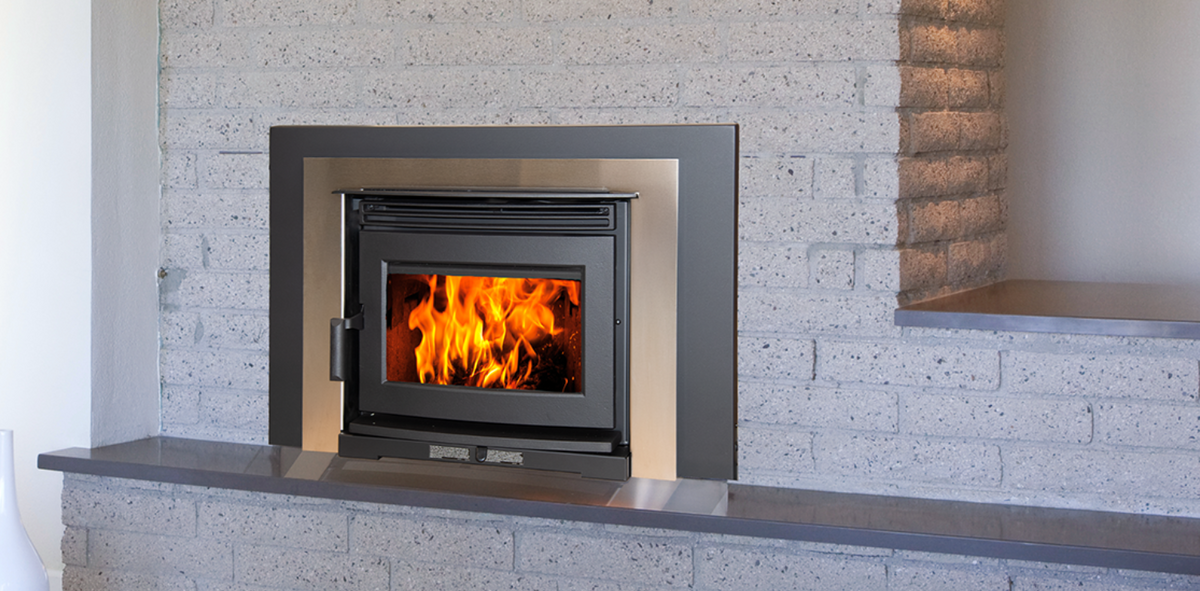

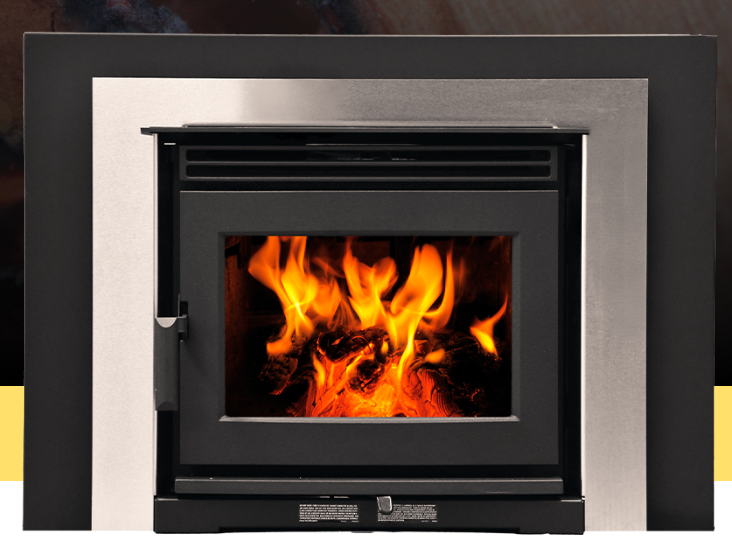

Make your smaller existing masonry fireplace a significant source of wood heat with the contemporary style of the Neo 1.6 Insert LE2.
Built with heavy-gauge steel, this wood insert features our industry-leading secondary combustion system with ACMS, our unique high capacity stainless steel baffle and advanced heat exchanger technology for exceptional clean-burning, efficient performance.
Features
Technical Data
56,000 BTU Cord Wood
23,200 BTU EPA Test Fuel
Efficiency (HHV) 75%
Emissions 1.6 gm/hr
Log Size (recommended) 16″
Log Size (max) 17 “
Firebox Size 1.4 cu.ft.
Glass Viewing Area 147 sq.in.
Standard Features
ACMS (Advanced Combustion
Management System)
304 Stainless Steel Baffle, Tubes* insulation
cover, rails and flame shield
High-tech multi-port combustion air injection system
Removable Flue Collar
Knife edge door seal
Rich metallic black finish
Integrated Heat Exchanger
6” flue outlet
East-West loading
2×80 cfm temperature actuated variable speed
blowers
Design Options
