Overview

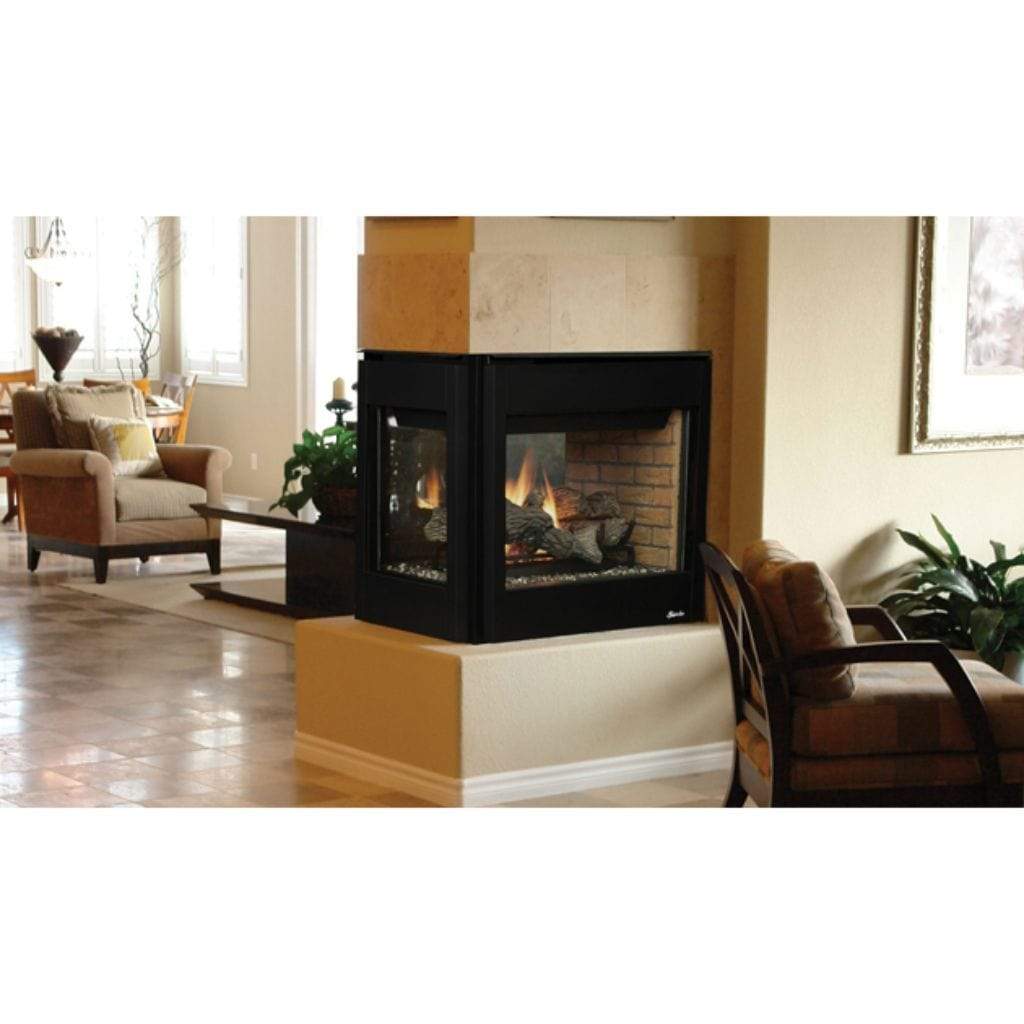

The bedroom, bath, study or den. Virtually anywhere you can imagine a fireplace, the DRT3500 Multi-View Series gas fireplace fits right in without taking up additional floor space. Its compact design is the smallest footprint in the industry, yet it offers the largest viewing area and flame presentation for its size. Enjoy the beauty of fire from multiple rooms.
Features
- Available in 35" clean-faced see-through and peninsula models
- Combo top/rear flue configuration for all models
- Millivolt or energy-saving electronic ignition
- Outstanding heating efficiency for increased comfort and lower operating costs
- Detailed ceramic fiber “aged oak” log set with 1/2" heavy-duty grate
- Black painted interior (optional ceramic fiber liner available)
- Durable textured powder coat finish
- Optional blower and remote control available for all models
- 20 Year Limited Warranty
This fireplace meets all 2015 ANSI barrier requirements.
Specifications
| Brand | Superior Fireplaces
|
Catalog Number
| F1410
|
Model Number
| DRT35PFDEN
|
| Venting Type | Direct Vent |
| Framing Width | 38 3/4" |
| Framing Height | 37 3/16" |
| Framing Depth | 20 3/4" |
| BTU | 22,000 - 30,000 |
| Style | Traditional |
| View Style | Peninsula |
| Controls | Optional Remote |
| Rating | ANSI Z21.88 |
| Warranty | 20 Year Limited Warranty |
Options
Interior Liner Options
| Black Painted Interior | Buff Brick Liner
|
Blower Kits
Click to see Blower Kit options
| | Single-Speed Fireplace Blower - Includes Heat Shield Bracket
- Cord Set with 3-prong Power Cord - 36 Inch
- Dimensions: 12.94 W x 3.6 H x 4.27 D
- The motor is equipped with Thermal Safety Switch
- CFM Rating of 135
- Anti-Vibration Impellers and Vortex Regulation Tabs to provide a steady Airflow
- Increases Heating Potential of your gas fireplace by circulating warm air into the room
|
|
 |
Variable Speed Blower with Wall Switch - Includes Heat Shield Bracket
- Wall Mounted Variable Speed Control
- Cord Set with 3-prong Power Cord - 36 Inch
- Dimensions: 12.94 W x 3.6 H x 4.27 D
- The motor is equipped with Thermal Safety Switch
- CFM Rating of 135
- Anti-Vibration Impellers and Vortex Regulation Tabs to provide a steady Airflow
- Increases thermal efficiency of your gas fireplace
|
|
 |
Variable Speed Blower with Thermostatic Snap Switch
- Variable Speed Control
- Therm-O-Disc - Automatically turns the blower on at a 120F and turns the blower off at 90F
- Foam Dampening Pad and Velcro Strips
- Heat Shield Bracket
- Conversion Packet
- Cord Set with 3-prong Power Cord
- Dimensions: 12.94 W x 3.6 H x 4.27 D
- The motor is equipped with Thermal Safety Switch
- CFM Rating: 135
- Increases Heating Potential of your gas fireplace by circulating warm air into the room
|
Remote Controls
Click to see Remote Control options
| | Touch Screen Remote Control with Thermostatic and On/Off Controls - Backlit LCD Display
- The receiver can be wall-mounted or placed on or near the hearth
- Wall mount for transmitter included
- Thermostatic or Manual On/Off controls
- Child-proof Lockout
- 2 Pre-set programs - Weekdays and Weekends
- Flame Icon
- Low Battery Indicator
- 4 AA Batteries Included
|
| | LCD Remote Control with Thermostatic and On/Off Controls - LCD Display
- Up to 9 Hour Count Down Timer
- Includes Batteries
- Child Lock
- Low Battery Indicator
- The receiver may be Wall Mounted or Placed in a Valve Compartment
|
 | Dual-Button Remote Control with Timer and On/Off Controls - LCD Display
- Displays Room Temperature
- The receiver can be Wall-Mounted into a single gang switch box
- On/Off and Timer Function
- Flame Icon
- Low Battery Indicator
- Batteries Included
|
| | On/Off Remote Control and Receiver with White Wall Plate for Millivolt Systems - On/off Remote and Receiver
- White Wall plate included
- Product Weight: 2 pounds
|
 | On/Off Wall Switch with Countdown Timer - Wall Switch Timer with 30, 60, and 120-minute settings
- Reliable wound spring control dial
- Fits into a standard single gang switch box
- Fits most millivolt and IPI fireplace systems
|
| | On/Off Wall Switch with Thermostat - Thermostatic controls allow the fireplace to cycle to the desired temperature
- Fits into a standard single gang switch box
- Manual or thermostatic operation
- Fits most millivolt and IPI fireplace systems
|
Optional Accessories
Click to see Optional Accessories
| On/Off Rocker Switch Kit for Millivolt Systems
- Simple to Operate On/Off Rocker Switch
- Installs directly into the Gas Valve Mounting Bracket
- For use with Millivolt Gas Valve-Equipped Fireplaces Only
|
| Glowing Embers Fire Media
- Bag contains 5 grams of embers
- Does not deteriorate when burned
- Adds a classic look to your gas fireplace
- Comes in standard and platinum appearances
- Facilitates gas combustion for brighter embers and increased radiant heat output
|
| Decorative Volcanic Stone Fireplace Media
- Color: Assorted
- Decorative stone
- Enhances the appearance of fireplace media
|
| Firebox Interior/Powder-Coat Exterior Touch-Up Paint
- Color: Black/White
- For use with black liners/powder-coated fireplaces
- Consists of flame-resistant paint
- Paints over a stained firebox interior/stained powder-coated exterior
|
| DRT35PF Electronic / Millivolt - Natural Gas to Propane / Propane to Natural Gas Conversion Kit - Complete conversion kit for Superior DRT35PFDEN model
- Includes burner orifice, pilot orifice, and LP regulator
- Ideal for fuel conversion after unit installation
- Includes conversion instructions
|
