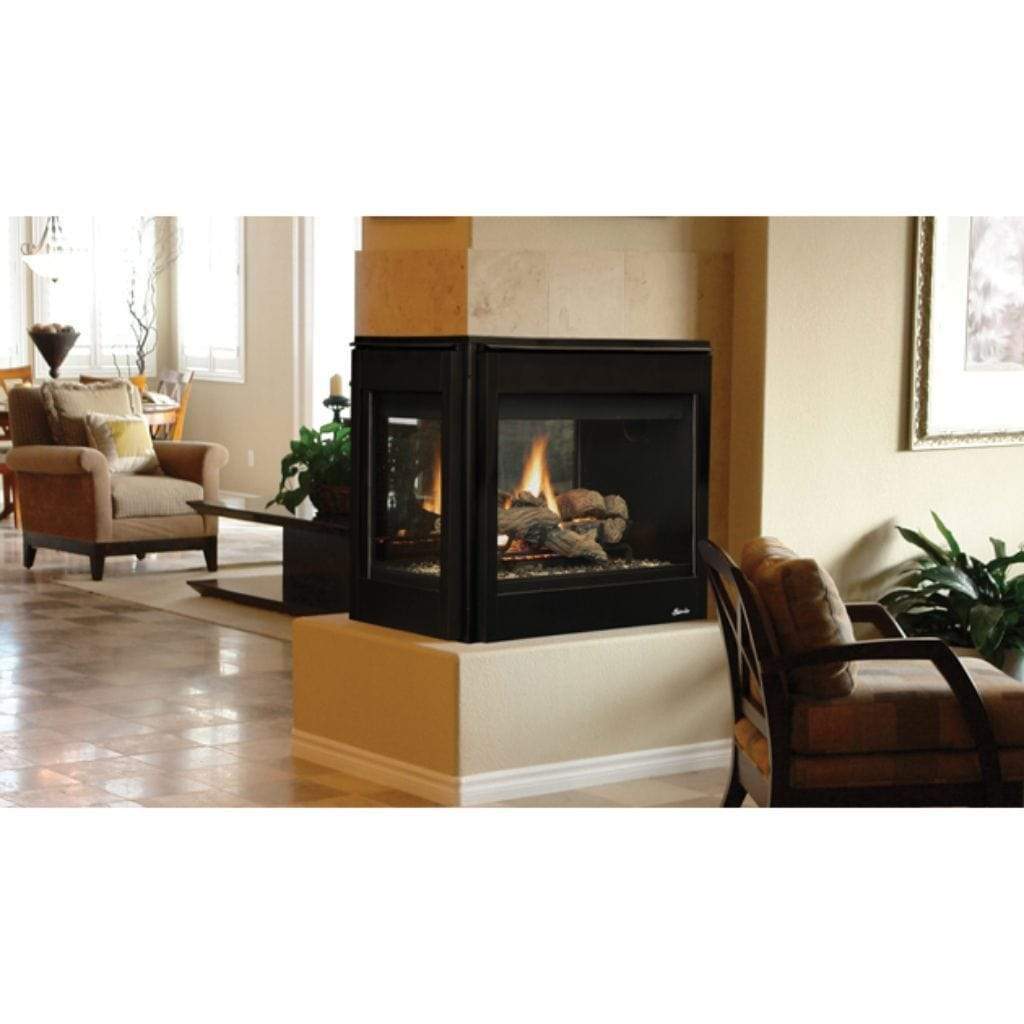

Superior 40" DRT40PF Traditional Direct Vent Peninsula Gas Fireplace

Superior 40" DRT40PF Traditional Direct Vent Peninsula Gas Fireplace

DRT40PFDEN

$5,649.00 USD
Ignition Type
Fuel Type


Overview

The DRT4000 Series gas-burning, the direct-vent fireplace offers three multi-view configurations that serve as a primary focal point for multiple rooms. With an exceptional glass viewing area and the intense flame presentation of a powerful pan burner, the DRT4000 Multi-View Series creates a beautiful, natural-looking fire that enhances the comfort and elegance of several rooms.

Features

  • Listed to ANSI Z21.88 Gas Fireplace Heater
  • Available in 40” clean-faced corner, peninsula & see-through models
  • Combo top/rear flue configuration
  • Top flue configuration
  • Millivolt or energy-saving electronic ignition
  • Pre-wired for wall switch
  • Outstanding heating efficiency for increased comfort and lower operating costs
  • Detailed ceramic fiber “aged oak” log set with 1/2" heavy-duty grate
  • Black painted interior (optional ceramic fiber liner available)
  • Durable textured powder coat finish
  • Optional blower and remote control available for all models
  • Uses IHP SV 4-1/2" x 7-1/2" Direct Vent Pipe
  • 20 Year Limited Warranty

This fireplace meets all 2015 ANSI barrier requirements.

Specifications

Brand Superior Fireplaces
Catalog Number
 F2275
Model Number
 DRT40PFDEN
Venting Type Direct Vent
Framing Width 43 5/8"
Framing Height 41 1/2"
Framing Depth 22-3/4"
BTU 27,000 - 37,000
Style Traditional
View Style Peninsula
Controls Optional Remote
Rating ANSI Z21.88
Warranty 20 Year Limited Warranty

Options

Interior Liner Options

Black Painted Interior
Buff Rustic Liner


Blower Kits

Click to see Blower Kit options
Single-Speed Fireplace Blower
  • Includes Heat Shield Bracket
  • Cord Set with 3-prong Power Cord - 36 Inch
  • Dimensions: 12.94 W x 3.6 H x 4.27 D
  • The motor is equipped with Thermal Safety Switch
  • CFM Rating of 135
  • Anti-Vibration Impellers and Vortex Regulation Tabs to provide a steady Airflow
  • Increases Heating Potential of your gas fireplace by circulating warm air into the room



Variable Speed Blower with Wall Switch
  • Includes Heat Shield Bracket
  • Wall Mounted Variable Speed Control
  • Cord Set with 3-prong Power Cord - 36 Inch
  • Dimensions: 12.94 W x 3.6 H x 4.27 D
  • The motor is equipped with Thermal Safety Switch
  • CFM Rating of 135
  • Anti-Vibration Impellers and Vortex Regulation Tabs to provide a steady Airflow
  • Increases thermal efficiency of your gas fireplace




Variable Speed Blower with Thermostatic Snap Switch
  • Variable Speed Control
  • Therm-O-Disc - Automatically turns the blower on at a 120F and turns the blower off at 90F
  • Foam Dampening Pad and Velcro Strips
  • Heat Shield Bracket
  • Conversion Packet
  • Cord Set with 3-prong Power Cord
  • Dimensions: 12.94 W x 3.6 H x 4.27 D
  • The motor is equipped with Thermal Safety Switch
  • CFM Rating: 135
  • Increases Heating Potential of your gas fireplace by circulating warm air into the room


Remote Controls

Click to see Remote Control options
Touch Screen Remote Control with Thermostatic and On/Off Controls
  • Backlit LCD Display
  • The receiver can be wall-mounted or placed on or near the hearth
  • Wall mount for transmitter included
  • Thermostatic or Manual On/Off controls
  • Child-proof Lockout
  • 2 Pre-set programs - Weekdays and Weekends
  • Flame Icon
  • Low Battery Indicator
  • 4 AA Batteries Included

LCD Remote Control with Thermostatic and On/Off Controls

  • LCD Display
  • Up to 9 Hour Count Down Timer
  • Includes Batteries
  • Child Lock
  • Low Battery Indicator
  • The receiver may be Wall Mounted or Placed in a Valve Compartment

 Dual-Button Remote Control with Timer and On/Off Controls

  • LCD Display
  • Displays Room Temperature
  • The receiver can be Wall-Mounted into a single gang switch box
  • On/Off and Timer Function
  • Flame Icon
  • Low Battery Indicator
  • Batteries Included

On/Off Remote Control and Receiver with White Wall Plate for Millivolt Systems

  • On/off Remote and Receiver
  • White Wall plate included
  • Product Weight: 2 pounds



On/Off Wall Switch with Countdown Timer

  • Wall Switch Timer with 30, 60, and 120-minute settings
  • Reliable wound spring control dial
  • Fits into a standard single gang switch box
  • Fits most millivolt and IPI fireplace systems
On/Off Wall Switch with Thermostat
  • Thermostatic controls allow the fireplace to cycle to the desired temperature
  • Fits into a standard single gang switch box
  • Manual or thermostatic operation
  • Fits most millivolt and IPI fireplace systems

Optional Accessories

Click to see Optional Accessories
