True North

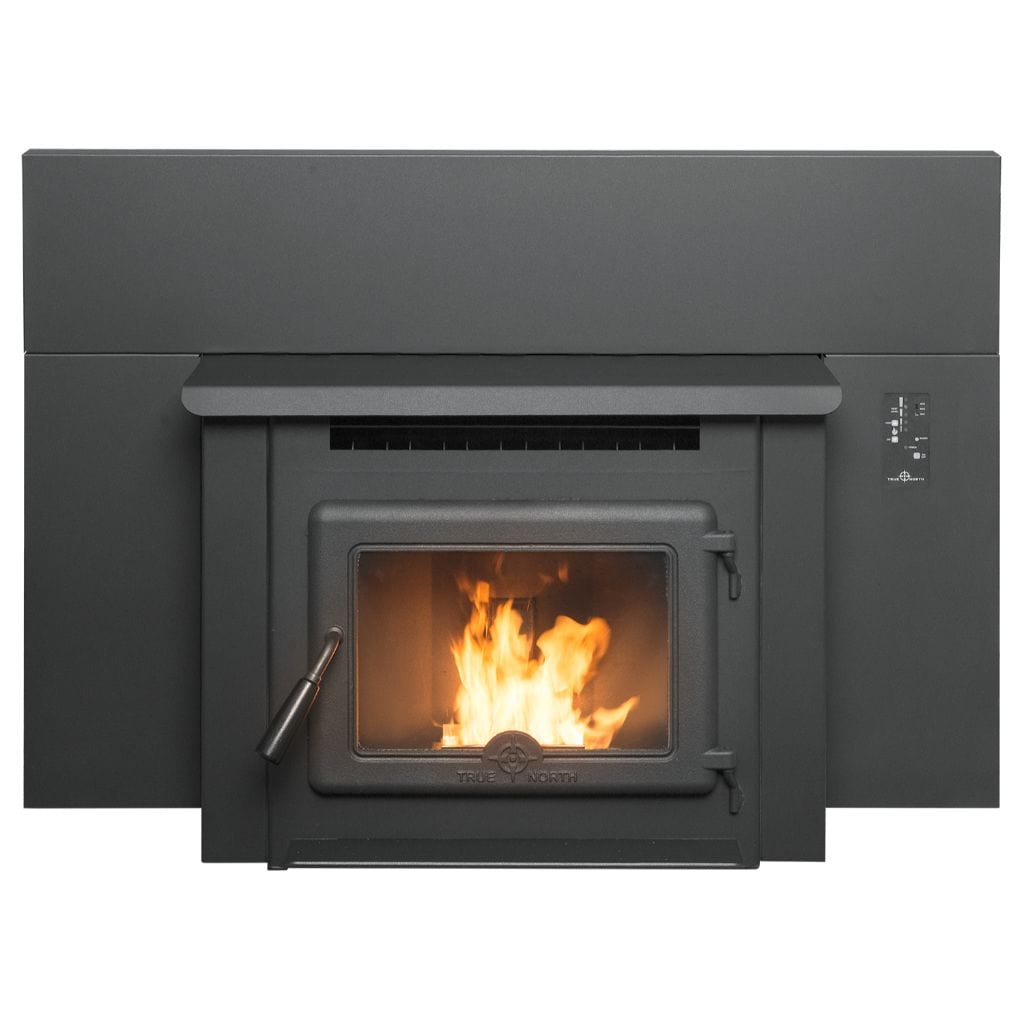

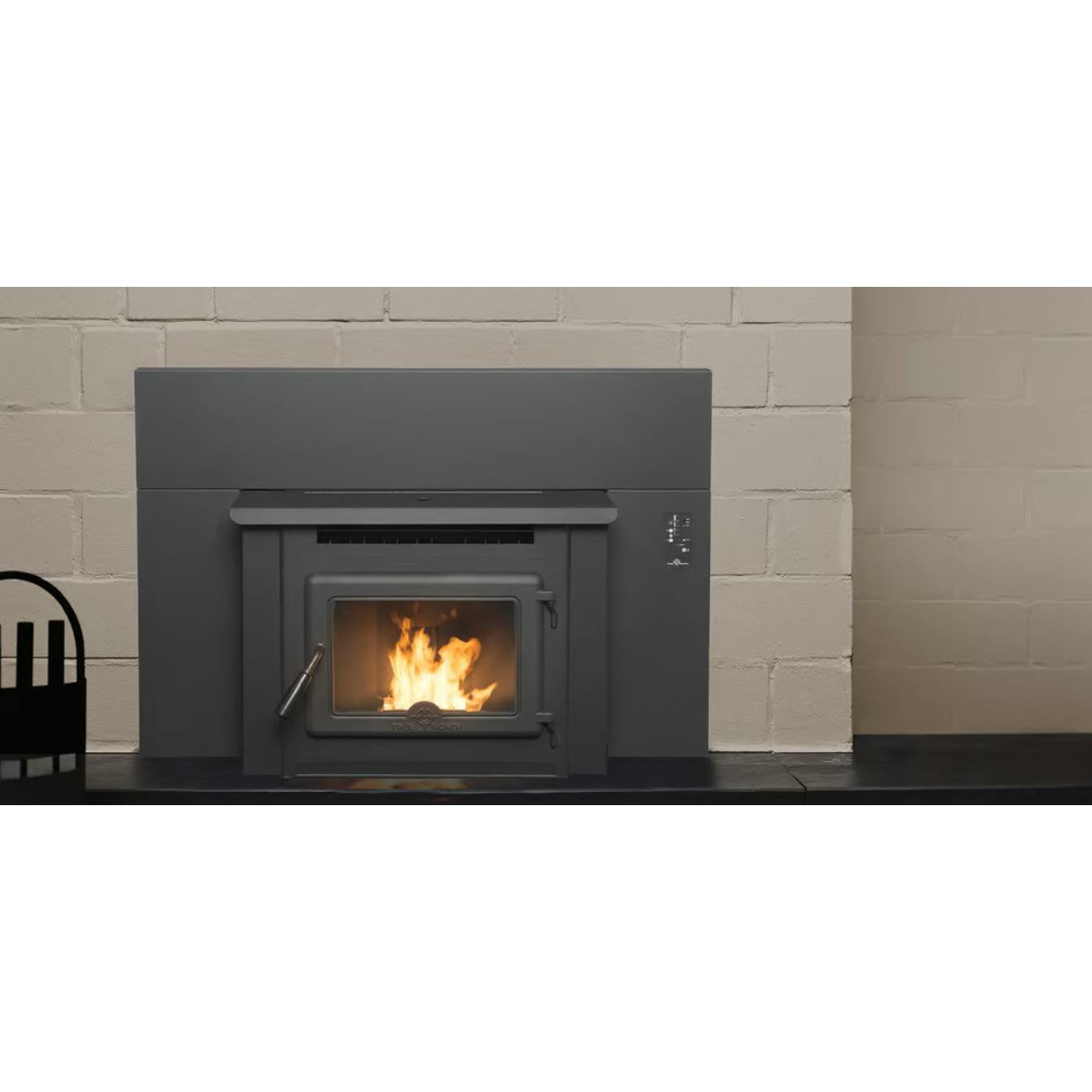

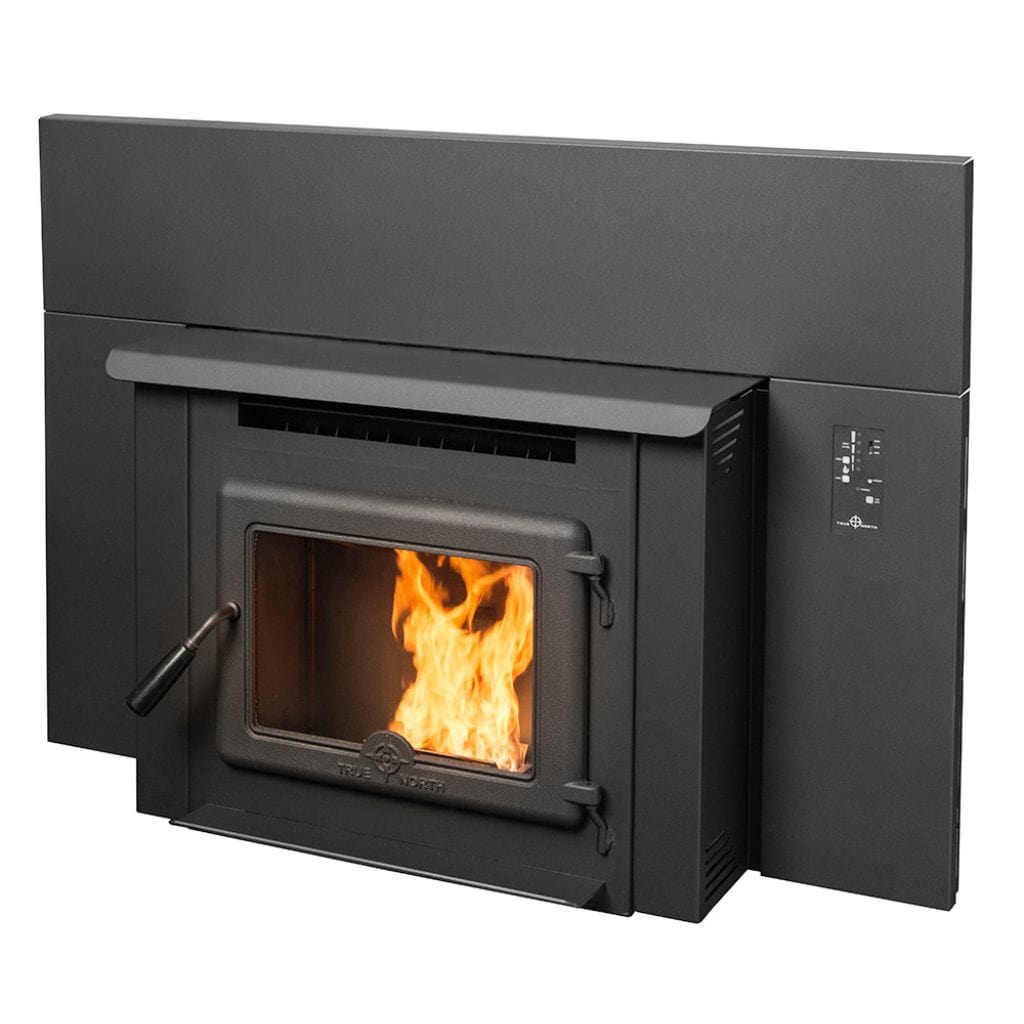

True North TN40 42" Black Vented Pellet Insert, EPA2020 Certified

True North TN40 42" Black Vented Pellet Insert, EPA2020 Certified

33040001

$4,050.00 USD

Simple to operate and easy to maintain, True North pellet inserts are a clean burning, low emissions biofuel heating alternative for your existing fireplace. Engineered for superior performance and durability, the TN40 pellet Insert is constructed from heavy gauge steel and features a wide firepot to deliver rich, full flames.

True North’s new catalytic-free technology is changing the industry – offering lower costs, less maintenance and high efficiency while meeting stringent EPA 2020 environmental standards for the cleanest burn possible.

What's Included

  • TN40 Pellet Insert
  • Standard Surround (29" x 42" x 1.5")

Not Included (Sold Separately)

  • Oversize Surround (32" x 48" x 1.5")
  • Wall Thermostat

Features

  • EPA Certified
  • Limited Warranty
  • Automatic igniter
  • Mobile home approved
  • Easy access digital controls
  • Convenient 5 level heat control
  • Clean glass air-wash technology
  • Self-cleaning stainless steel burn pot liner
  • Optional wall thermostat capable operation
  • Easy opening hopper lid for refuelling with safety shut-off switch
  • Simple 3-mode operation: manual (automatic, hi/low – when equipped with a thermostat)

    Specifications

    Model TN40
    Series A
    Vent Type Vented
    Finish Black
    Installation Type Insert
    Ignition Type Automatic Igniter
    Material Heavy Gauge Steel
    Fuel Type Wood Pellets
    Technical Data
    BTU High 36,000 BTU
    BTU Low 8,000 BTU
    LHV Tested Efficiency 79.6%
    HHV Tested Efficiency 73%
    Emissions 0.69 g/hr.
    Hopper Capacity up to 60 lbs.
    Glass Viewing Area 104 sq.in.
    Certifications ASTM 1509-12, ULC 628S & EPA 2020 Certified
    Electrical Data
    Voltage 120 volts, 60 Hz
    Peak Ampere 4.3 Amps
    Normal Operating Ampere 2.5 Amps

    Dimensions

    Width 42"
    Height 29"



    Warranty

    3 years parts (1 year labour)

    		 Firebox, Castings, Glass (glass for thermal breakage only, not impact)

    1 year parts and labour

    		 Electrical components and switches

    1 year (parts only)

    		 Gaskets, Paint (peeling), Bricks, Baffle tubes, Baffle manifold, Ceramic fibre board
