Warming Trends

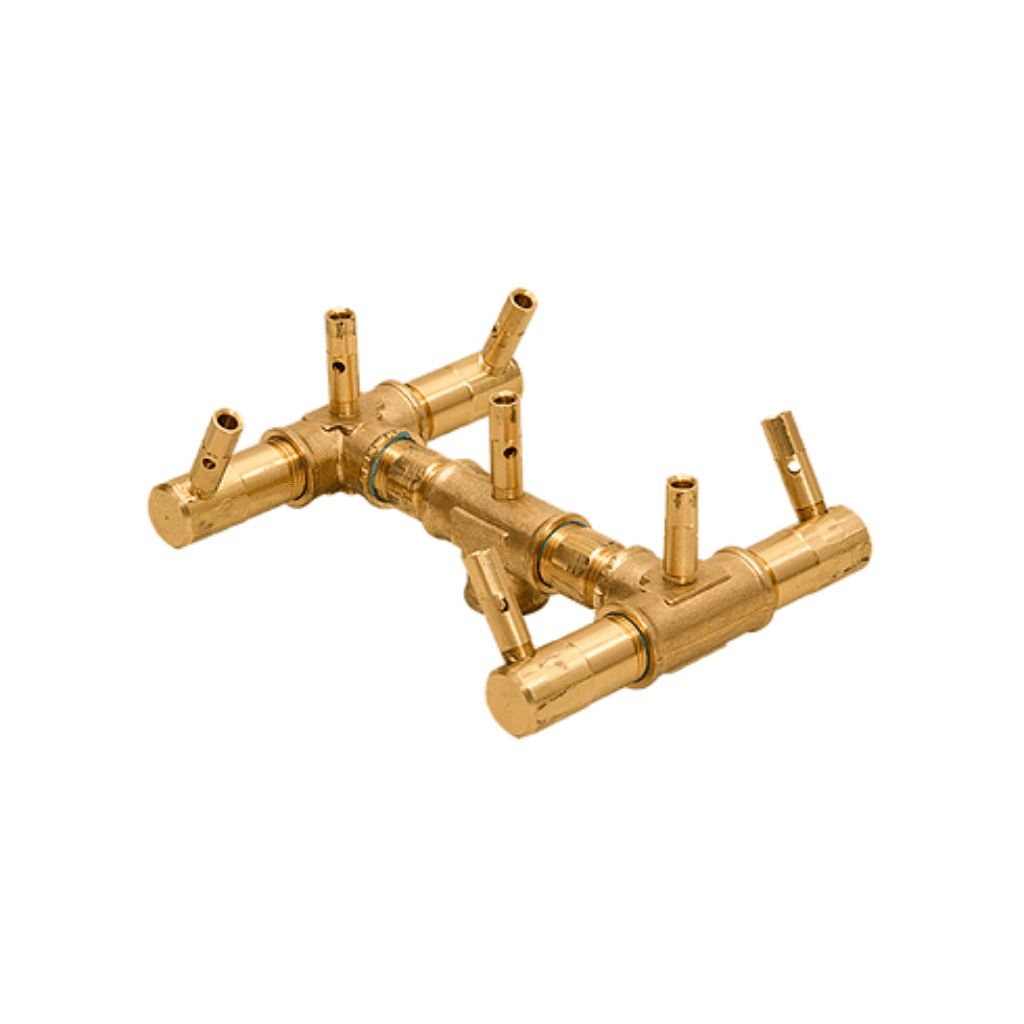

Warming Trends CFB84 Original Crossfire Brass Burner

Warming Trends CFB84 Original Crossfire Brass Burner

CFB84NG

$320.00 USD
Fuel Type

Overview

Innovation. Design. Performance. The Crossfire® Brass Burner by Warming Trends® is a distinctive fire pit burner that utilizes cutting-edge technology to produce a taller, brighter, fuller flame. Leading the industry with a highly engineered, precision product, Warming Trends® is the original and only manufacturer of the Crossfire® Brass Burner.

Our Four Pillars

The patented technology behind our Crossfire® Brass Burner uses a specific air-to-gas ratio at the point of combustion to produce a taller, brighter, fuller flame that resembles a natural, wood-burning fire. We call this the Venturi Effect. Venturi Jet Technology generates high-velocity gas flow and pulls more oxygen into the jet chamber – feeding the combination into the flame at the point of combustion. This causes the gas and oxygen mixture to shoot out of the jet at a high velocity as a super-charged flame, like water out of a fire hose.

Twice the Flame

All parts and pieces of the Crossfire® Burner are made from brass. Unlike other burners made from stainless steel; brass is corrosion resistant and will not rust, which eliminates the need for replacement. We're so confident the product will last, we offer a lifetime warranty on all brass products.


All Brass Components


We stand behind our products and construction. Corrosion-resistant, Sustainable, and rust-proof, brass allows to offer the strongest lifetime warranty in the industry.

**Learn more about Warranty**


Limited Lifetime Warranty

Warming Trends® is proud to manufacture and assemble all our products ins the US., supporting local Colorado commerce as well as parts manufacturers across the U.S. We are truly a Made in the USA products.

Made in the USA


Warming Trends® is Proud to be a member of the following organizations:

Six Steps to Fire

  1. Measures the interior dimension of your firepit.
  2. Choose the corresponding Plate or Pan size. (Pans include a 2'' welded sidewall).
  3. Select Burner based on the appropriate size and fuel type. (Natural Gas or Liquid Propane).
  4. Choose the Ignition System: match lit or fully automatic ignition system.
  5. Add Optional Electronic Accessories: remote control options, dial timers, and emergency stop buttons.
  6. Complete the fire pit with Media: steel or ceramic logs, lava rock, or fire glass.

Features

  • 84,000 BTU
  • Available in Natural Gas and Liquid Propane
  • Original Brass Burner
  • For 18'' Opening or larger
  • Dimension: 7.5'' x 7.5''
  • Optional Flexible Metal Support Collars

Range of Crossfire Brass Burners by Warning Trends

Recommended Parts

Plates

ALPL18C Circular Plate


  • 18'' Circular Plate
  • Ship Weight: 4 lbs
  • Ship Dimensions: 19" x 19" x 7"

ALPL18S Square Plate

  • Optional Accessory Circular Plate For Warming Trends Crossfire Brass Burner
  • 18'' Square Plate

Pans and Covers

ALPAN18C Circular Pan

  • 18” Circular Aluminum Pan
  • Optional Accessory for Crossfire Brass Burner

FPC20C Circular Pan Cover

  • 20'' Circular + 1 Handle
  • For 18'' Opening

ALPAN18C Square Pan

  • 18” Square Aluminum Plate
  • Optional Accessory for Crossfire Brass Burner

FPC20S Square Pan Cover

  • 20'' Square + 1 Handle
  • For 18'' Opening

Flex Line Kit

Flex Line Kit (FK1)
  • For use with any burner 249K BTUs and below.

Kit Includes:

  • (1) 36” L x 3/4” Diameter Flex Line
  • (2) 3/4" Flared Fittings
  • 3/4” Key Valve
  • 3” and 12” Key
  • 1/2” x 2” Nipple
KV12

  • 1/2” Key Valve + 3” Key

Ignition Systems, Electronic Accessories, and Add-Ons

Click to See Recommended Push Button Ignition
PBIK3.0
Push Button Ignition Kit:
  • Spark Igniter Rod and Wire
  • Push Button Battery Operated Control Module
  • 7” x 7” x 5”
  • 2lbs in weight
PBIK3.0MBR
Push Button Ignition Kit and Mounting Bracket:
  • Spark Igniter Rod and Wire
  • Push Button Battery Operated Control Module
  • Mounting Bracket
  • 11" x 11" x 5"
  • 2lbs in weight
PBIK3.0MBRKV12
Push Button Ignition Kit, Mounting Bracket, and 1/2'' Key Valve Kit:
  • Spark Igniter Rod and Wire
  • Push Button Battery Operated Control Module
  • Mounting Bracket
  • 1/2'' Key Valve Kit
  • (2) Pre-mounted 1/2'' Street Elbows
  • 11" x 11" x 5"
  • 2lbs in weight
PBIK3.0MBRKV34
Push Button Ignition Kit, Mounting Bracket, and 3/4'' Key Valve Kit:
  • Spark Igniter Rod and Wire
  • Push Button Battery Operated Control Module
  • Mounting Bracket
  • 3/4'' Flex Line Kit
  • (2) Pre-mounted 3/4'' Street Elbows
  • 11" x 11" x 5"
  • 2lbs in weight
PBIK3.0MBRFK1

Push Button Ignition Kit, Mounting Bracket, and 3/4'' Flex Line Kit

  • Spark Igniter Rod and Wire
  • Push Button Battery Operated Control Module
  • Mounting Bracket
  • 3/4'' Flex Line Kit
  • (2) Pre-Mounted 3/4'' Street Elbows
  • 13" x 13" x 5"
  • 5lbs in weight
PBIK3.0MBRFK2

Push Button Ignition Kit, Mounting Bracket, and 3/4'' Dual Flex Line Kit

  • Spark Igniter Rod and Wire
  • Push Button Battery Operated Control Module
  • Mounting Bracket
  • 3/4'' Dual Flex Line Kit
  • (2) Pre-mounted 3/4'' Street Elbows
  • 15" x 15" x 5"
  • 7lbs in weight

Click to See Recommended 3 Volt Ignition
3VIK-NG | 3VIK-LP
3 Volt Electronic Ignition System:
  • Spark Igniter
  • Control Module
  • D-Cell Battery Pack
  • 3 Volt Gas Valve Ignition Switch
  • 7” x 7” x 5”
  • 2lbs in weight
Click to See Recommended 24 Volt Ignition
24VIKHC-NG | 24VIKHC-LP
24 Volt Spark Ignition supplies up to 400K BTUs. Included step down transformer for use with 24 Volt/110 Volt Supply.
  • Spark igniter
  • Control Module
  • 24 Volt Transformer
  • 13” x 13” x 13”
  • 17lbs in weight
Click to See Recommended 24 Volt Hot Surface Ignition
P24VIKSCCG-NG | P24VIKSCCG-LP
24 Volt Hot Surface Ignition System, Standard Capacity supplies up to 290K BTUs. 24 Volt Hot Surface Ignition High Capacity supplies up to 512 BTUs. Includes step-down transformer for use with 24 Volt/110 Volt Supply.
24 Volt Hot Surface Ignition System, Standard Capacity:
  • Hot Surface Igniter
  • 50VA/24VAC Transformer
  • Maximum Gas Output 290K BTU/hr
  • 13” x 13” x 13”
  • 18lbs in weight
P24VIKHCCG-NG | P24VIKHCCG-LP
24 Volt Hot Surface Ignition System, Standard Capacity supplies up to 290K BTUs. 24 Volt Hot Surface Ignition High Capacity supplies up to 512 BTUs. Includes step-down transformer for use with 24 Volt/110 Volt Supply.

24 Volt Hot Surface Ignition System, High Capacity:

  • Hot Surface Igniter
  • 50VA/24VAC Transformer
  • Maximum Gas Output 780K BTU/hr
  • 13” x 13” x 13”
  • 18lbs in weight
Click to See Recommended Electronic Accessories

3 Volt Remote (3VRC)

On/Off Remote Control for 3 Volt Ignition System

  • 7" x 7" x 5"
  • 4lbs in weight

24 Volt Key Chain Remote (KCRC)

On/Off Wireless Key Chain Remote Control & Plug for 24 Volt Ignition System

  • 11" x 11" x 5"
  • 4lbs in weight

Dial Timers

Available in 2 hours and 12-hour Options for Automatic Shut off, with or without NEMA Rated outdoor enclosure

  • DT2HR 2 Hour Dial Timer
  • DT2HRNB 2 Hour Dial Timer with NEMA Rated Enclosure
  • DT12HR 12 Hour Dial Timer
  • DT12HRNB 12 Hour Dial Timer with NEMA Rated Enclosure

Emergency Stop (EMERSTOP)

Push Button Emergency Stop with yellow shell and weatherproof Lift cover.

  • 11" x 11" x 5"
  • 5lbs in Weight

**Recommended for commercial properties**

Media and Additional Accessories

Click to See Lava Rock

Black Lava Rock

  • 1" - 1 ½" Black Lava Rock
  • 1 bag per 1 cubic foot
Rolled Lava Rock
  • 1" - 2" Gray/Black Rolled Lava
  • 1 bag per 1 cubic foot
Click to See Fireglass

CS AMBER 9

  • Dark Amber in Color
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners
CS AMBER 4

  • Light Amber in Color
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners

BURNT ORANGE

  • Burnt Orange in Color
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners

CA RED

  • Red in Color
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners

MN PURPLE 4

  • Purple in Color
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners

PLUM 7

  • Plum in Color
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners

CO BLUE 5

  • Dark Blue in Color
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners

CO BLUE 3

  • Light Blue in Color
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners

CR GREEN 6

  • Dark Green in Color
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners

CR GREEN 4

  • Light Green in Color
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners

AQUA 2

  • Aqua in Color
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners

GRAY 5

  • Gray in Color
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners

BLACK

  • Black in Color
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners

CLEAR

  • Clear
  • 3/4" Fireglass
  • Priced per Pound
  • Additional Accessory for Brass Burners

"Talk to our Chat Support to calculate the amount of fireglasses you need for your firepit."

Log Set

Click to See Steel Log Set
Steel Log Set (SLS18)
  • Handcrafted to fit 18" Fire Pit
  • Ships Freight


Downloads
